Product Introduction

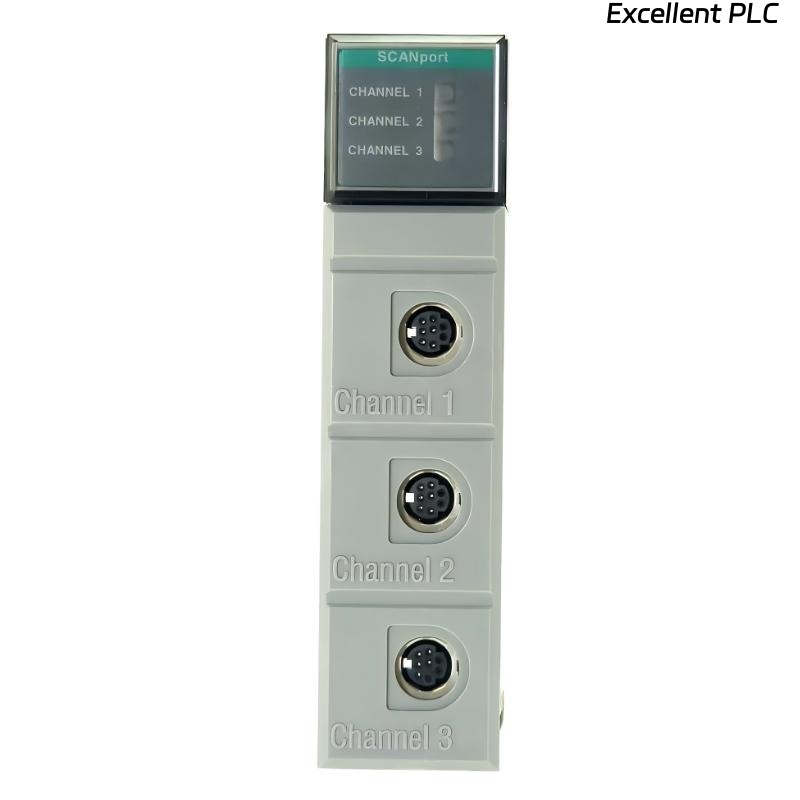

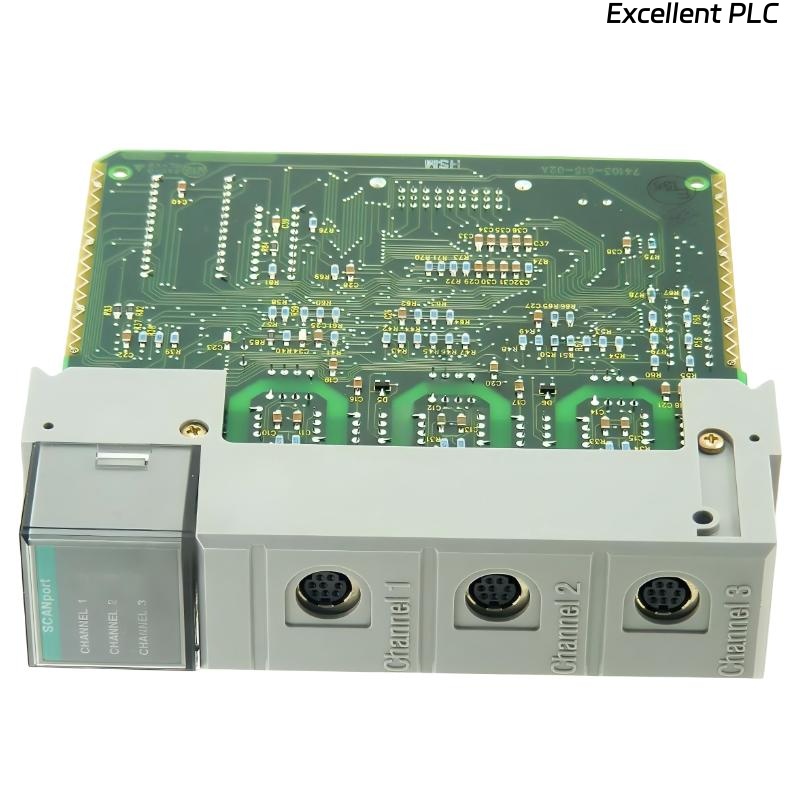

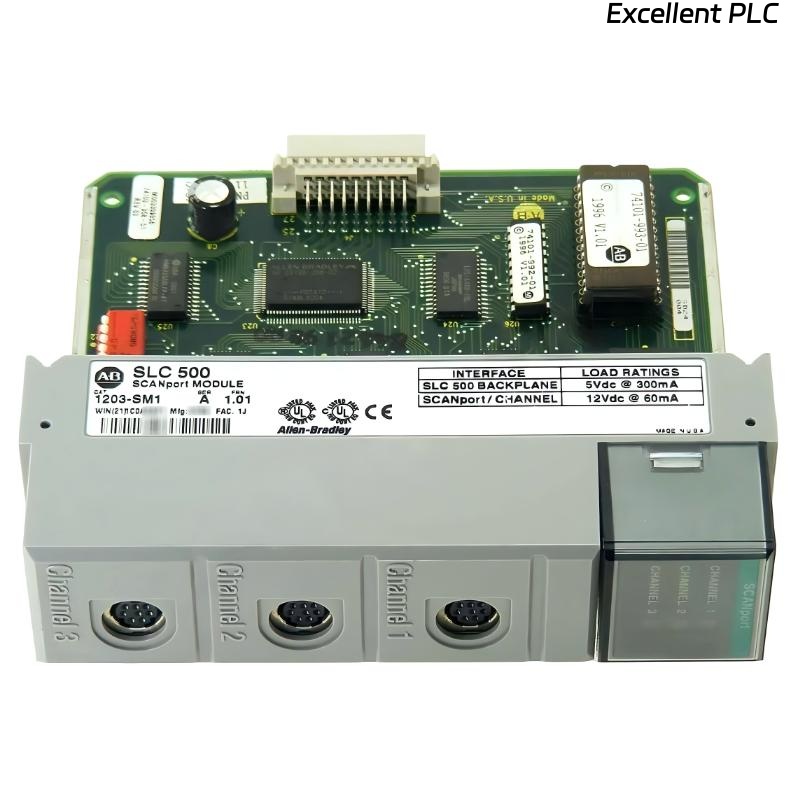

The Allen-Bradley 1203-SM1 SLC to SCANport Communication Module is designed to establish a direct and reliable communication link between SLC controllers and SCANport-enabled devices, such as variable frequency drives and intelligent motor controllers. It acts as a bridge that allows legacy SLC systems to integrate with modern drive technologies without requiring major system redesign.
In many industrial environments, existing SLC platforms remain in operation due to their stability and familiarity. The 1203-SM1 provides a practical way to extend the functionality of these systems by enabling structured communication with SCANport devices. This allows operators and engineers to access operational data, perform monitoring, and implement basic control interactions between systems that would otherwise be difficult to connect.
From an engineering standpoint, the module is valued for its straightforward role. It focuses on communication consistency rather than complexity, ensuring that data transfer between the controller and connected devices remains stable. Its design also supports easy installation within control panels, making it suitable for both upgrades and new system integrations.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1203-SM1 |
| Manufacturer | Allen-Bradley |
| Product Type | SLC to SCANport Communication Module |
| Communication Type | SCANport interface |
| Number of Channels | 3 Channels |
| Supported Systems | SLC control platforms |
| Power Supply | 5 / 12 V DC |
| Current Consumption | 60 / 300 mA |
| Interface Function | Controller-to-device communication |
| Application Role | Data exchange between SLC and drives |
| Installation Method | Panel-mounted module |
| Configuration | System-based setup |
| Operating Design | Continuous industrial communication |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.18 kg |
Applications
• SLC system integration with drives
Enables direct communication between SLC controllers and SCANport-enabled drives, supporting monitoring and control.
• Industrial system upgrades
Provides a cost-effective way to modernize existing systems without replacing legacy controllers.
• Motor control and monitoring
Allows data exchange with motor drives, improving visibility of operating conditions.
• Distributed automation environments
Supports communication across different system layers, enhancing coordination between devices.
• Process control systems
Used where consistent data flow between controller and field devices is required for stable operation.
Advantages
• Legacy system compatibility
Extends the functionality of SLC controllers, allowing them to interact with newer SCANport devices.
• Stable communication performance
Designed to maintain reliable and continuous data transmission in industrial environments.
• Multi-channel capability
Supports multiple communication paths, improving flexibility in system design.
• Simplified integration
Reduces the need for complex gateways, making system upgrades more straightforward.
• Efficient power usage
Operates with low power requirements, suitable for compact control systems.
• Improved system visibility
Enables access to device-level data, helping with monitoring and diagnostics.
