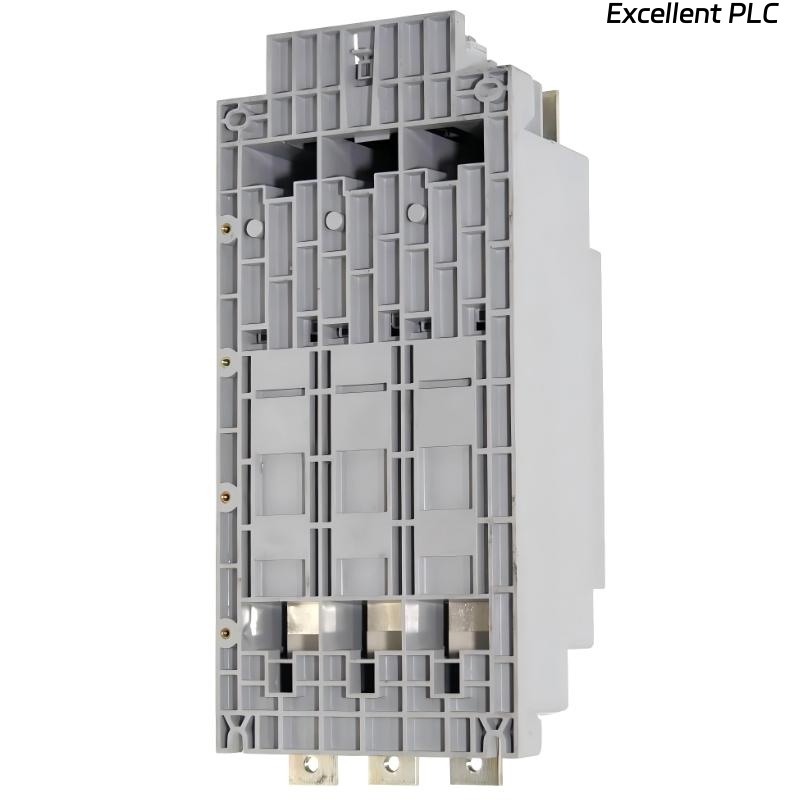

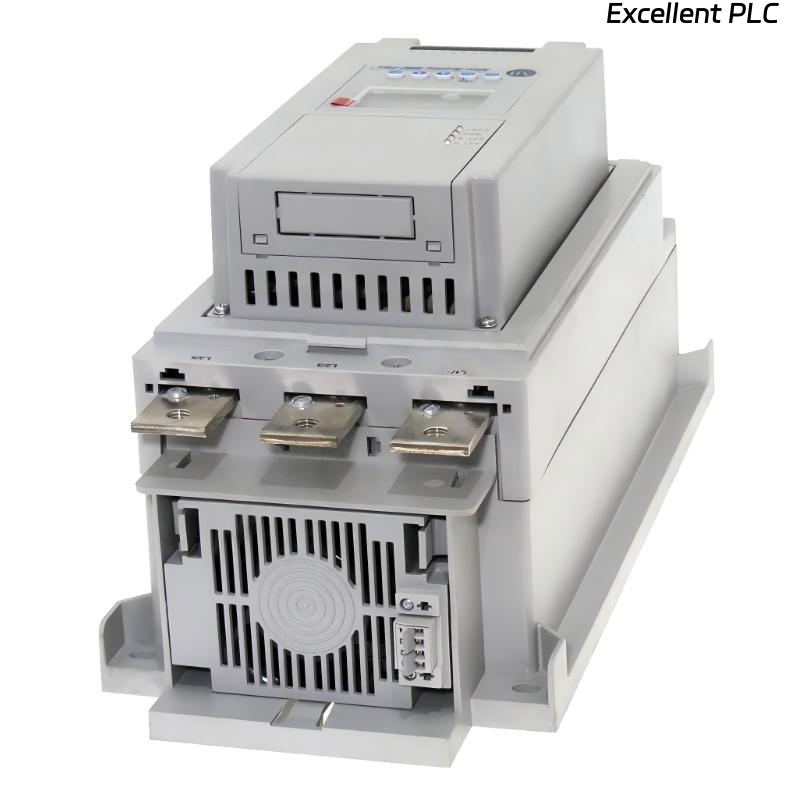

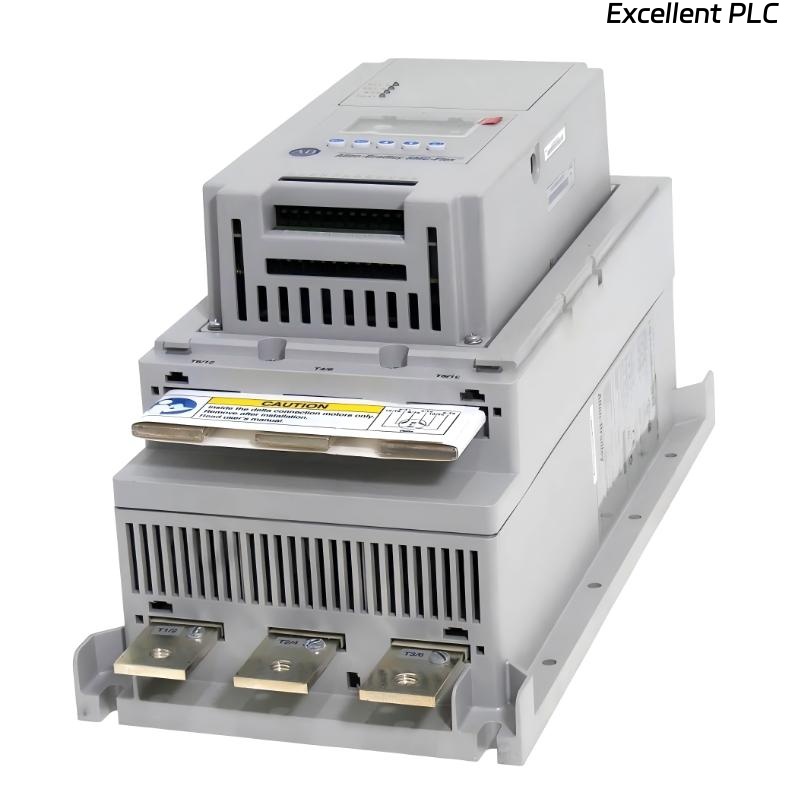

Allen Bradley 150-F135NBD SMC Flex Soft Starter

Product Introduction

The Allen-Bradley 150-F135NBD SMC Flex Soft Starter is a high-performance motor control solution designed for smooth starting and stopping of three-phase induction motors. As part of the SMC Flex series from Rockwell Automation under the Allen-Bradley portfolio, this soft starter is widely recognized for its flexibility, reliability, and advanced motor protection capabilities.

Engineered for medium to large motor applications, the 150-F135NBD reduces mechanical stress and electrical disturbances during motor startup. It provides controlled acceleration and deceleration, significantly improving system lifespan and operational stability. The open enclosure design allows integration into customized control panels, making it suitable for a wide range of industrial environments.

With support for multiple starting modes and built-in protection features, this model is ideal for industries requiring efficient motor management, reduced downtime, and enhanced process control.

---

Product Specifications

---

Applications

• Pump systems
Provides smooth acceleration and deceleration, preventing water hammer and reducing mechanical wear in pumping systems.

• Fan and blower control
Ensures gradual motor startup, minimizing belt stress and improving system reliability in HVAC and ventilation systems.

• Conveyor systems
Delivers controlled start/stop functionality to prevent product spillage and mechanical shock in material handling lines.

• Compressors
Reduces inrush current and mechanical strain during startup, improving operational efficiency and equipment lifespan.

• Industrial manufacturing lines
Widely used in automated production environments where stable motor control is essential for consistent output.

---

Advantages

• Reduced inrush current
Significantly lowers starting current compared to direct-on-line starters, minimizing power system disturbances.

• Extended equipment life
Smooth starting and stopping reduce mechanical stress on motors, gearboxes, and connected equipment.

• Flexible configuration options
Supports multiple starting modes and adjustable parameters to meet different application requirements.

• Advanced motor protection
Integrated protection features help prevent damage from overload, phase imbalance, and abnormal operating conditions.

• Open design for customization
Allows easy integration into control panels and compatibility with various industrial systems.

• Improved process control
Enhances operational stability, especially in processes requiring precise motor speed ramping.

FAQ

1. What is the main function of the 150-F135NBD soft starter?
   It controls the acceleration and deceleration of three-phase motors, reducing electrical and mechanical stress during startup and shutdown.
2. How does this soft starter reduce inrush current?
   It gradually increases the voltage applied to the motor, limiting the initial current surge typically seen in direct-on-line starting.
3. Can this unit be used with different motor sizes?
   Yes, it supports a range of motor ratings within its specified capacity, particularly between 25 HP and 100 HP at 460V.
4. What types of protection are built into the device?
   It includes protection against overload, phase loss, stall conditions, and undercurrent, ensuring safe motor operation.
5. Is it possible to integrate this soft starter into a networked control system?
   Yes, with optional communication modules, it can be integrated into industrial networks such as DeviceNet or EtherNet/IP.
6. What kind of control signals does it accept?
   The unit operates with a control voltage range of 100–240 VAC, allowing compatibility with various control systems.
7. Does the open enclosure affect installation?
   Yes, it requires installation inside a suitable control cabinet to ensure protection from environmental factors.
8. What industries commonly use this soft starter?
   It is widely used in industries such as manufacturing, water treatment, HVAC, and material handling.
9. Can the starting profile be adjusted?
   Yes, parameters such as ramp time and initial torque can be configured to suit specific application needs.
10. What happens in case of a fault condition?
    The device will trigger protective actions such as shutdown or alarm signaling, depending on the configured settings.
