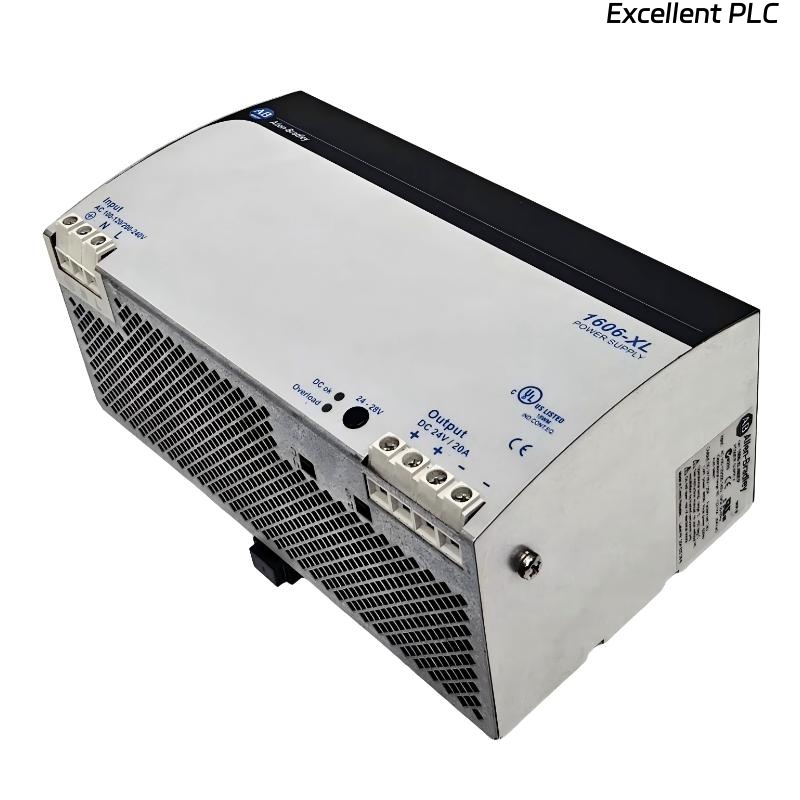

Allen Bradley 1606-XL480EP Power Supply

Product Introduction

The Allen-Bradley 1606-XL480EP Power Supply is an advanced industrial DC power supply designed for reliable operation in automation and control systems. Part of the 1606-XL Series, this module delivers 24–28 V DC output at 480 W with integrated Power Factor Correction (PFC), ensuring high efficiency and reduced harmonic distortion on the AC input.

The 1606-XL480EP is ideal for industrial environments that demand stable and clean power for PLCs, sensors, actuators, and other control devices. Its rugged construction allows operation in harsh conditions, while the compact design fits easily into standard control cabinets. The addition of PFC improves energy efficiency, reduces electrical losses, and supports compliance with modern power quality standards.

Product Specifications

Applications

The 1606-XL480EP is suitable for various industrial applications:

• Factory Automation: Powers PLCs, sensors, actuators, and other control modules.

• Process Control: Provides clean DC power to instrumentation in chemical, water, and energy plants.

• Robotics and Machinery Control: Ensures reliable power for robotic systems and industrial machinery.

• Transportation Systems: Powers control units in conveyors, automated vehicles, and safety systems.

• Energy Management Systems: Supplies monitoring and control devices with stable DC power.

• Industrial Cabinets: Supports high-quality DC supply for general automation needs, with improved power factor.

Advantages

• High Reliability: Stable 24–28 V DC output for uninterrupted operation.

• Integrated Power Factor Correction: Reduces AC input harmonics and improves energy efficiency.

• Wide Input Range: 100–240 V AC allows global deployment.

• High Efficiency: Up to 90% reduces energy losses and heat generation.

• Robust Protection: Overvoltage, overcurrent, and short-circuit protection.

• Compact and Lightweight: Fits easily in industrial control cabinets.

• Flexible Mounting: DIN rail or panel installation.

• Low Ripple and Noise: Provides clean power for sensitive equipment.

• Industrial Durability: Operates reliably in temperatures from -25°C to +70°C.

FAQ

1. What is the purpose of Power Factor Correction (PFC) in this module?
   PFC improves the AC input power quality by reducing harmonic distortion and increasing efficiency, which helps minimize energy losses and comply with industrial power standards.

2. What is the output voltage range?
   The module provides regulated 24–28 V DC, suitable for powering PLCs, sensors, and actuators.

3. What is the maximum output current?
   It can deliver up to 20 A, sufficient for multiple devices in a control cabinet.

4. What protections are included?
   Overvoltage, overcurrent, and short-circuit protection are built-in to safeguard both the supply and connected devices.

5. Can it operate at high temperatures?
   Yes, it is rated for -25°C to +70°C, supporting demanding industrial environments.

6. What is the efficiency of the power supply?
   Up to 90%, which minimizes energy loss and reduces heat buildup.

7. Can multiple units be used in parallel?
   Yes, multiple 1606-XL Series units can be connected in parallel for higher current capacity or redundancy.

8. How is the module cooled?
   Cooling is primarily convection-based, with optional fan-assisted cooling for higher load or ambient temperatures.

9. What is the ripple and noise specification?
   ≤ 100 mV peak-to-peak, ensuring clean DC output for sensitive control and automation devices.

10. What mounting options are available?
    The module supports DIN rail or panel mounting for flexible installation.
