Product Introduction

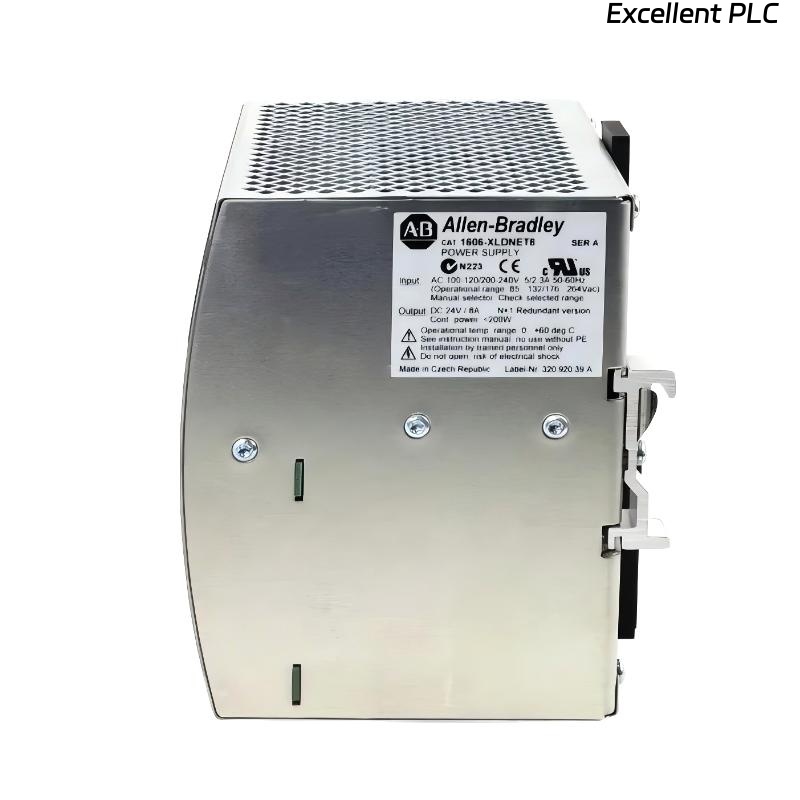

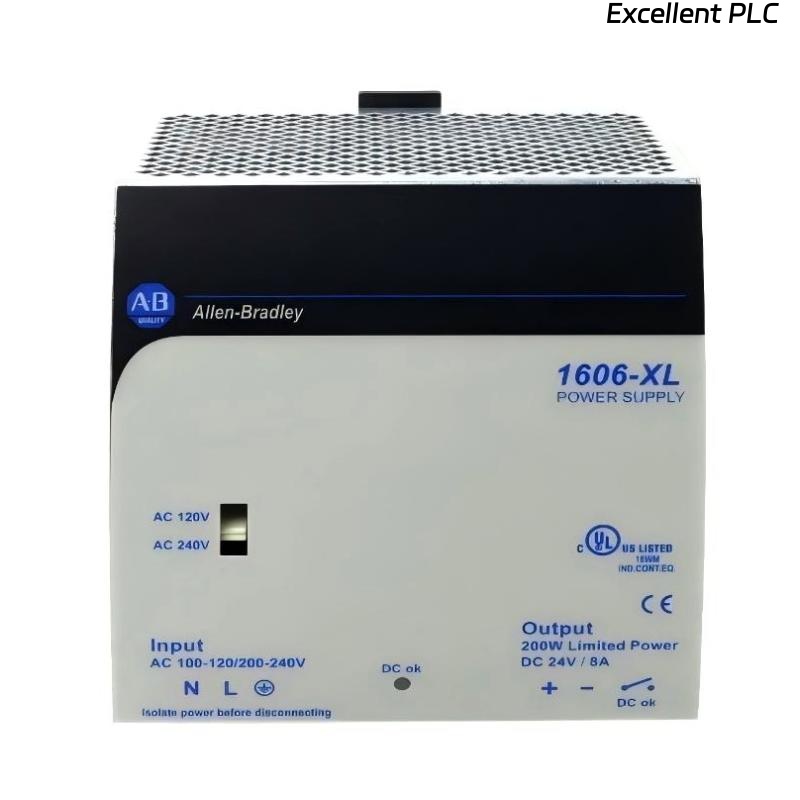

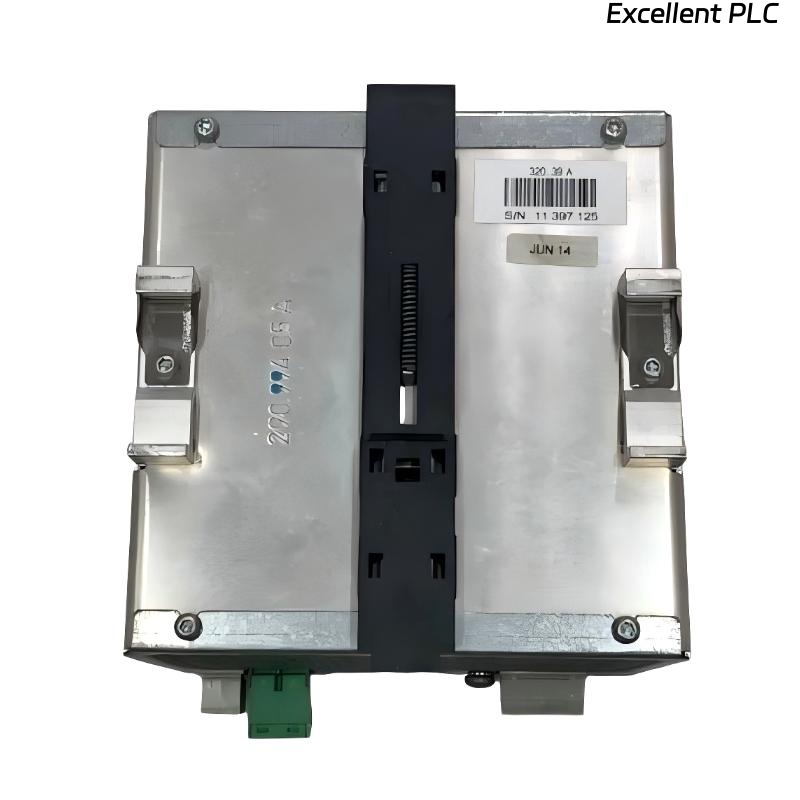

The Allen-Bradley 1606-XLDNET8 Power Supply is a robust industrial DC power supply designed to provide reliable 24 V DC output at 8 A. Part of the 1606-XL Series, this module features a wide input range with selectable input currents for 100–120 V AC or 200–240 V AC, allowing versatile installation in different regions.
Designed for industrial automation and control applications, the 1606-XLDNET8 delivers stable DC power to PLCs, sensors, actuators, and other industrial devices. Its compact design and reliable performance make it suitable for control cabinets, machinery, and systems requiring consistent and efficient power delivery.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1606-XLDNET8 |
| Series | 1606-XL Series |
| Input Voltage | 100–120 V AC (5 A) / 200–240 V AC (2.3 A) switchable |
| Output Voltage | 24 V DC |
| Output Current | 8 A |
| Output Power | 192 W |
| Efficiency | Up to 90% |
| Ripple and Noise | ≤ 100 mV peak-to-peak |
| Operating Temperature Range | -25°C to +70°C |
| Cooling | Convection / Fan-assisted optional |
| Protections | Overvoltage, overcurrent, short-circuit |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 120 × 124 × 102 mm |
| Weight | 0.98 kg |
Applications
The 1606-XLDNET8 is suitable for industrial and automation applications:
-
Factory Automation: Provides stable power for PLCs, actuators, and sensors.
-
Process Control: Supplies instrumentation and control devices in chemical, water, and energy plants.
-
Robotics and Machinery: Powers small to medium industrial machinery and robotic systems.
-
Transportation and Material Handling: Supplies reliable DC power to conveyors, automated vehicles, and safety systems.
-
Industrial Control Cabinets: Fits medium-size cabinets requiring 24 V DC at 8 A.
-
Distributed Control Systems: Provides clean and reliable power to networked devices and control modules.
Advantages
-
Wide Input Voltage Range: Supports both 100–120 V AC and 200–240 V AC with selectable input current.
-
Stable Output: Provides 24 V DC at 8 A for reliable operation of industrial devices.
-
High Efficiency: Up to 90%, reducing energy loss and heat generation.
-
Compact and Lightweight: Fits medium-size control cabinets.
-
Robust Protection: Includes overvoltage, overcurrent, and short-circuit protection.
-
Low Ripple and Noise: ≤ 100 mV peak-to-peak for sensitive electronics.
-
Flexible Mounting: Supports DIN rail or panel installation.
-
Industrial Durability: Operates reliably in temperatures from -25°C to +70°C.
