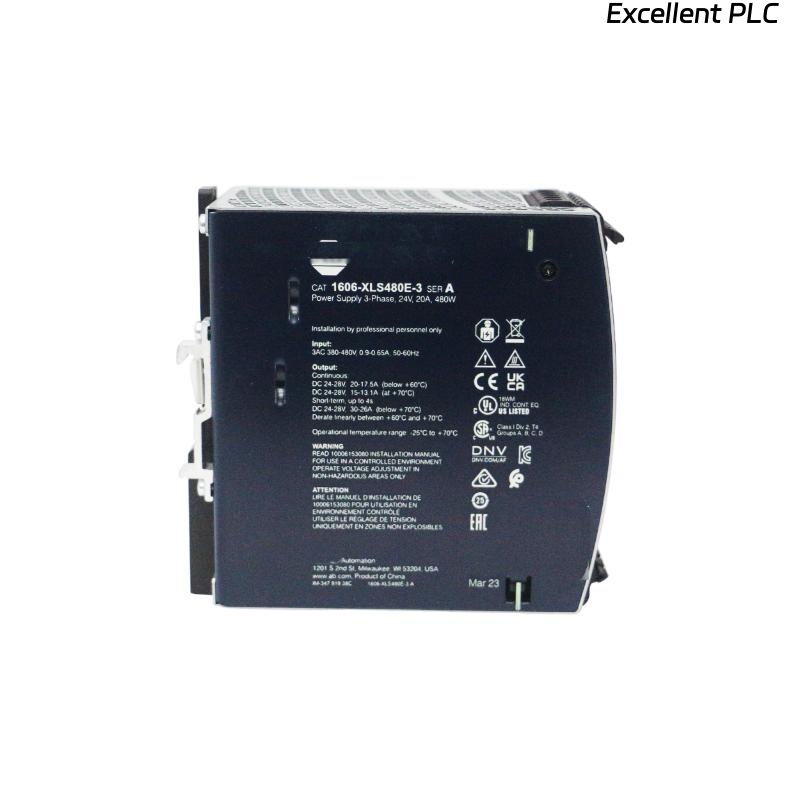

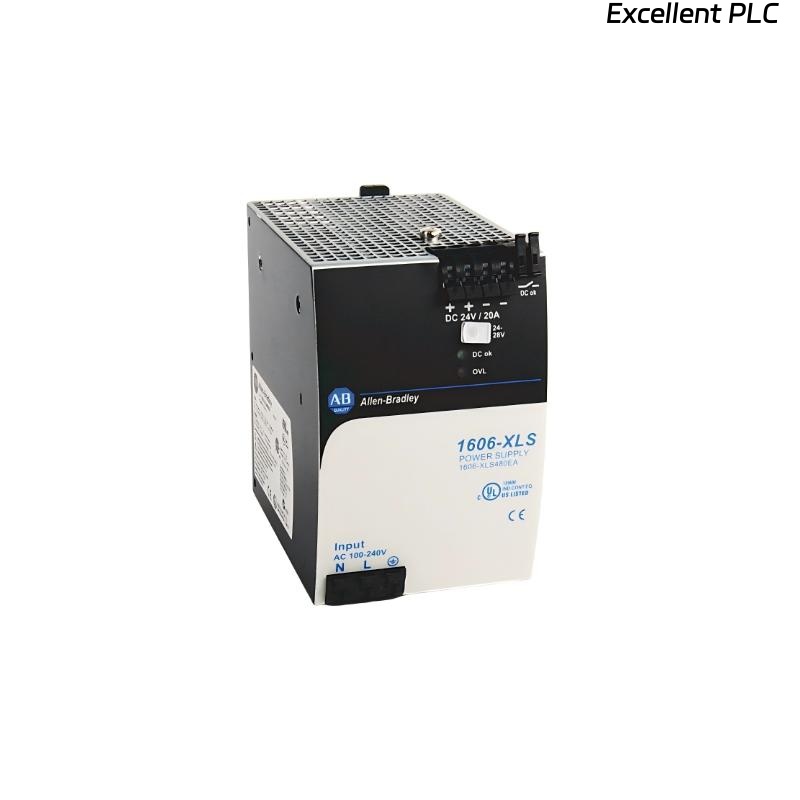

Allen Bradley 1606-XLS480E-3 Power Supply Module

System Integration Overview

The Allen Bradley 1606-XLS480E-3 is a high-performance DIN-rail mounted power supply module, providing 24 V DC at 20 A (480 W). Designed for control panels, PLC racks, and automation systems, this module ensures reliable and stable power delivery in complex industrial environments.

From a system integration perspective, the 1606-XLS480E-3 offers high efficiency, compact dimensions, and standard DIN-rail compatibility, making it easy to integrate into modern automation infrastructures. Its design supports continuous operation under industrial ambient conditions, with built-in protection features and diagnostics.

Technical Specifications

Applications / Use Scenarios

• Powering PLC racks, I/O modules, and industrial control panels.

• Compact high-current power supply for automated machine systems.

• Replacement of older power modules for efficiency and reliability improvements.

• Use in material handling, packaging, and manufacturing process systems.

• Integration in global automation systems requiring AC or DC input flexibility.

Advantages / Key Engineering Benefits

• High Efficiency: Minimizes heat generation, reduces cooling requirements.

• Compact & DIN-Rail Compatible: Space-saving design for tight control cabinets.

• Robust Diagnostics: DC-OK relay and LED indicators enable monitoring and maintenance.

• Flexible Integration: Compatible with the 1606-XLS family and global input voltages.

• Reliable Operation: Supports continuous industrial use with wide temperature range.

• Easy Installation: Spring-clamp terminals simplify wiring and maintenance.

Technical FAQs

1. What is the output voltage and current?
   – 24 V DC at 20 A.

2. What are the module dimensions?
   – 65 mm × 124 mm × 127 mm.

3. What is the weight?
   – 0.87 kg.

4. Is it DIN-rail mountable?
   – Yes, for 35 mm DIN-rails.

5. What is the protection rating?
   – IP20.

6. Does it support wide input voltage?
   – Yes, AC 380–480 V or DC variants.

7. Is remote monitoring possible?
   – Yes, via DC-OK relay.

8. What is the typical efficiency?
   – ~95%.

9. Can it operate in redundant systems?
   – Yes, with proper system design.

10. Does it have inrush current limiting?
    – Yes, active inrush limiter included.
