Product Introduction

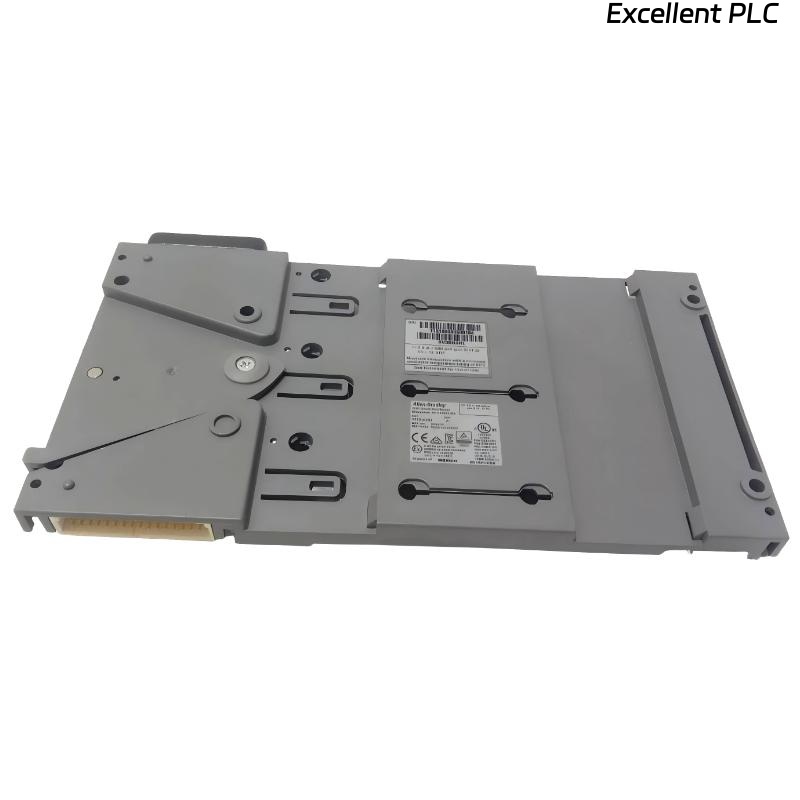

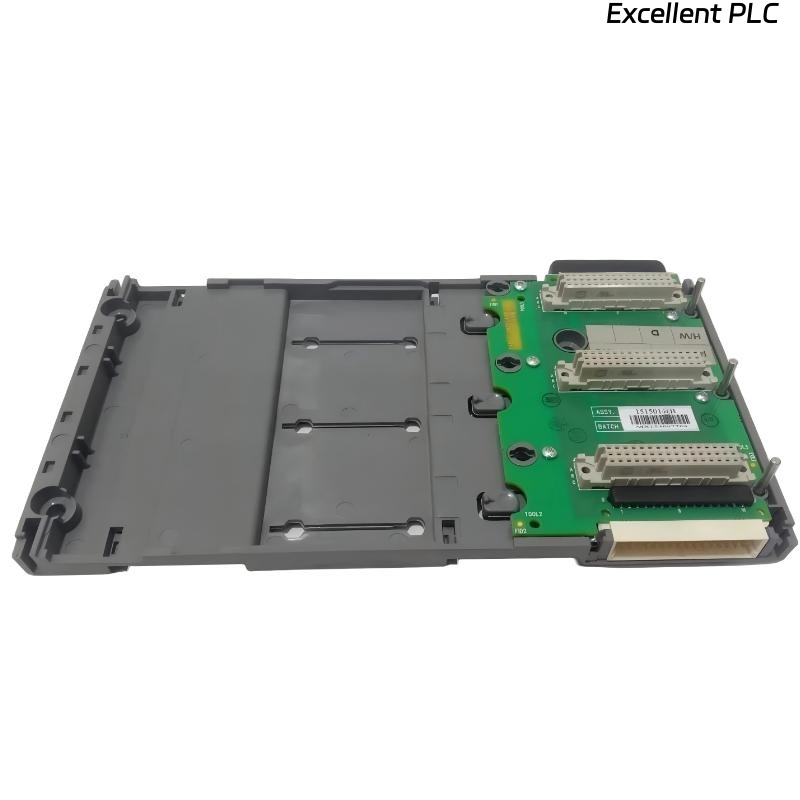

The Allen Bradley 1715-A3IO Redundant I/O Module Base is an industrial-grade base unit designed to support redundant I/O modules in automation systems. It provides a modular platform for connecting multiple I/O modules while ensuring continuous operation through redundancy, improving system reliability and uptime.
This base unit accommodates up to three I/O modules, allowing flexible configuration of input and output signals. It is designed for DIN rail mounting, with IP20 protection, suitable for industrial control panels and cabinets. Built to withstand a wide operating temperature range, it is ideal for harsh factory environments requiring consistent signal management and fault-tolerant I/O operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | Allen Bradley 1715-A3IO |
| Product Type | Redundant I/O Module Base |
| Function | Input/output base unit supporting redundant modules |
| Slots | 3 |
| Mounting Method | DIN rail mounted |
| Protection Class | IP20 |
| Operating Temperature | -25 to +70 °C (-13 to +158 °F) |
| Supported Systems | Allen Bradley Redundant I/O systems |
| Module Compatibility | Compatible with 1715-A series redundant I/O modules |
| Weight | 0.22 kg |
| Dimensions | 233 × 126 × 18 mm |
| Diagnostics | Supports module-level status and fault detection |
Applications
• Redundant I/O Systems
Supports continuous operation in systems where fault tolerance is critical.
• Input/Output Signal Management
Provides a stable platform for connecting multiple I/O modules, enabling reliable signal acquisition and actuation.
• Industrial Automation Panels
Mounted in control cabinets and racks to manage distributed I/O for process control.
• Critical Process Industries
Used in power plants, chemical plants, and manufacturing where uptime and system reliability are paramount.
• System Expansion
Facilitates modular addition of I/O modules to scale system capacity as required.
Advantages
• Redundant Design
Ensures continuous operation even if a module or channel fails, enhancing overall system reliability.
• Modular Configuration
Supports flexible placement of up to three I/O modules, allowing tailored signal distribution.
• Compact and Lightweight
Slim form factor and low weight make it easy to mount in standard DIN rail control panels.
• Wide Operating Temperature
Operates reliably between -25 to +70 °C (-13 to +158 °F), suitable for harsh industrial environments.
• Integrated Diagnostics
Supports module-level status monitoring, enabling rapid troubleshooting and maintenance.
• IP20 Protection
Provides basic protection against solid objects and accidental contact, ensuring safe panel integration.
