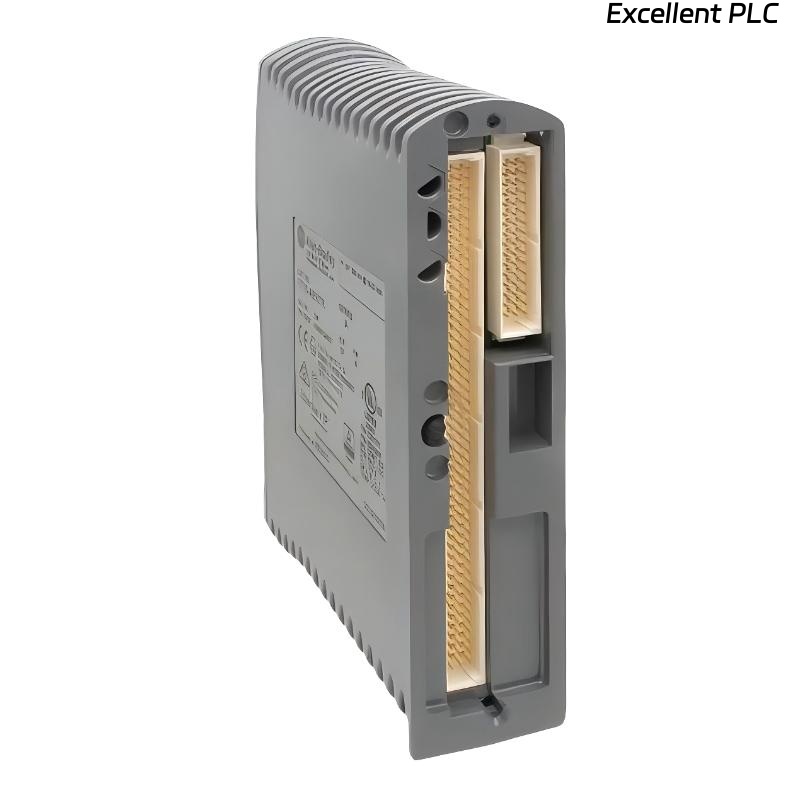

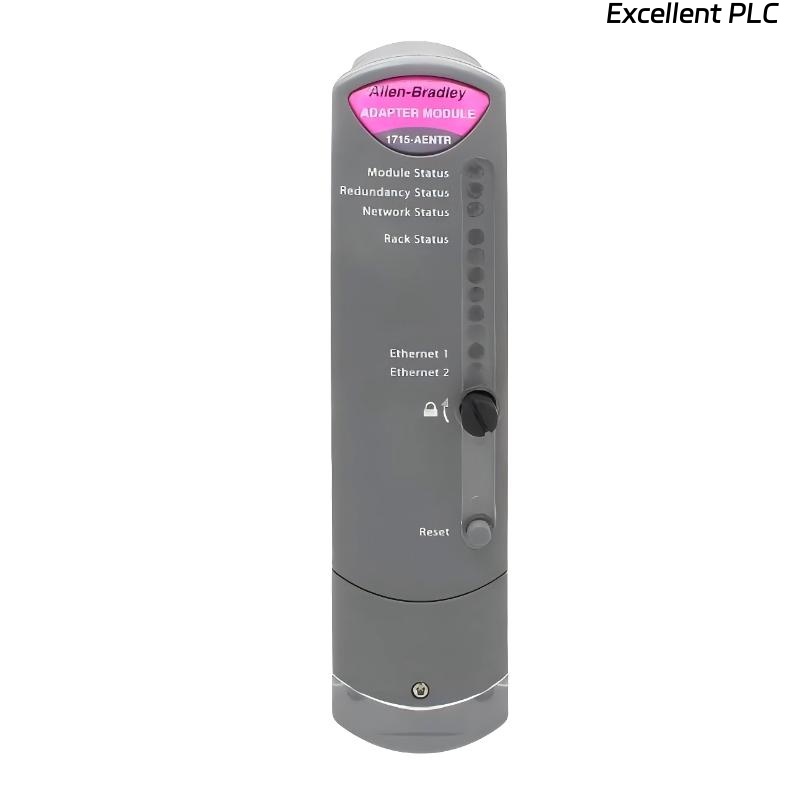

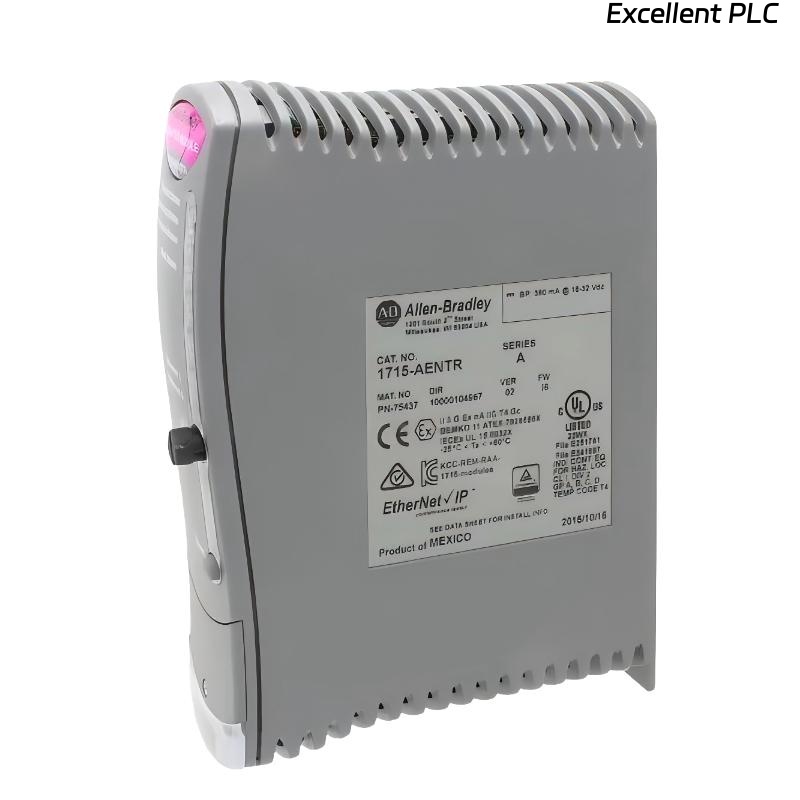

Allen Bradley 1715-AENTR Ethernet Adapter Module

Product Introduction

The Allen Bradley 1715-AENTR Ethernet Adapter Module is a communication interface designed for redundant I/O systems, enabling reliable Ethernet/IP connectivity for industrial automation networks. It provides seamless integration between field I/O modules and higher-level control systems, ensuring fast and stable communication.

This open-style module supports two independent channels and is designed for DIN rail mounting, offering flexibility in system layout. It is optimized for use in redundant I/O architectures, allowing continuous operation even in the event of a single module fault. The module operates reliably within a wide temperature range, making it suitable for demanding industrial environments.

---

Product Specifications

---

Applications

• Redundant I/O Networks
Enables continuous Ethernet/IP communication between controllers and redundant I/O modules.

• Industrial Automation Systems
Integrates I/O modules into networked control systems, supporting fast data transfer and system coordination.

• Process Control
Suitable for chemical, manufacturing, and power plants, ensuring reliable data exchange in critical operations.

• System Expansion
Facilitates scalable network connections by adding multiple adapter modules to the I/O infrastructure.

• Remote Monitoring
Supports remote status and diagnostic access for efficient maintenance and troubleshooting.

---

Advantages

• Reliable Communication
Ensures stable and fast Ethernet/IP data transfer for industrial networks.

• Redundant I/O Compatibility
Designed for continuous operation in redundant system architectures.

• Dual Channel Support
Two independent channels allow network flexibility and fault tolerance.

• Compact and DIN Rail Mounted
Slim open-style module enables easy integration in control panels.

• Wide Operating Temperature
Operates from -25 to +70 °C (-13 to +158 °F), suitable for harsh industrial conditions.

• Diagnostics and Monitoring
Provides real-time status and fault feedback, aiding quick troubleshooting and system maintenance.

FAQ

1. What is the main function of the 1715-AENTR module?
It provides Ethernet/IP communication between redundant I/O modules and controllers.

2. How many channels does this adapter module support?
It supports two independent channels for flexible network configuration.

3. Is this module suitable for DIN rail installation?
Yes, it is designed for DIN rail mounting in industrial control panels.

4. What is the operating voltage and current?
It operates at 18–30 VDC and consumes 380 mA.

5. What is the operating temperature range?
The module functions reliably between -25 to +70 °C (-13 to +158 °F).

6. Can it be used in redundant I/O systems?
Yes, it is designed for fault-tolerant redundant architectures.

7. Does the module provide diagnostics?
Yes, it supports communication and module status monitoring.

8. Is it compatible with Allen Bradley 1715-A series modules?
Yes, it fully supports 1715-A redundant I/O modules.

9. Can multiple modules be installed in the same network?
Yes, multiple modules can be added to expand Ethernet/IP network connectivity.

10. Is the unit compact and easy to install?
Yes, its open-style enclosure and DIN rail mount simplify panel integration.
