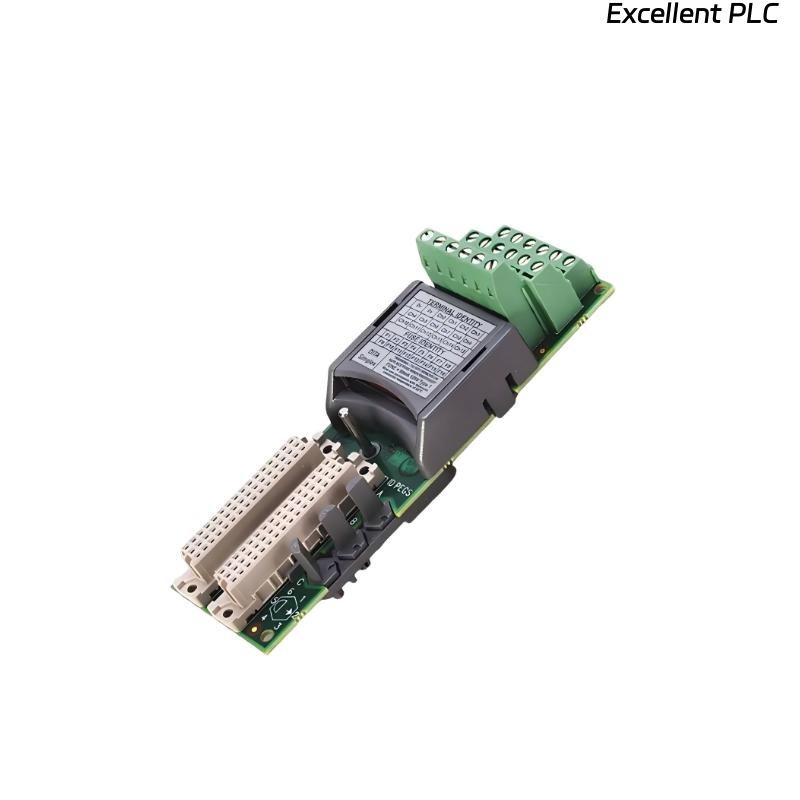

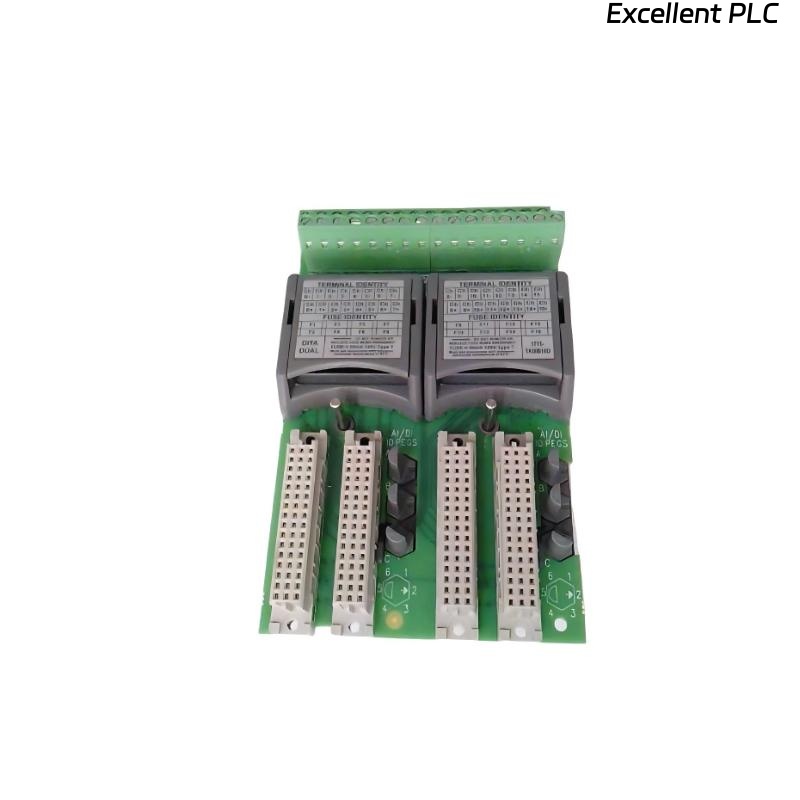

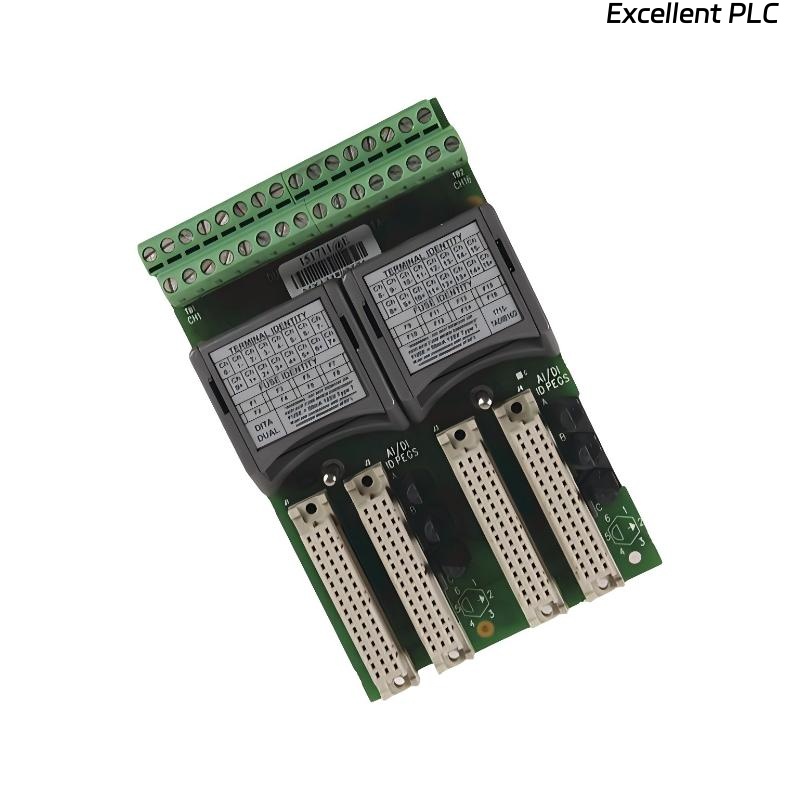

Allen Bradley 1715-TADIB16D Analog Input Module

Product Overview

The Allen Bradley 1715-TADIB16D Analog Input Module is a high-reliability component within the 1715 Redundant I/O platform, primarily designed for use in demanding process automation systems that require fault-tolerant operation. This module offers 16 differential analog input channels, making it suitable for distributed control architectures that rely on precise and synchronized signal acquisition. Built to support redundant control applications, it ensures continuous data availability and high accuracy even in harsh industrial environments.

Technical Specifications

Field Applications

• Redundant process automation systems in chemical, power, and refining industries.

• Continuous control applications where analog signal precision and redundancy are critical.

• Monitoring pressure, flow, temperature, and level sensors with fault-tolerant architecture.

• High-availability systems in water treatment, oil & gas, and energy generation facilities.

• SCADA and DCS systems requiring secure and reliable analog data acquisition.

Distinctive Advantages

• True redundancy support — integrates seamlessly with dual 1715 controllers for fault-tolerant operation.

• Advanced diagnostics — early fault detection ensures predictive maintenance and reduced downtime.

• High precision — 16-bit resolution and configurable input ranges ensure data accuracy across all process types.

• Hot-swap capability — allows replacement without powering down the system.

• Industrial-grade durability — designed for high vibration and temperature variation environments.

• Compact modular design — saves control cabinet space while maintaining functionality.

• Comprehensive status indication — front-panel LEDs provide real-time input health visibility.

• Backplane communication — ensures low-latency data exchange between module and redundant controller.

• Simplified wiring — detachable terminal blocks for quick installation and maintenance.

• Long lifecycle support — guaranteed compatibility within the 1715 redundant I/O family.

Technical FAQs

1. Q: What is the function of the 1715-TADIB16D in a redundant I/O system?
   A: It collects analog signals and provides fault-tolerant data acquisition through dual I/O paths in a 1715 redundant architecture.

2. Q: Can the module operate with both voltage and current signals?
   A: Yes, each channel can be configured individually for voltage or current measurement.

3. Q: How does the module handle input signal faults?
   A: It features built-in diagnostics such as open-wire detection and range fault monitoring.

4. Q: What is the input resolution of this module?
   A: 16-bit resolution per channel for precise analog measurement.

5. Q: Can I replace the module during system operation?
   A: Yes, it supports hot-swap replacement under redundant control conditions.

6. Q: How does redundancy improve system reliability?
   A: The dual-channel design allows continuous operation if one module or path fails, maintaining uninterrupted data flow.

7. Q: Is galvanic isolation available between channels?
   A: Yes, each input channel is isolated to prevent signal interference.

8. Q: What communication medium connects the module to the controller?
   A: It uses a redundant digital backplane within the 1715 system chassis.

9. Q: Can it be used in hazardous area installations?
   A: Yes, the module is ATEX Zone 2 certified, suitable for such environments when installed properly.

10. Q: How can I verify module health?
    A: Front LEDs indicate status per channel, and diagnostic data is accessible via the controller interface.
