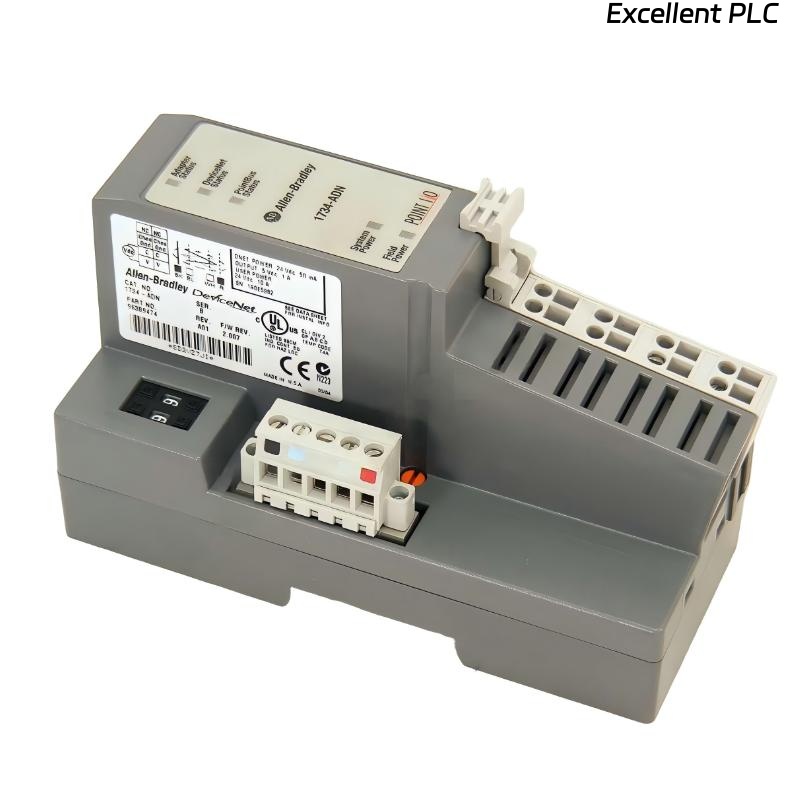

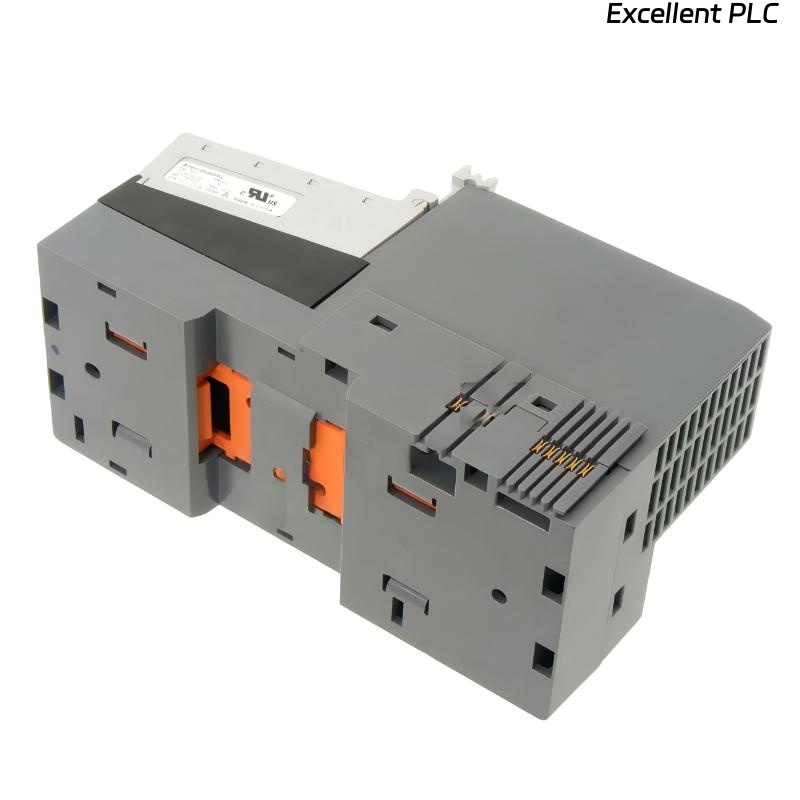

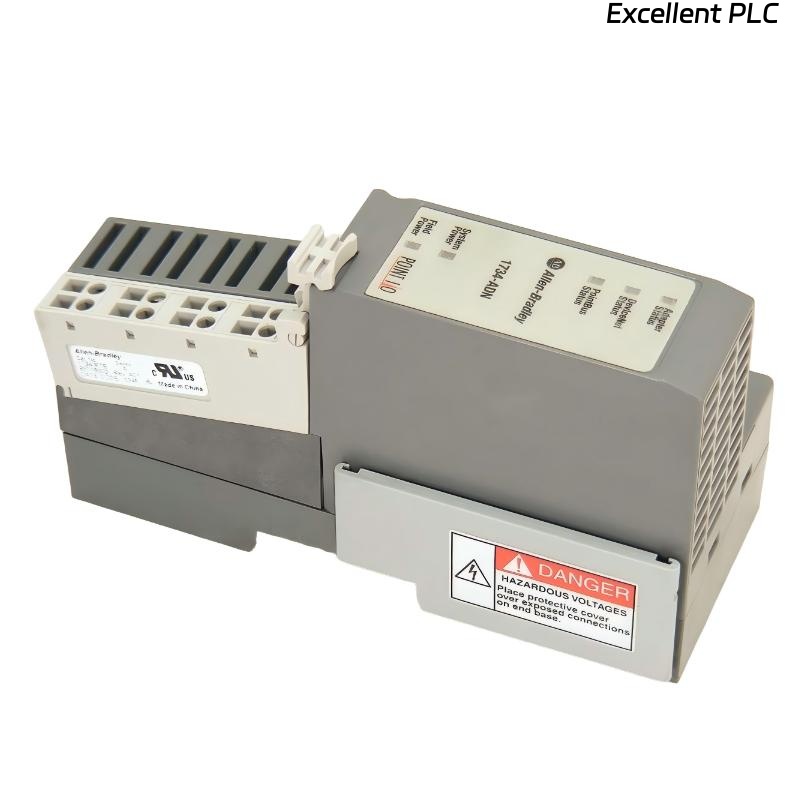

Allen Bradley 1734-ADN I/O ControlNet Network Adapter

Product Introduction

The Allen-Bradley 1734-ADN I/O ControlNet Network Adapter is a high-performance communication module designed to connect Point I/O modules to DeviceNet networks.

This module enables deterministic and reliable communication between Point I/O systems and DeviceNet controllers, supporting both peer-to-peer and slave operations. It is ideal for industrial automation applications that require real-time monitoring, control, and integration of distributed I/O modules.

The 1734-ADN is built for industrial reliability, offering robust protection, wide operating temperature range, and high humidity tolerance. Its compact design allows efficient installation in control panels, making it suitable for both system expansions and retrofit applications.

---

Product Specifications

---

Applications

• DeviceNet network integration, connecting Point I/O modules to DeviceNet controllers for real-time control

• Industrial automation, providing reliable peer-to-peer or slave communication for distributed I/O

• Process control and monitoring, enabling centralized control of multiple I/O modules

• System expansion, allowing additional Point I/O modules to be added to DeviceNet networks without replacing existing infrastructure

• Machine automation, supporting synchronization and fast data exchange for industrial machinery

• Retrofit projects, upgrading legacy Point I/O systems to communicate over DeviceNet networks

---

Advantages

• Reliable DeviceNet communication, supporting both peer-to-peer and slave modes for flexible system design

• Wide communication speed range, from 125 kbit/s to 500 kbit/s, for various network requirements

• Industrial-grade durability, operating in high temperatures and high-humidity environments without performance loss

• Compact and modular, minimizing panel space while supporting multiple distributed I/O modules

• Seamless integration, allowing Point I/O modules to communicate efficiently with DeviceNet controllers

• Low maintenance, designed for continuous industrial operation without frequent servicing

• Flexible network expansion, enabling easy addition of modules to meet growing control needs

FAQ

1. What is the main function of the 1734-ADN module?
It provides a DeviceNet network interface for Point I/O modules, enabling deterministic communication with controllers and other devices.

2. What network modes does the module support?
The module supports both peer-to-peer and slave operations, allowing flexible system configurations.

3. What is the communication speed range?
It supports DeviceNet communication from 125 kbit/s to 500 kbit/s, suitable for various network requirements.

4. What is the operating voltage?
The module operates at 24 V DC, standard for industrial automation systems.

5. What is the operating temperature range?
It functions reliably between -20 °C and 55 °C, suitable for most factory environments.

6. Can it be used in high-humidity or harsh conditions?
Yes, the module is rated for up to 95% relative humidity and built to withstand standard industrial conditions.

7. Is the 1734-ADN compatible with Allen-Bradley Point I/O systems?
Yes, it integrates seamlessly with Point I/O modules and DeviceNet networks.

8. Can this module be used for system expansion?
Yes, it allows additional Point I/O modules to be added to existing DeviceNet networks without replacing other components.

9. Does it require maintenance or calibration?
No, the module is designed for minimal maintenance, only requiring occasional inspection of wiring and connections.

10. Can it be used for retrofitting legacy systems?
Yes, it provides DeviceNet connectivity for older Point I/O installations, enabling them to integrate with modern control networks.
