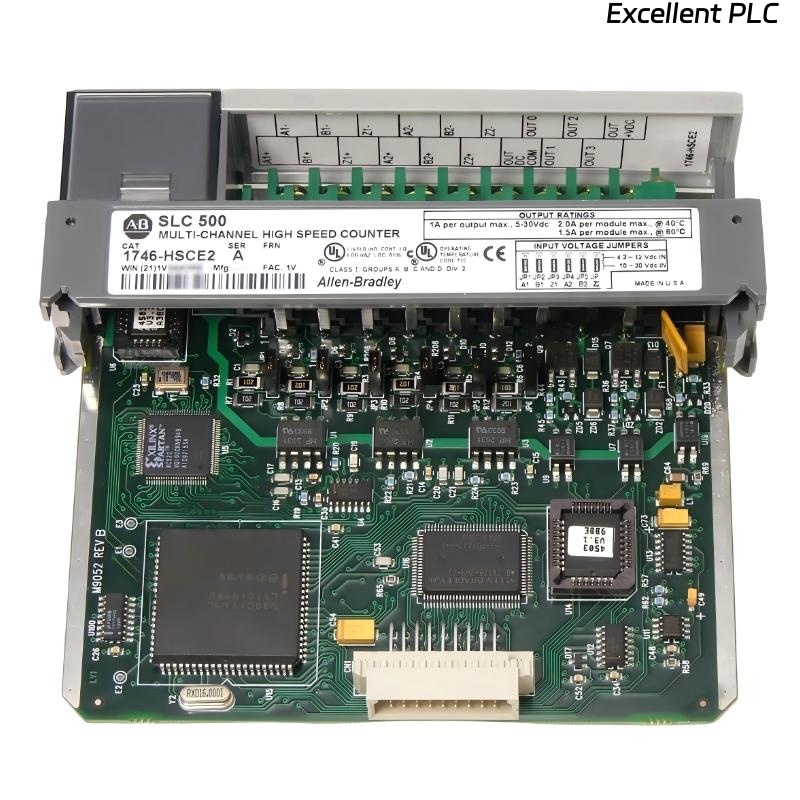

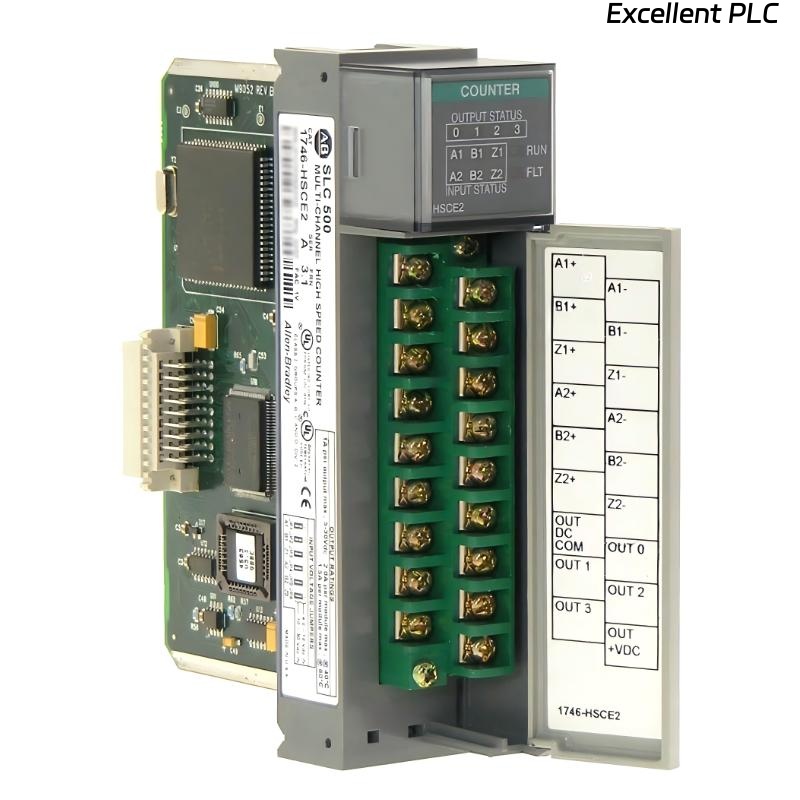

Allen Bradley 1746-HSCE2 Multi-Channel High Speed Counter Module

Product Introduction

The Allen-Bradley 1746-HSCE2 Multi-Channel High Speed Counter Module is a high-performance counting and analog interface module designed for SLC 500 programmable controller systems. It combines high-speed multi-channel counting with fast analog input and analog voltage output capabilities, making it suitable for demanding industrial automation and motion-related applications.

This module supports four independent counter channels along with two fast analog inputs capable of handling both voltage and current signals. In addition, it provides two analog voltage outputs for precise control or signal generation. With a maximum processing speed of 1.5 MS, the 1746-HSCE2 delivers rapid and accurate signal handling for time-critical applications.

The open-style construction allows flexible wiring and installation, while the 1000V isolation between user-side and system electronics ensures enhanced safety and signal integrity. The 1746-HSCE2 is well suited for machine automation, robotics, process monitoring, and high-speed measurement tasks.

---

Product Specifications

---

Applications

• High-speed multi-channel counting, enabling accurate monitoring of fast pulse signals

• Motion and position feedback, supporting encoders and high-speed sensors

• Fast analog signal acquisition, processing voltage and current inputs in real time

• Analog output control, generating voltage signals for actuators or control loops

• Machine automation, integrating counting and analog functions in a single module

• Robotics and indexing systems, requiring fast response and reliable isolation

---

Advantages

• Four independent counter channels, allowing simultaneous multi-signal processing

• High processing speed up to 1.5 MS, ensuring fast and accurate data handling

• Dual fast analog inputs, supporting both voltage and current measurement

• Two analog voltage outputs, enabling precise control and signal generation

• 1000V electrical isolation, improving system safety and noise immunity

• Open-style design, providing flexible wiring and easy integration

FAQ

1. How many counter channels are supported by the 1746-HSCE2 module?
   The module supports four independent high-speed counter channels.

2. What is the maximum processing speed of this module?
   It supports a maximum processing speed of up to 1.5 MS for high-speed applications.

3. What types of analog input signals can be used?
   The module accepts both voltage and current signals on its two fast analog inputs.

4. How many analog outputs are available?
   There are two analog voltage output channels available for control or signal output.

5. What user-side voltage levels are supported?
   The module supports 5V, 12V, and 24V DC on the user side.

6. How does isolation benefit the system?
   The 1000V isolation protects the controller and connected devices from electrical noise and faults.

7. Is this module suitable for motion control applications?
   Yes, it is well suited for motion feedback, encoder processing, and high-speed positioning tasks.

8. What does the open-style design provide?
   It allows flexible wiring arrangements and simplifies installation in control cabinets.

9. Can this module be used in high-speed measurement systems?
   Yes, its high processing speed and fast analog inputs make it ideal for high-speed measurement.

10. How does the module integrate into SLC 500 systems?
    It installs directly onto the SLC 500 backplane and communicates through the system bus.
