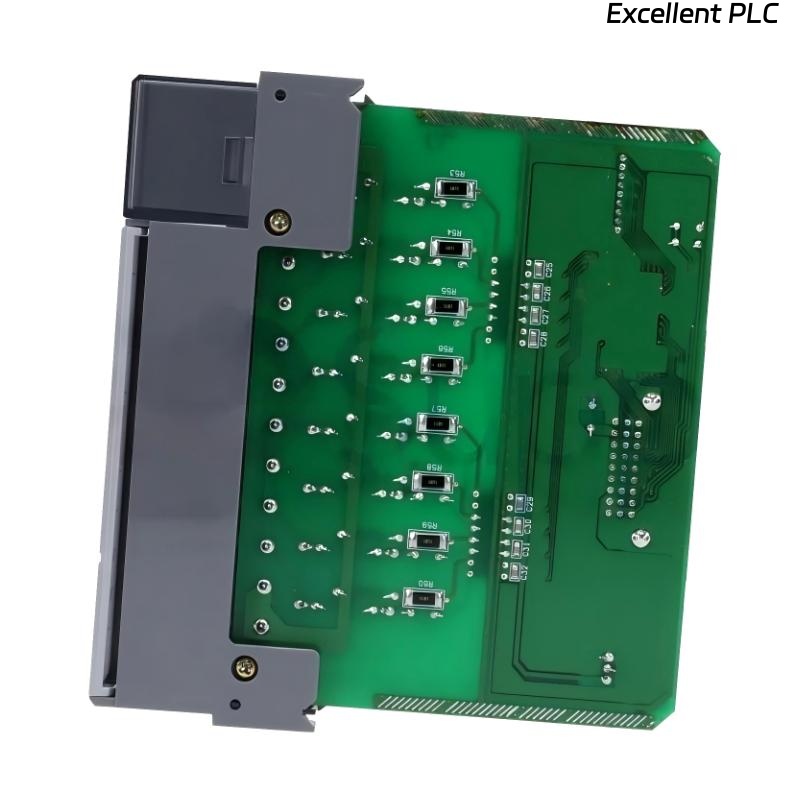

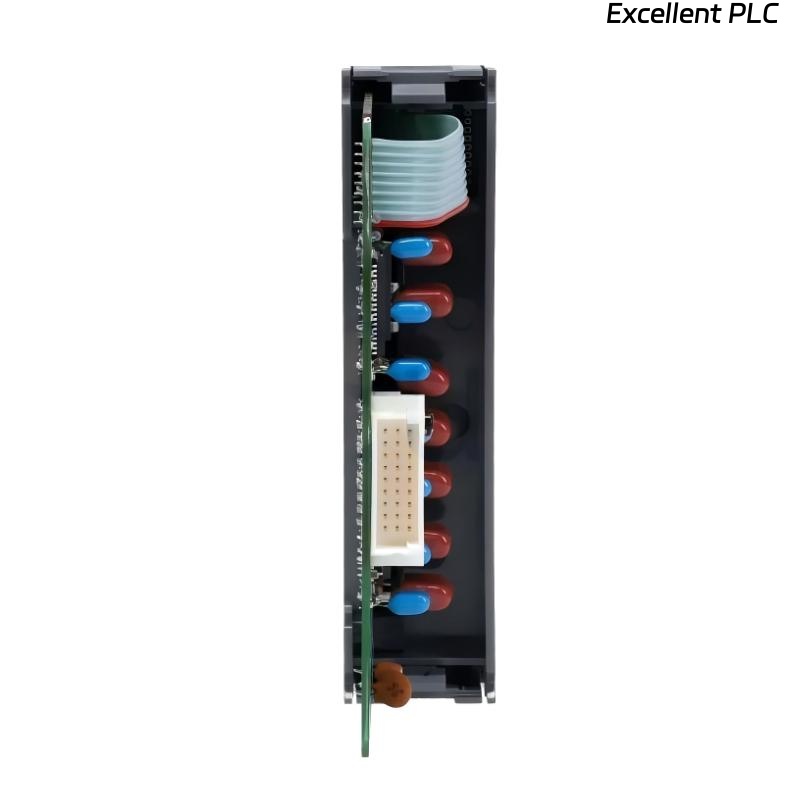

Allen Bradley 1746-IM8 Digital Input Module

Product Introduction

The Allen Bradley 1746-IM8 Digital Input Module is an industrial-grade input module designed for the SLC 500 automation system. It provides reliable interface for 8 discrete digital inputs, allowing the PLC to monitor the status of switches, sensors, and other field devices.

The module supports standard industrial AC voltages, providing safe and precise signal detection. Its design ensures robust operation in industrial environments with electrical noise, voltage fluctuations, and continuous-duty cycles. The 1746-IM8 integrates seamlessly into SLC 500 racks, enabling straightforward installation, configuration, and system expansion.

Compact and modular, this digital input module simplifies control system wiring and improves monitoring reliability in process automation, manufacturing, and energy systems.

---

Product Specifications

---

Applications

• Monitoring discrete inputs from switches, pushbuttons, and sensors

• Integration with SLC 500 PLC systems for process and machine automation

• Used in manufacturing lines, material handling, and assembly automation

• Expansion of existing PLC input capacity with reliable digital signal capture

• Industrial control systems where precise and stable input detection is required

---

Advantages

• Reliable AC input detection ensures accurate status monitoring of field devices

• Compact modular design, allowing multiple modules in SLC 500 racks

• Electrical isolation protects the PLC backplane and system components

• Supports standard industrial AC voltages for compatibility with common sensors and switches

• Easy integration into existing SLC 500 systems and retrofits

• Durable industrial-grade construction, suitable for continuous operation

FAQ

1. How many digital inputs does the 1746-IM8 support?
   It supports 8 discrete digital input points.

2. What input voltage range is supported?
   200–250 V AC at 50/60 Hz.

3. Is the module compatible with SLC 500 PLC systems?
   Yes, it is fully compatible with SLC 500 racks.

4. Does the module provide electrical isolation?
   Yes, the inputs are electrically isolated from the PLC backplane.

5. Can it monitor AC signals from sensors and switches?
   Yes, it is designed for discrete AC signal monitoring.

6. Is it suitable for continuous industrial operation?
   Yes, it is built for reliable continuous-duty operation.

7. Can it be used to expand PLC input capacity?
   Yes, additional modules can be added to increase the number of digital inputs.

8. What types of devices can it interface with?
   Pushbuttons, limit switches, sensors, and other AC digital devices.

9. How is the module installed?
   It is mounted in an SLC 500 rack with standard rack connections.

10. Does it support both 50 Hz and 60 Hz input signals?
    Yes, it is compatible with both 50 Hz and 60 Hz AC input signals.
