Product Introduction

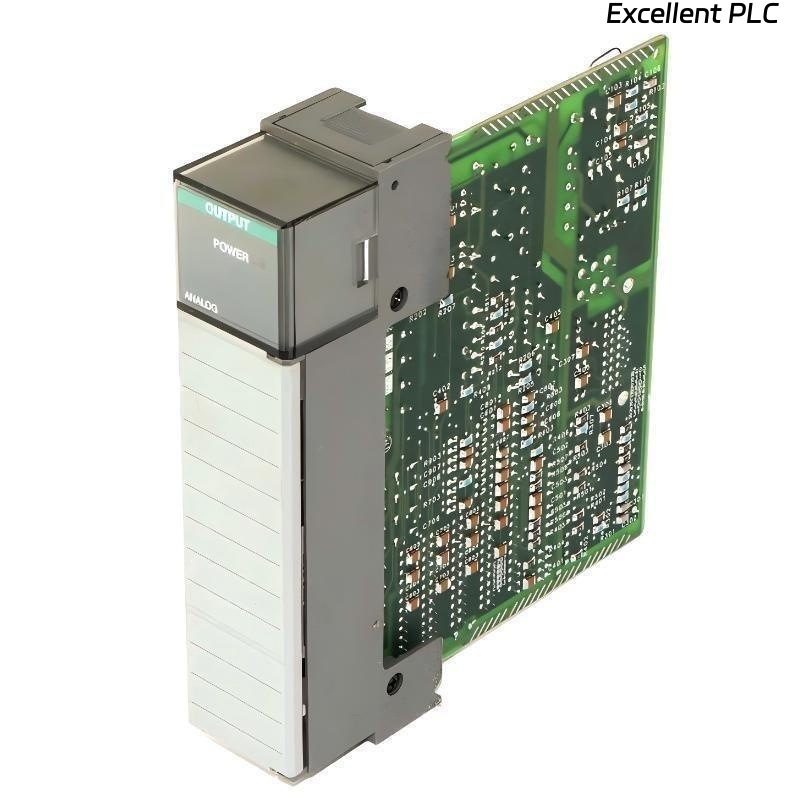

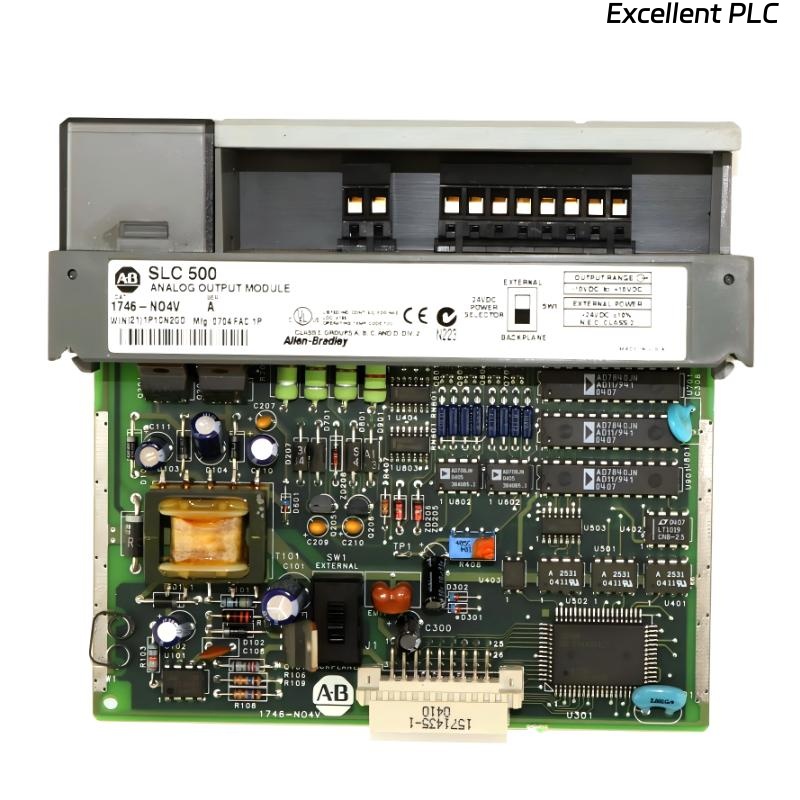

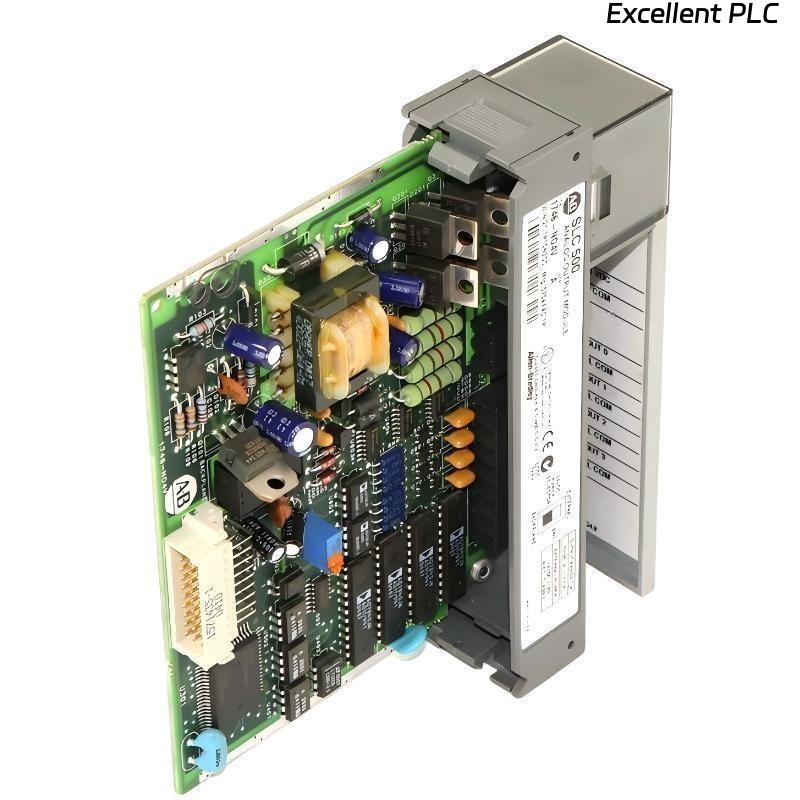

The Allen Bradley 1746-NO4V Analog Output Module is a voltage-output analog module designed for the SLC 500 automation platform. It provides 4 analog output points with a selectable ±10 VDC output range, allowing precise control of field devices such as variable speed drives, actuators, valves, and other voltage-controlled equipment.
This module is designed for applications where accurate analog signal generation is required. Although the output channels are not individually isolated, the module ensures stable and repeatable voltage output when properly grounded and installed within an industrial control cabinet.
The 1746-NO4V operates using 5 VDC backplane power combined with an external 24 VDC supply, ensuring sufficient drive capability for demanding analog control tasks. Its seamless integration with SLC 500 racks makes it suitable for both new system designs and retrofit projects.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Analog Output Module |
| Model Number | 1746-NO4V |
| Manufacturer | Allen Bradley |
| Series | SLC 500 |
| Number of Outputs | 4 |
| Output Signal Type | Analog voltage |
| Output Range | ±10 VDC |
| Channel Isolation | Not individually isolated |
| Backplane Power Requirement | 5 VDC |
| External Power Requirement | 24 VDC |
| Resolution | High-resolution voltage output |
| Update Type | Continuous analog output |
| Mounting Method | SLC 500 rack mount |
| Operating Environment | Industrial control cabinets and automation panels |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.204 kg |
Applications
• Analog control of variable speed drives using ±10 VDC reference signals
• Valve and actuator positioning in process automation systems
• Machine control systems requiring precise voltage-based output signals
• Integration with SLC 500 PLC systems for closed-loop control
• Industrial automation panels where multi-channel analog outputs are required
Advantages
• Four independent analog voltage outputs, enabling multi-device control
• Wide ±10 VDC output range, compatible with common industrial equipment
• Stable and accurate signal generation for precise process control
• Combined backplane and external power design, ensuring reliable output performance
• Seamless SLC 500 compatibility, simplifying system integration
• Industrial-grade construction, suitable for continuous operation
