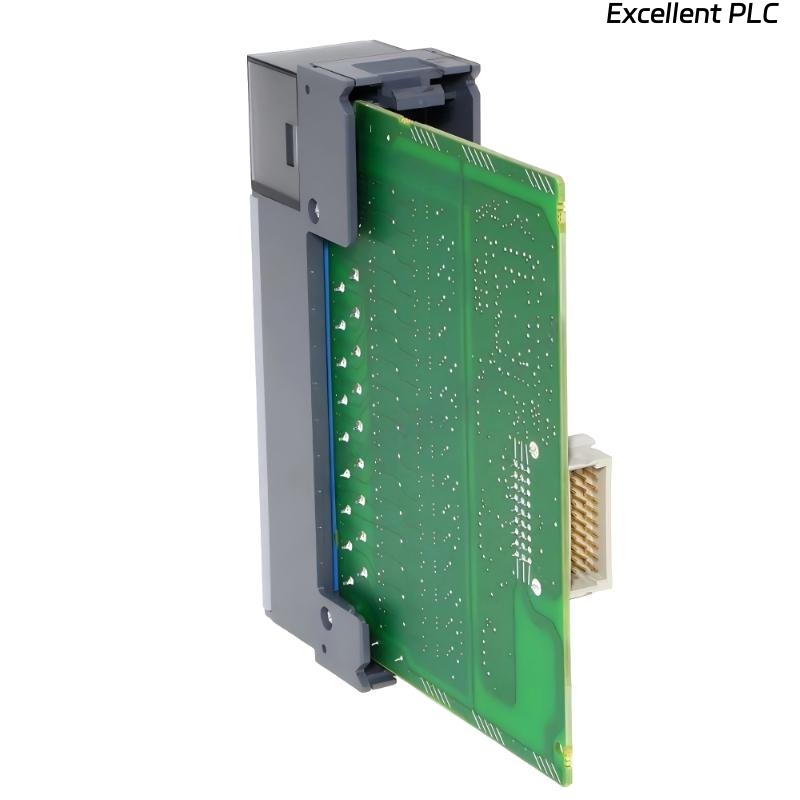

Allen Bradley 1746-OB6EI Output Module

Product Introduction

The Allen-Bradley 1746-OB6EI is a digital DC output module designed for the SLC 500 control system. It provides 6 electronically protected digital output points, making it suitable for applications that require reliable control of a limited number of DC loads with enhanced protection features.

This module is engineered to deliver stable and repeatable output performance while protecting both the module and connected field devices from electrical faults. The electronically protected outputs help mitigate the effects of overloads, short circuits, and wiring errors, improving overall system reliability. Installed directly into the SLC 500 chassis, the 1746-OB6EI supports modular system expansion while maintaining consistent operational behavior in industrial environments.

---

Product Specifications

---

Applications

• Industrial automation systems, controlling DC-driven actuators and indicators

• Manufacturing equipment, where a limited number of protected outputs are required

• Process control systems, supporting discrete control of DC devices

• SLC 500 I/O expansion, adding protected digital outputs without system redesign

• Control panels, requiring reliable and compact DC output modules

---

Advantages

• Electronically protected outputs, reducing damage from overloads and short circuits

• Compact 6-point configuration, ideal for small-scale or specialized output needs

• Reliable digital DC switching, ensuring consistent control performance

• Seamless SLC 500 integration, supporting modular system expansion

• Industrial-grade design, suitable for continuous-duty operation

• Reduced maintenance risk, due to built-in electronic protection mechanisms

FAQ

1. What is the primary function of the 1746-OB6EI module?
   It provides 6 digitally controlled DC outputs with electronic protection for SLC 500 systems.

2. How many output points are available on this module?
   The module offers 6 independent digital output points.

3. What type of protection is implemented on the outputs?
   The outputs are electronically protected against overload and short-circuit conditions.

4. Is this module suitable for DC load control?
   Yes, it is specifically designed for digital DC output applications.

5. Can the module operate continuously in industrial environments?
   Yes, it is designed for continuous industrial operation.

6. What output technology does the module use?
   It uses transistor-based digital outputs for reliable and fast switching.

7. Is the 1746-OB6EI compatible with standard SLC 500 racks?
   Yes, it installs directly into standard SLC 500 chassis.

8. What types of applications typically use this module?
   It is commonly used in automation systems requiring a small number of protected DC outputs.

9. How does electronic protection benefit the control system?
   It minimizes the risk of output failure and reduces system downtime caused by electrical faults.

10. Can this module be used alongside other SLC 500 I/O modules?
    Yes, it integrates seamlessly with other SLC 500 input and output modules.
