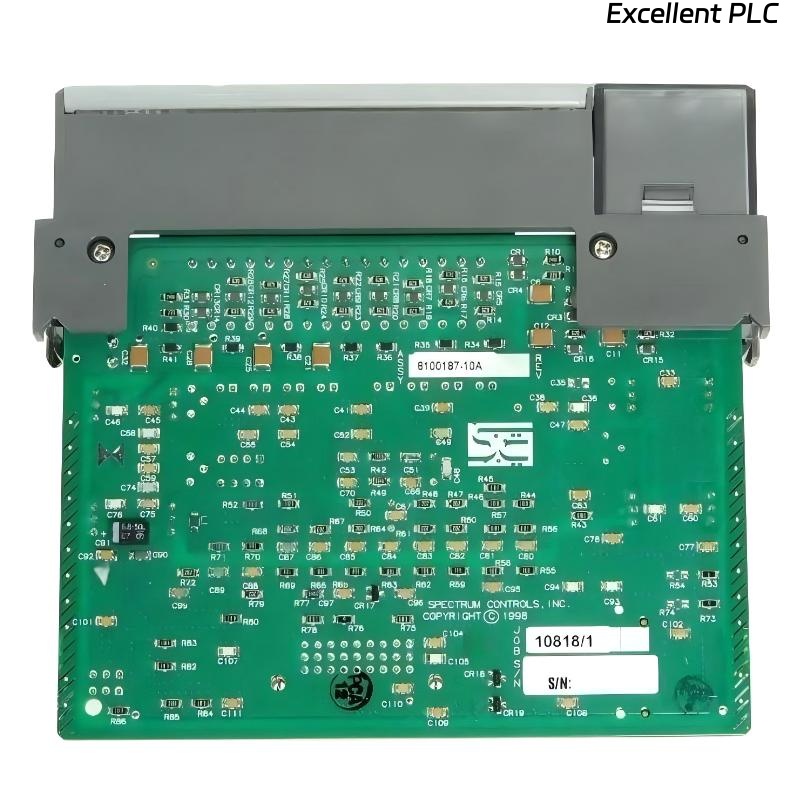

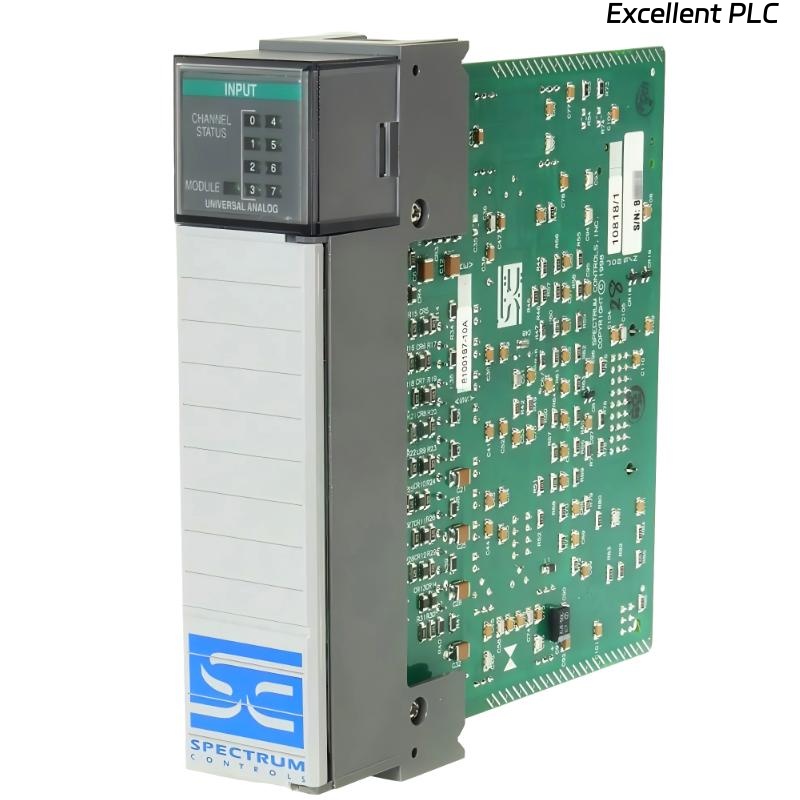

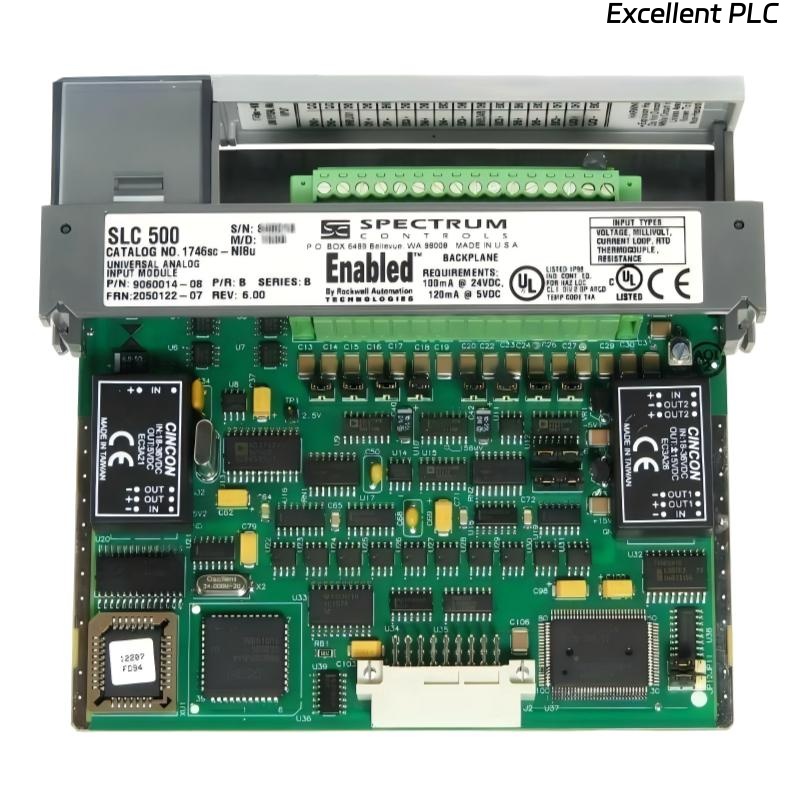

Allen Bradley 1746SC-NI8U Universal Analog Input Module

Product Introduction

The Allen Bradley 1746SC-NI8U is a universal analog input module designed for the SLC 500 PLC series. It provides 8 analog input points capable of accepting multiple signal types, including 0–20 mA current and 0–5 V voltage, offering versatility for diverse industrial applications.

Engineered for high-precision data acquisition, the module ensures reliable and isolated signal input to the PLC, protecting the system from electrical noise and interference. Its compact, rack-mounted design allows for easy installation in control cabinets and seamless integration into modular SLC 500 systems.

The 1746SC-NI8U is widely used in process control, manufacturing, and industrial automation environments requiring flexible and accurate analog signal measurement.

---

Product Specifications

---

Applications

• SLC 500 PLC systems requiring multiple analog inputs with flexible signal compatibility

• Industrial automation environments needing reliable current and voltage measurement

• Process control systems monitoring sensors with varying signal types

• Rack-mounted PLC configurations for modular and organized installation

• Manufacturing systems where both voltage and current inputs are required

• Automation environments demanding high-precision analog signal acquisition

---

Advantages

• Supports multiple input types including current and voltage signals

• Electrically isolated inputs protecting the PLC from noise and surges

• High accuracy and reliability for industrial data acquisition

• Compact rack-mounted design suitable for control cabinets

• Seamless SLC 500 integration for modular and expandable systems

• Versatile analog input module suitable for diverse process control applications

FAQ

1. How many analog input points does this module provide?
   It provides 8 input points supporting multiple signal types.

2. What signal types are supported?
   The module accepts 0–20 mA current and 0–5 V voltage inputs.

3. Are the inputs electrically isolated?
   Yes, all inputs are electrically isolated to protect the system.

4. Is it compatible with SLC 500 PLC systems?
   Yes, it integrates directly with SLC 500 chassis and modules.

5. Can it be mounted in a standard PLC rack?
   Yes, it is designed for rack-mounted installation.

6. Is it suitable for process control applications?
   Yes, it is widely used in industrial automation and process monitoring.

7. Can this module handle multiple signal types simultaneously?
   Yes, it supports both current and voltage inputs.

8. Does it provide precise analog measurements?
   Yes, it ensures accurate and reliable data acquisition.

9. Can it operate continuously in industrial environments?
   Yes, it is designed for continuous industrial operation.

10. Is it modular and expandable within SLC 500 systems?
    Yes, its design supports system expansion and modular installation.
