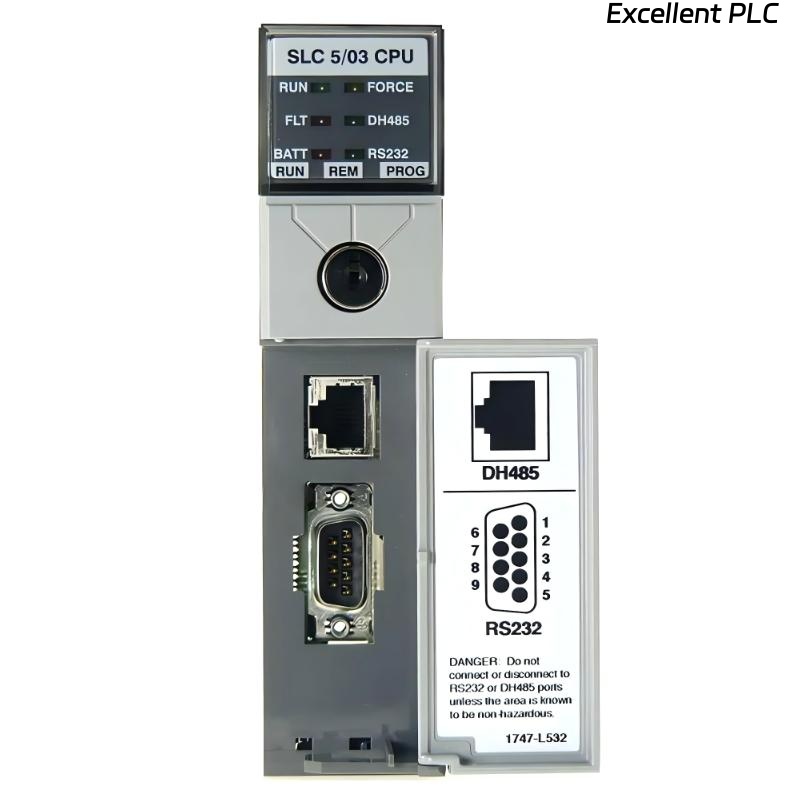

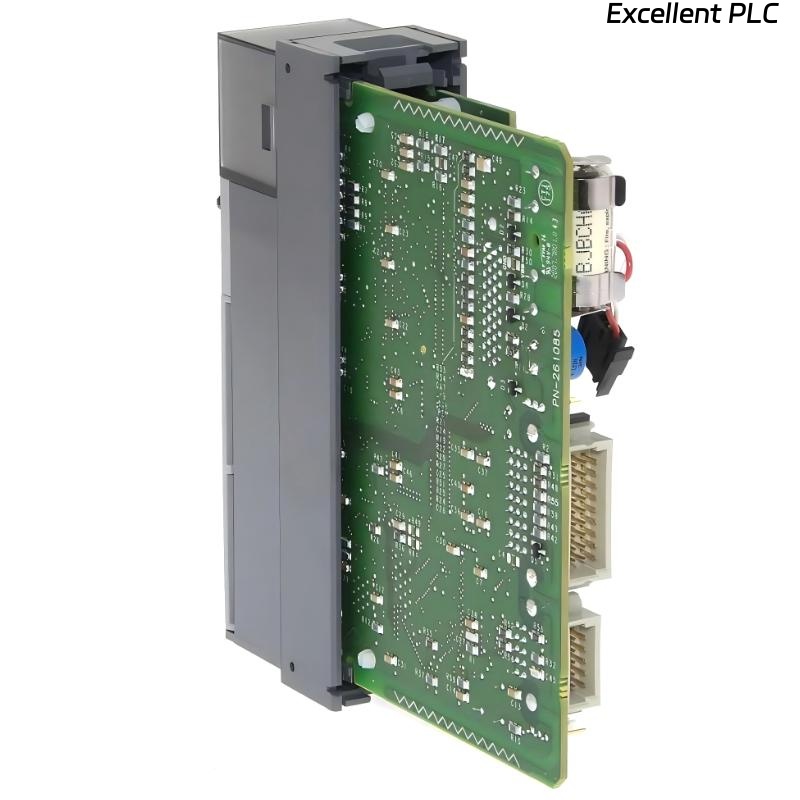

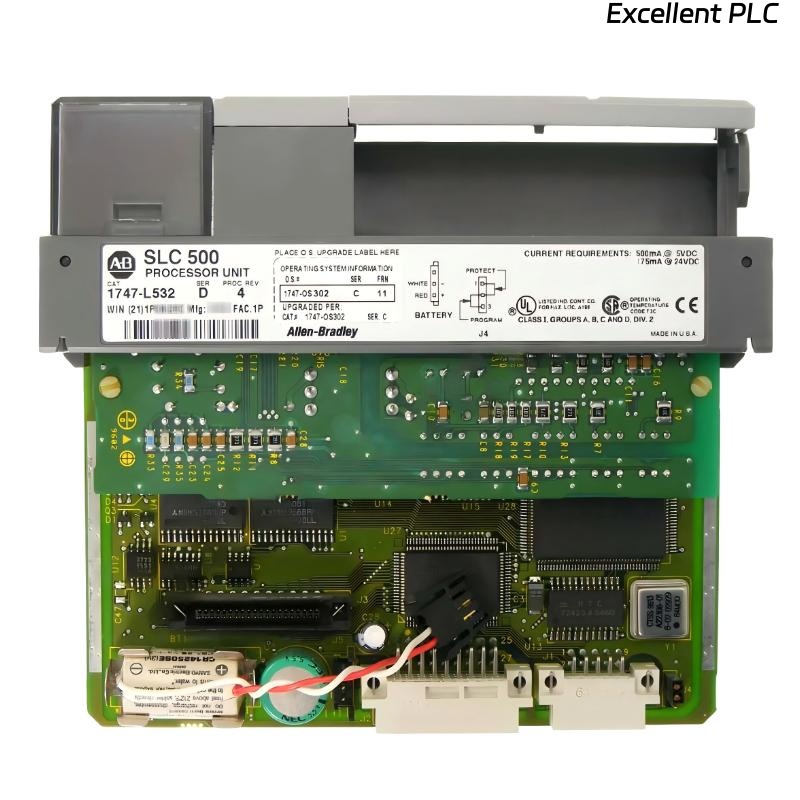

Allen Bradley 1747-L532 CPU Processor Unit Module

Product Introduction

The Allen-Bradley 1747-L532 CPU Processor Unit Module is a high-capacity SLC 500 Series controller, engineered for complex industrial automation applications that require substantial memory and large-scale I/O management. Designed for SLC 5/03 and above systems, this module provides deterministic processing for both discrete and analog control operations.

The 1747-L532 features 12K Words of program memory and 16K Words of user memory, supporting large and intricate control programs. It can manage up to 4096 input points, making it suitable for medium to large-scale automation systems. Operating across a 5–24 VDC voltage range, with a backplane current of 500 mA at 5 VDC and 175 mA at 24 VDC, the module ensures reliable, low-power integration into standard SLC 500 racks. Its combination of memory capacity, I/O handling, and efficient backplane performance makes it ideal for demanding industrial environments.

---

Product Specifications

---

Applications

• Large-scale machine and process control requiring high I/O capacity

• Advanced sequencing and logic control for manufacturing systems

• Data acquisition and monitoring across thousands of input points

• Standalone or networked SLC 500 installations requiring high memory capacity

• Industrial automation retrofits with complex control programs

• Process control systems integrating extensive digital and analog signals

---

Advantages

• High program and user memory (12K + 16K Words) supports complex control programs

• Large input capacity (up to 4096 points) for extensive automation systems

• Wide voltage range (5–24 VDC) ensures compatibility with standard industrial power

• Reliable backplane performance with low current consumption

• Compact and lightweight, suitable for constrained control racks

• Seamless integration with SLC 500 modules and networked systems

FAQ

1. What is the program memory of the 1747-L532?
   It provides 12K Words of program memory for control programs.

2. How much user memory is available?
   The module offers 16K Words of user memory for parameters and data storage.

3. What is the maximum number of inputs supported?
   It can handle up to 4096 input points.

4. What voltage range does the module support?
   The 1747-L532 operates within 5–24 VDC.

5. What is the backplane current requirement?
   The module draws 500 mA at 5 VDC and 175 mA at 24 VDC.

6. Can the module handle both discrete and analog control?
   Yes, it supports mixed-signal applications with both discrete and analog I/O.

7. Is this module suitable for standalone operation?
   Yes, it can operate independently or as part of a larger SLC 500 system.

8. Does it require additional communication adapters?
   No, it communicates directly through the SLC 500 backplane.

9. Is the 1747-L532 suitable for continuous industrial operation?
   Yes, it is designed for industrial continuous-duty use.

10. What types of applications is this CPU best suited for?
    It is ideal for large-scale machine control, complex sequencing, data acquisition, and process automation.
