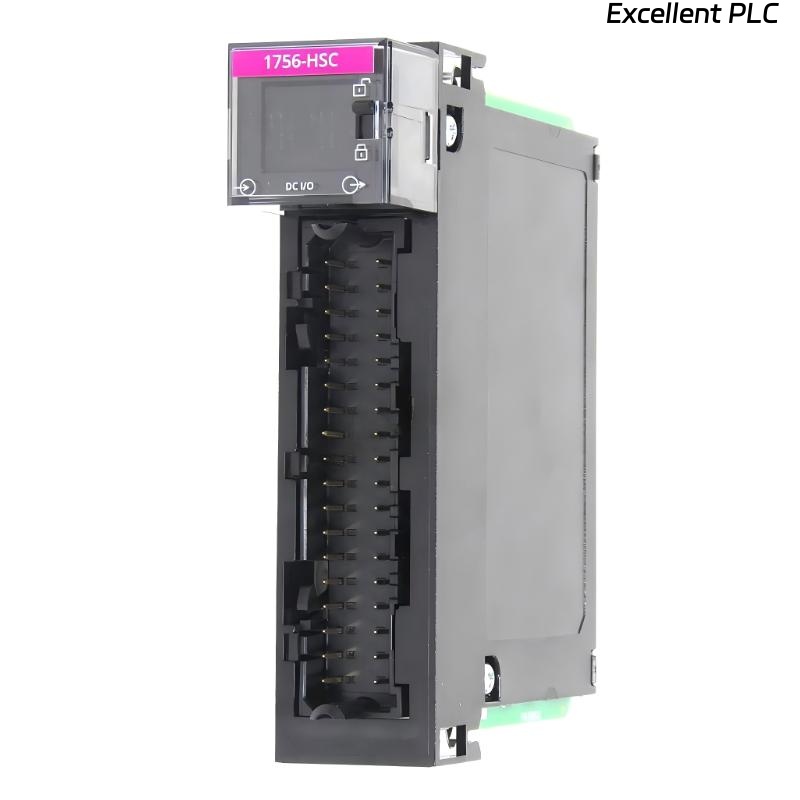

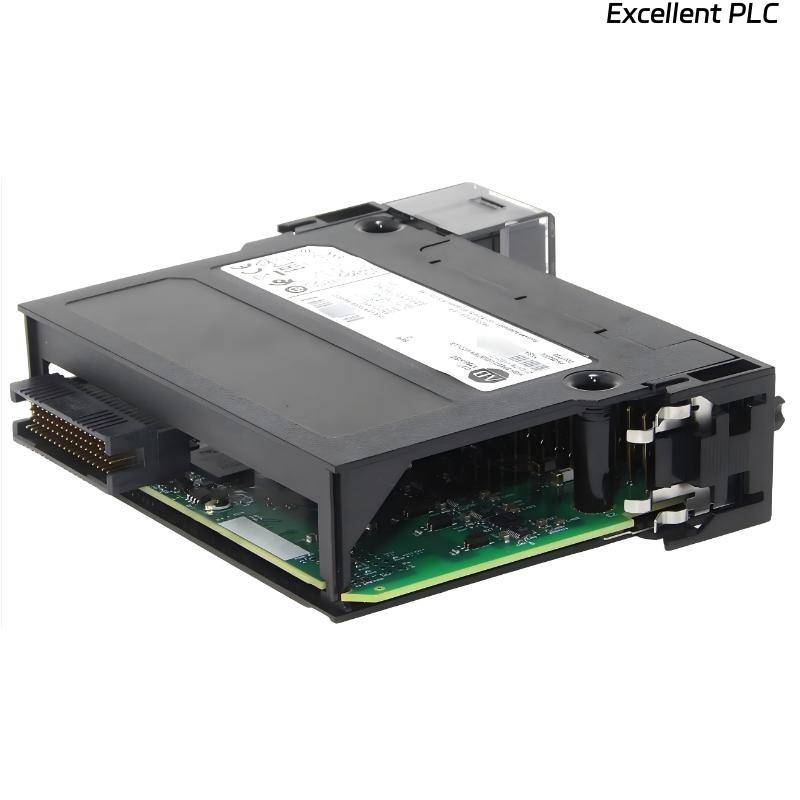

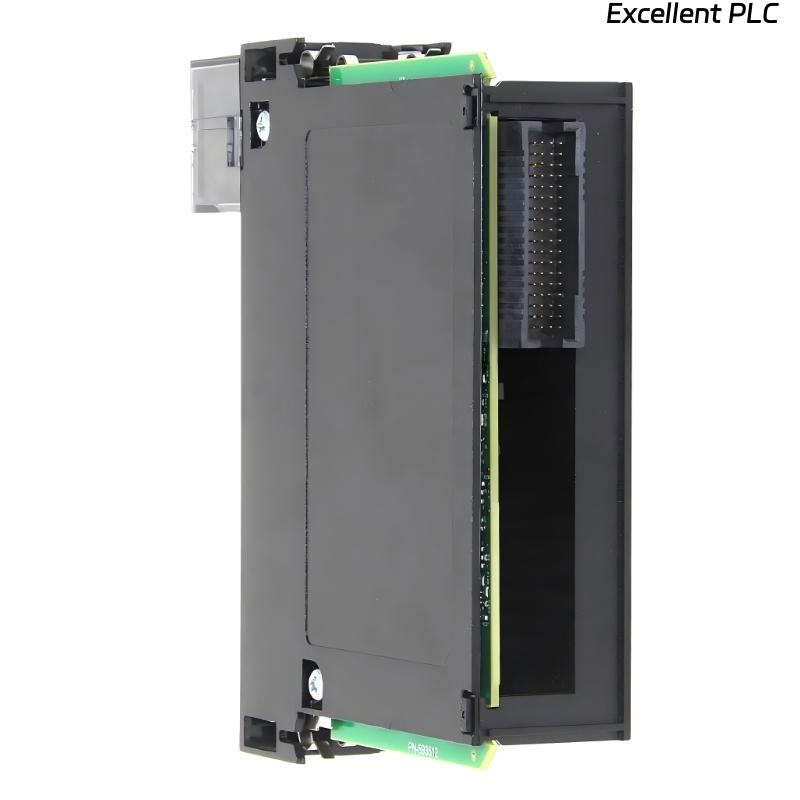

Allen Bradley 1756-HSC ControlLogix High Speed Counter Module

Product Introduction

The Allen Bradley 1756-HSC ControlLogix High Speed Counter Module is a dedicated motion and event-counting solution designed for applications requiring fast, deterministic signal processing. With a rapid response capability of 0.05 ms, the module is optimized for high-speed counting, position tracking, and pulse-based measurement tasks within ControlLogix automation systems.

Supporting two independent counter channels and equipped with a 36-pin interface, the 1756-HSC enables reliable acquisition of high-frequency input signals while providing digital output control for external devices. Its chassis-mounted design allows seamless integration into ControlLogix platforms, making it suitable for demanding industrial environments where timing accuracy and signal integrity are critical.

---

Product Specifications

---

Applications

• High-Speed Pulse Counting
Designed for accurate counting of encoder pulses and fast digital signals.

• Motion and Position Feedback Systems
Used in applications requiring precise tracking of rotational or linear movement.

• Packaging and Labeling Machines
Ensures reliable detection of high-speed events and synchronization with machine cycles.

• Material Handling Equipment
Supports conveyor systems, sorters, and automated handling lines.

• Discrete Manufacturing Automation
Improves accuracy in production lines with rapid mechanical operations.

• Test and Measurement Systems
Provides fast response and precise signal capture for industrial testing.

---

Advantages

• Ultra-Fast Response Capability
0.05 ms response time ensures accurate processing of high-frequency signals.

• Dual Independent Channels
Allows simultaneous counting or monitoring of multiple signal sources.

• Integrated Digital Outputs
Supports direct control of external devices without additional modules.

• Robust ControlLogix Integration
Installs directly into the ControlLogix chassis for reliable system operation.

• Industrial-Grade Reliability
Designed to operate continuously in demanding automation environments.

• Flexible Signal Handling
Supports a wide range of pulse-based industrial sensors and devices.

FAQ

1. What is the primary function of the 1756-HSC module?
   It is used for high-speed counting and fast digital signal processing within ControlLogix systems.

2. Why is a 0.05 ms response time important?
   It allows accurate detection of high-frequency pulses without signal loss.

3. How many counter channels does the module support?
   The module supports two independent high-speed counter channels.

4. What types of input signals can be connected?
   It is designed for 24 VDC digital input signals commonly used in industrial automation.

5. What is the purpose of the digital outputs?
   They enable direct control or triggering of external devices based on counter events.

6. Is the module suitable for motion control applications?
   Yes, it is commonly used for encoder feedback and position monitoring.

7. Can the module operate continuously in industrial environments?
   Yes, it is designed for continuous operation within standard industrial temperature ranges.

8. How does the 36-pin connector benefit system integration?
   It provides a secure and organized interface for multiple signal connections.

9. Does the module require additional communication adapters?
   No, it communicates directly through the ControlLogix backplane.

10. Is the 1756-HSC suitable for high-speed manufacturing lines?
    Yes, it is ideal for applications where rapid signal detection and response are critical.
