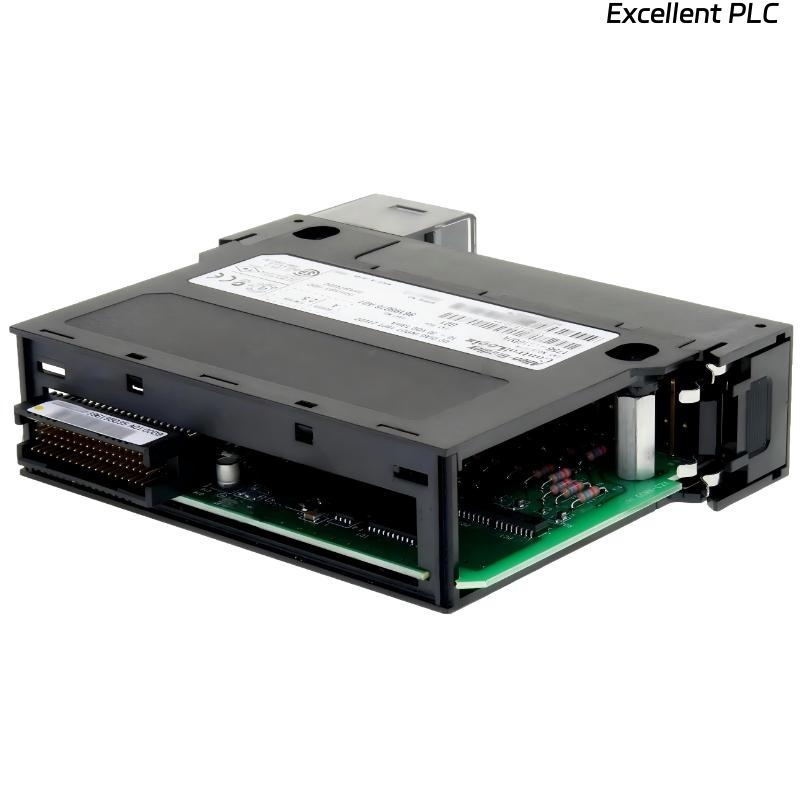

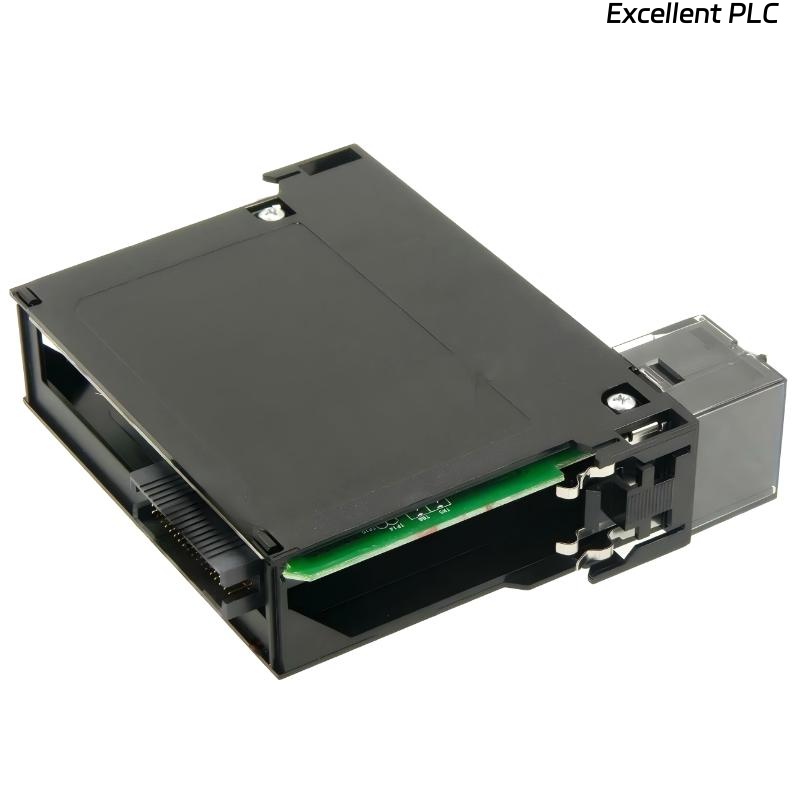

Allen Bradley 1756-IB16D/A ControlLogix Diagnostic Input Module

Product Introduction

The Allen Bradley 1756-IB16D/A ControlLogix Diagnostic Input Module is a 16-point DC input module designed to acquire diagnostic signals from field devices within ControlLogix automation systems. Operating on a 24 VDC nominal range (10–30 VDC), the module enables precise detection of digital signals for monitoring and troubleshooting purposes.

Its robust design supports continuous operation in industrial environments with operating temperatures from 0 to 60 °C. The module is ideal for applications where accurate system diagnostics and input monitoring are required.

---

Product Specifications

---

Applications

• Diagnostic Signal Monitoring
Captures digital signals from sensors, switches, and diagnostic devices for system health verification.

• Machine-Level Monitoring
Supports monitoring of operational states, alarms, and system events at the machine level.

• Process Automation Systems
Integrates diagnostic inputs to improve control accuracy and process reliability.

• Distributed I/O Architectures
Works alongside other ControlLogix modules to form a comprehensive diagnostic network.

• Industrial Troubleshooting
Facilitates detection of abnormal conditions or faults for predictive maintenance.

• Automation System Verification
Provides reliable feedback to ensure correct operation of DC-powered devices.

---

Advantages

• Diagnostic Functionality
Designed to acquire and monitor diagnostic signals for enhanced system visibility.

• High Input Density
16 DC inputs in a compact chassis-mounted module.

• Wide Voltage Range Support
Compatible with DC signals from 10 to 30 VDC.

• Seamless ControlLogix Integration
Communicates directly via the ControlLogix backplane for easy system integration.

• Industrial-Grade Reliability
Supports continuous operation within standard industrial temperature ranges.

• Enhanced System Troubleshooting
Enables fast detection of abnormal signals for improved maintenance and diagnostics.

FAQ

1. What is the primary function of the 1756-IB16D/A module?
   It provides 16-point DC diagnostic input acquisition for ControlLogix systems, allowing monitoring and troubleshooting of digital signals from field devices.

2. What voltage range does the module support?
   The module operates at 24 VDC nominal with an input range of 10–30 VDC.

3. How many input points are available?
   It offers 16 independent DC input points for diagnostic monitoring.

4. Is it suitable for continuous industrial operation?
   Yes, it is designed for stable operation within an operating temperature range of 0 to 60 °C.

5. Can it integrate with other ControlLogix modules?
   Yes, it communicates through the ControlLogix backplane for seamless integration into distributed I/O systems.

6. What types of applications benefit from this module?
   Machine-level monitoring, process automation, and diagnostic signal acquisition benefit from its accurate input detection.

7. Does it help with system troubleshooting?
   Yes, it allows detection of abnormal conditions, signal verification, and predictive maintenance.

8. Is it suitable for monitoring alarms and operational events?
   Yes, it provides reliable input acquisition for system alarms, status signals, and operational events.

9. Can it handle DC signals from sensors and switches?
   Yes, it is compatible with a wide range of 10–30 VDC field devices.

10. What is the mounting method for this module?
    It is chassis-mounted for easy installation in ControlLogix systems.
