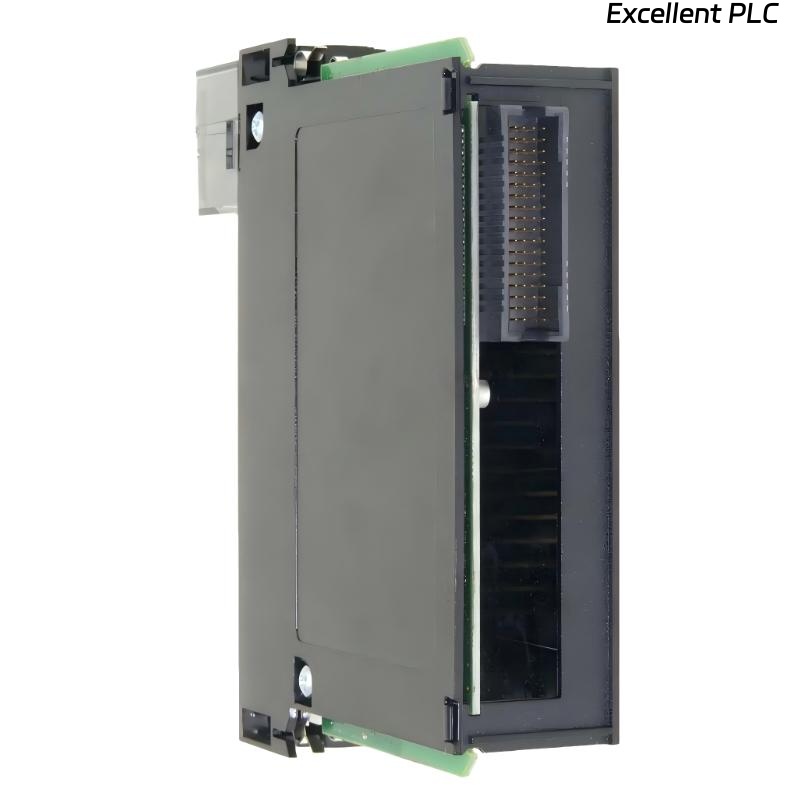

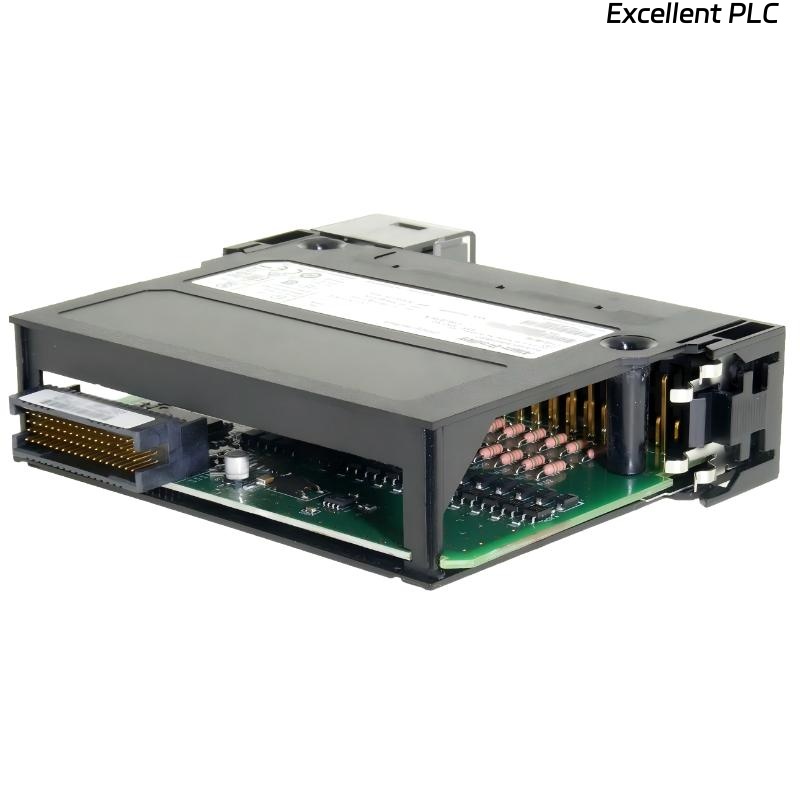

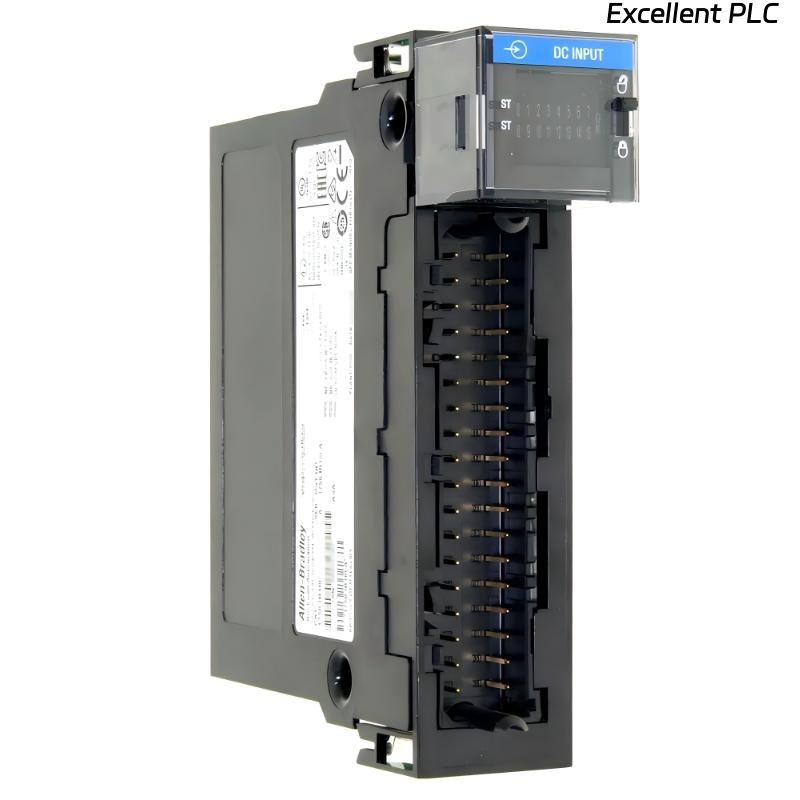

Allen Bradley 1756-IB16I ControlLogix Isolated Input Module

Product Introduction

The Allen Bradley 1756-IB16I ControlLogix Isolated Input Module is a 16-point DC input module designed to provide electrical isolation between input channels. Operating on a 24 VDC nominal range (10–30 VDC), it ensures safe, accurate acquisition of digital signals from field devices within ControlLogix automation systems.

Its isolation protects the system from voltage spikes, interference, and ground loops, making it ideal for industrial applications where signal integrity and system protection are critical. The module operates reliably in environments with temperatures from 0 to 60 °C.

---

Product Specifications

---

Applications

• Isolated DC Signal Acquisition
Provides electrical isolation to prevent interference and protect the control system.

• Machine-Level Monitoring
Captures status signals and operational conditions from sensors and actuators safely.

• Process Automation Systems
Ensures reliable input acquisition in industrial process control applications.

• Distributed I/O Architectures
Integrates with other ControlLogix modules to form scalable isolated input networks.

• Industrial Diagnostics
Helps detect abnormal conditions, transients, and signal disturbances.

• Critical Signal Applications
Ideal for systems requiring high signal integrity and protection against ground loops.

---

Advantages

• Electrical Isolation
Protects the system from voltage spikes, interference, and cross-channel effects.

• High Input Density
16 isolated DC input points in a compact chassis-mounted module.

• Wide Voltage Support
Operates with 10–30 VDC input signals, compatible with standard industrial devices.

• Seamless ControlLogix Integration
Directly mounts in ControlLogix chassis and communicates via the backplane.

• Industrial Reliability
Designed for continuous operation under standard industrial temperature conditions.

• Enhanced System Protection
Isolation enhances safety and signal integrity for critical automation applications.

FAQ

1. What is the main purpose of the 1756-IB16I module?
   It provides 16-point isolated DC input acquisition for ControlLogix systems, ensuring accurate signal monitoring while protecting the system from electrical interference.

2. What voltage range does the module support?
   It operates at 24 VDC nominal with an input range of 10–30 VDC, compatible with a variety of DC field devices.

3. How many input points are available?
   The module provides 16 isolated DC input points.

4. What is the input current per channel?
   Each input draws 10 mA, suitable for standard industrial devices.

5. What is the benefit of isolation in this module?
   Isolation prevents cross-channel interference, voltage spikes, and ground loop issues, improving system reliability.

6. Is the module suitable for continuous industrial operation?
   Yes, it operates reliably within an industrial temperature range of 0 to 60 °C.

7. Can it integrate with other ControlLogix modules?
   Yes, it communicates directly through the ControlLogix backplane for seamless system integration.

8. What types of applications benefit most from this module?
   Applications requiring high signal integrity, critical diagnostics, and machine-level monitoring benefit most from isolated inputs.

9. Does it help with system diagnostics?
   Yes, it enables detection of abnormal signals, voltage disturbances, and ensures safe input acquisition.

10. What is the mounting method for this module?
    It is chassis-mounted for easy installation in ControlLogix systems.
