Product Introduction

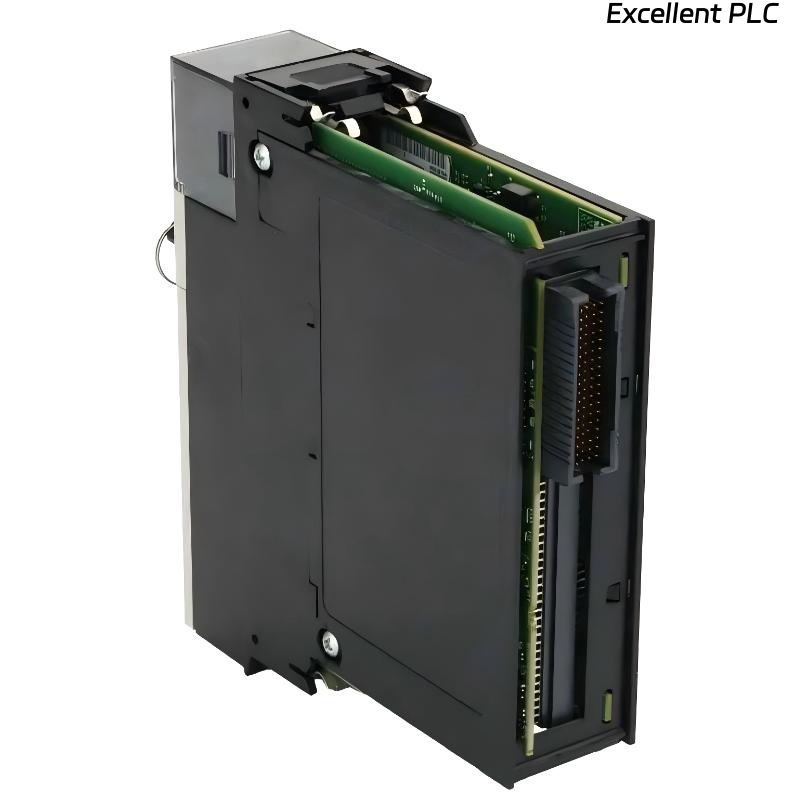

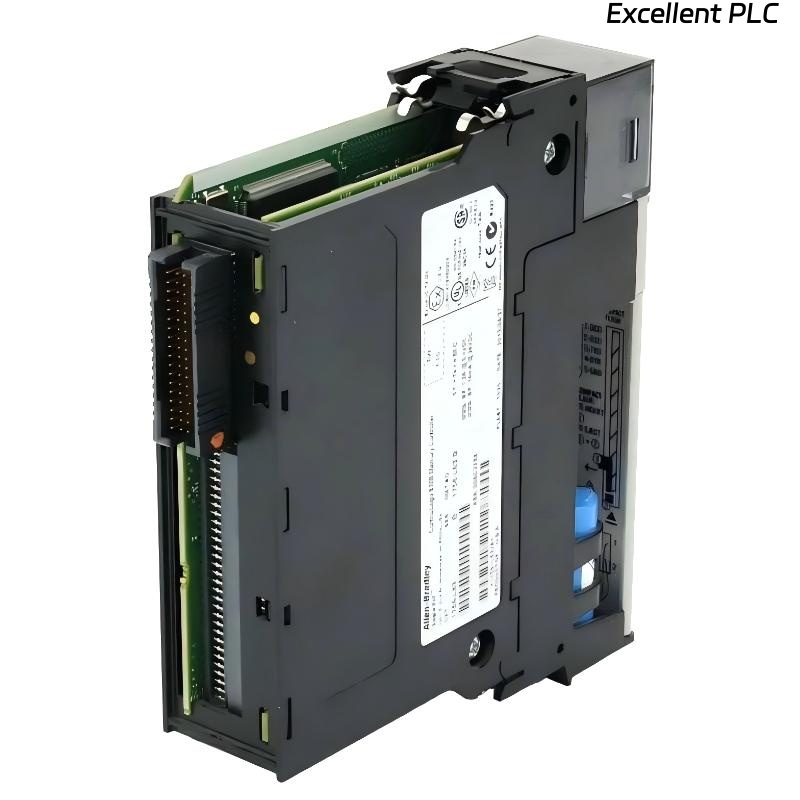

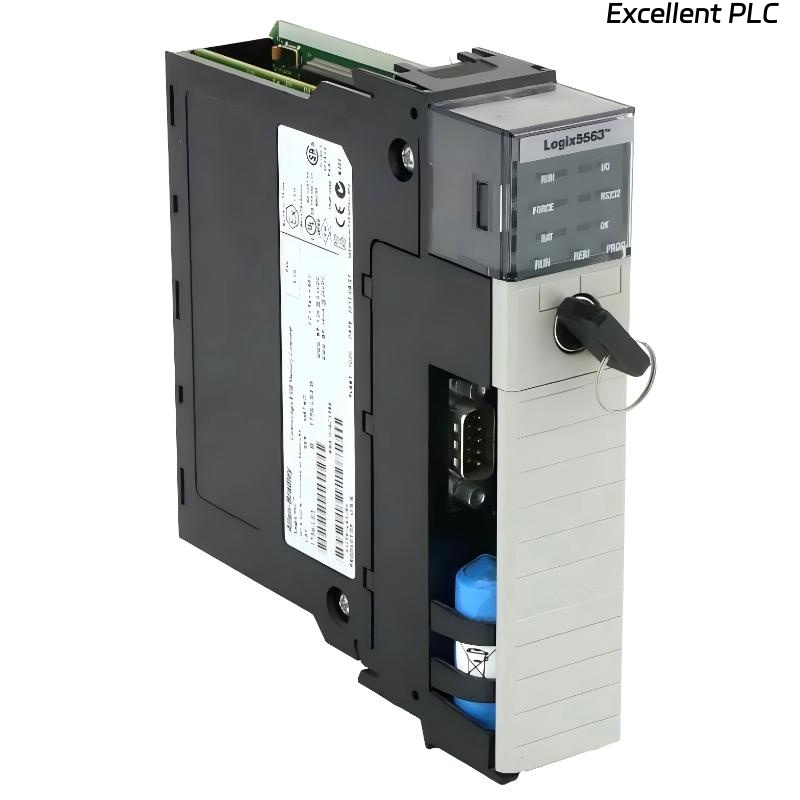

The Allen Bradley 1756-L63 ControlLogix Logix5563 Processor is a high-capacity programmable automation controller designed for complex and large-scale industrial automation systems. As a member of the ControlLogix family, this processor integrates discrete, analog, motion, and process control within a unified architecture. It is engineered to deliver fast execution, high I/O scalability, and flexible task management for demanding manufacturing and process environments.
The 1756-L63 is commonly deployed in applications where large I/O counts and rapid program execution are essential. Its modular chassis-based design allows seamless integration with ControlLogix communication, motion, and specialty modules. This architecture ensures system expandability and long-term investment protection.
With support for multiple tasks and numerous programs per task, the processor enables structured and deterministic control strategies. It is particularly suitable for automation systems requiring precise coordination between multiple machines or production lines.
Product Specifications
| Parameter | Specification |
|---|---|
| Processor Type | Logix5563 |
| User Memory | 8 MB |
| Maximum Discrete I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Program Scan Time | 0.08 ms |
| Tasks Supported | Up to 32 |
| Programs per Task | Up to 100 |
| Backplane Current @ 5 VDC | 1.2 A |
| Backplane Current @ 24 VDC | 14 mA |
| Power Dissipation | Approx. 3.5 W |
| Thermal Dissipation | Approx. 11.9 BTU/hr |
| Isolation Voltage | 30 V continuous |
| Battery | 1756-BA1 or 1756-BATM |
| Optional Nonvolatile Memory | 128 MB |
| Operating Temperature | 0 to 60°C |
| Relative Humidity | 5–95% noncondensing |
| Vibration | 10–500 Hz |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| Weight | 0.45 kg |
Applications
• Large-scale discrete manufacturing systems requiring centralized and synchronized control
• Automotive assembly and robotic production lines demanding high-speed task execution
• High-speed packaging and processing equipment with extensive digital and analog I/O
• Oil and gas process automation systems where reliability and scalability are critical
• Power generation auxiliary control including turbine and balance-of-plant systems
• Water and wastewater treatment facilities integrating distributed I/O networks
• Material handling and warehouse automation requiring coordinated multi-axis operations
The 1756-L63 enables unified control strategies across distributed architectures, making it suitable for both centralized and remote I/O systems.
Advantages
• High I/O capacity supporting up to 128,000 discrete points for large automation systems
• Fast program execution speed ensuring precise and deterministic control
• Flexible multi-task configuration with up to 32 tasks and 100 programs per task
• Modular expansion capability within the ControlLogix chassis platform
• Optional nonvolatile memory support for secure data retention
• Strong environmental adaptability for industrial vibration and humidity conditions
• Seamless integration with Studio 5000 software simplifying engineering and diagnostics
• Reliable backplane communication ensuring stable system performance
The processor offers a balance between performance, scalability, and integration, making it a practical solution for medium-to-large automation systems.
