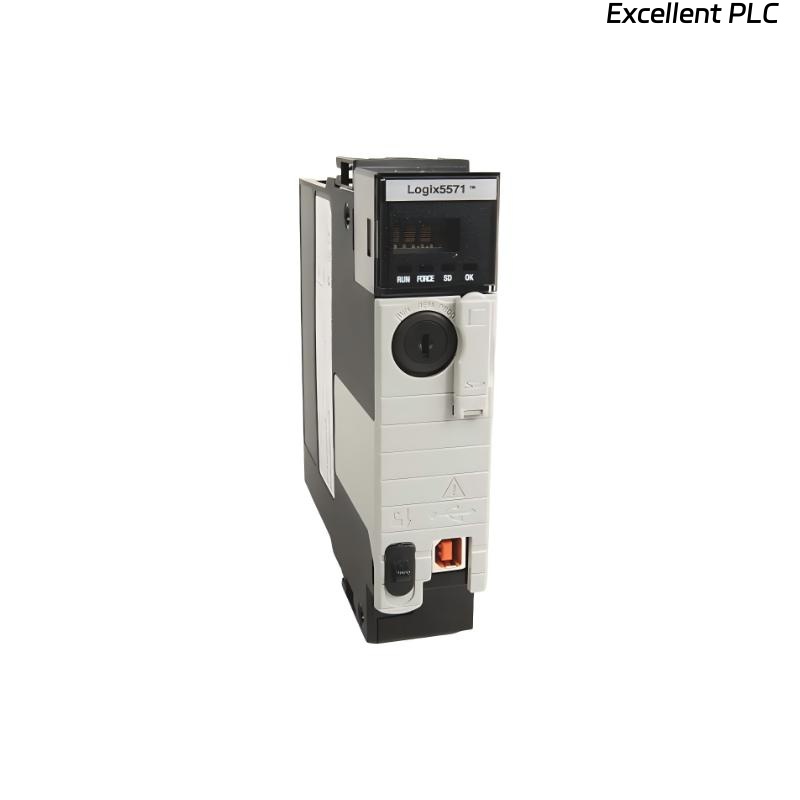

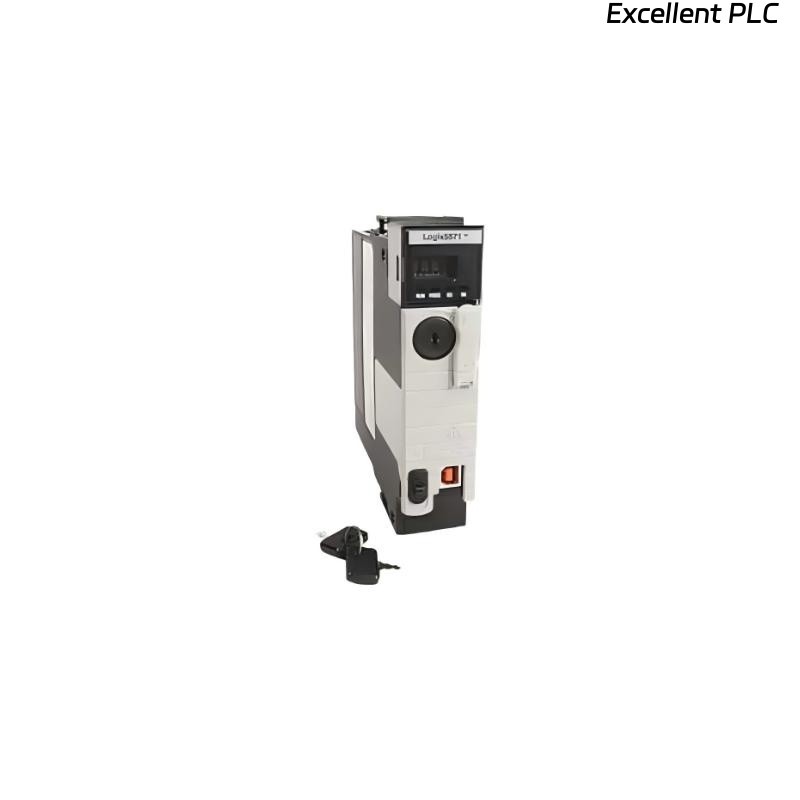

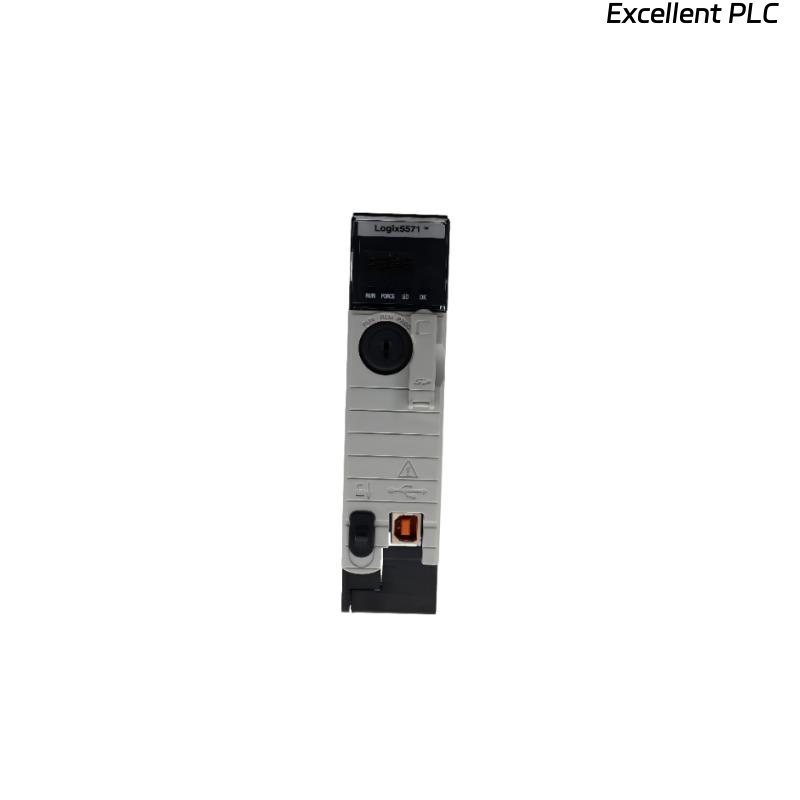

Allen Bradley 1756-L71 Controller Module (ControlLogix 5570 CPU Module)

Introduction

The Allen Bradley 1756-L71 is a high-performance ControlLogix 5570 CPU module designed for medium-to-large industrial automation applications. It offers a 7 MB user memory capacity, high-speed execution, and robust networking capabilities, making it suitable for complex machine control, distributed I/O architectures, and real-time data handling. The module is engineered to support both standard logic operations and motion control applications, providing deterministic performance for critical processes.

Technical Specifications

Applications

• Medium to large manufacturing systems requiring high-speed processing.

• Distributed I/O networks in industrial automation.

• Motion control systems including conveyors, robotics, and synchronized equipment.

• Process automation applications with real-time control needs.

• OEM machinery with advanced logic and data handling requirements.

Advantages

• High-Performance Processing: Multi-core CPU ensures fast, deterministic execution of complex programs.

• Expandable Architecture: Supports large distributed I/O networks.

• Embedded Ethernet: Provides reliable and fast communication with EtherNet/IP devices.

• High Memory Capacity: 7 MB of user memory supports large programs and data-intensive applications.

• Robust Industrial Design: Rated for vibration, shock, and harsh environmental conditions.

• Deterministic Operation: Ensures predictable response times for real-time control.

• Flexible Networking: Compatible with multiple EtherNet/IP devices and network topologies.

• Ease of Integration: Fits standard 1756 chassis and supports ControlLogix expansion modules.

• Compact Size: Standard module footprint saves panel space.

• Unified Programming Environment: Programmed via Studio 5000 for efficient development and debugging.

Technical FAQs

1. Q: What is the memory size of the 1756-L71?
   A: 7 MB of user memory for program and data.

2. Q: Does it support EtherNet/IP communication?
   A: Yes, it has a 1 Gbps embedded EtherNet/IP port.

3. Q: What is the maximum number of digital I/O points supported?
   A: Up to 128,000 points system-wide.

4. Q: Can this module handle motion control applications?
   A: Yes, it supports synchronized motion and high-speed control tasks.

5. Q: What is the operating temperature range?
   A: 0 °C to +60 °C.

6. Q: Which software is used for programming the 1756-L71?
   A: Studio 5000 Logix Designer.

7. Q: Can it integrate with existing 1756 chassis?
   A: Yes, it fits standard ControlLogix 1756 chassis slots.

8. Q: What is the maximum number of EtherNet/IP devices supported?
   A: Up to 250 devices.

9. Q: What are the dimensions of the module?
   A: 145 mm × 35 mm × 118 mm (5.7″ × 1.4″ × 4.6″).

10. Q: What is the weight of the module?
    A: Approximately 0.38 kg (0.84 lb).
