Product Introduction

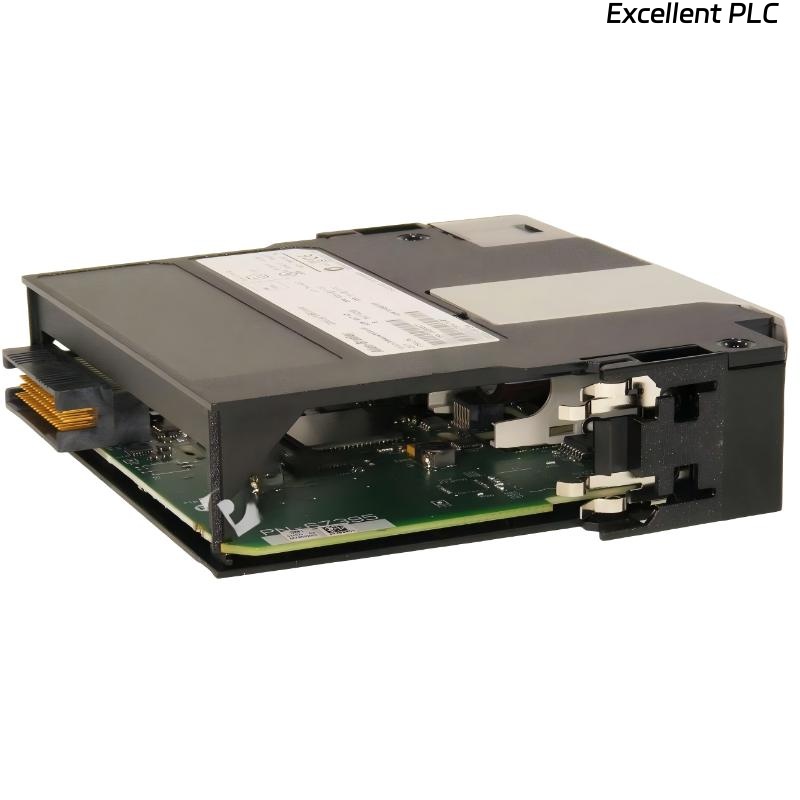

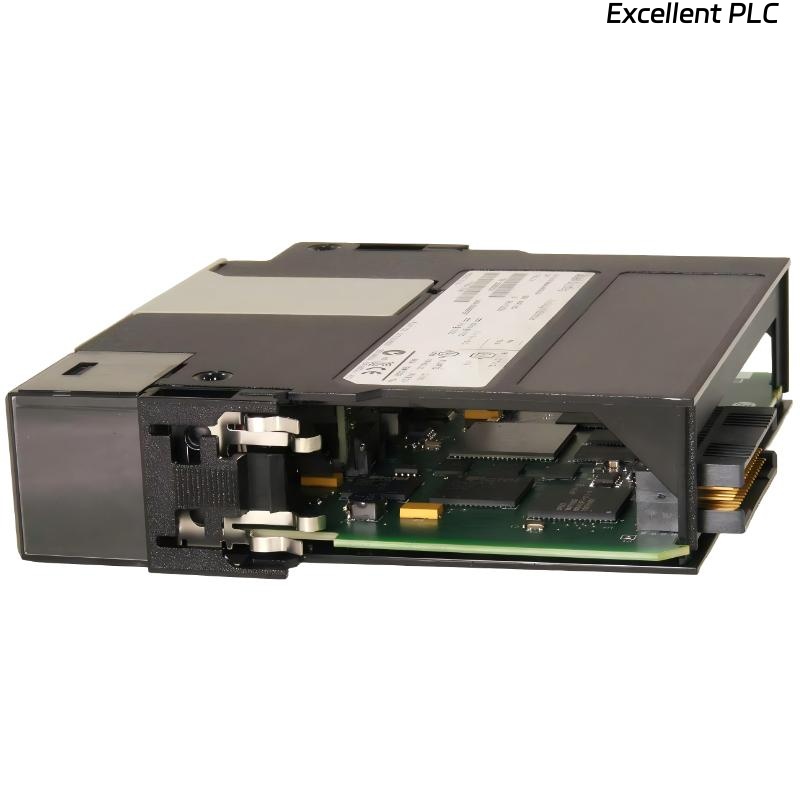

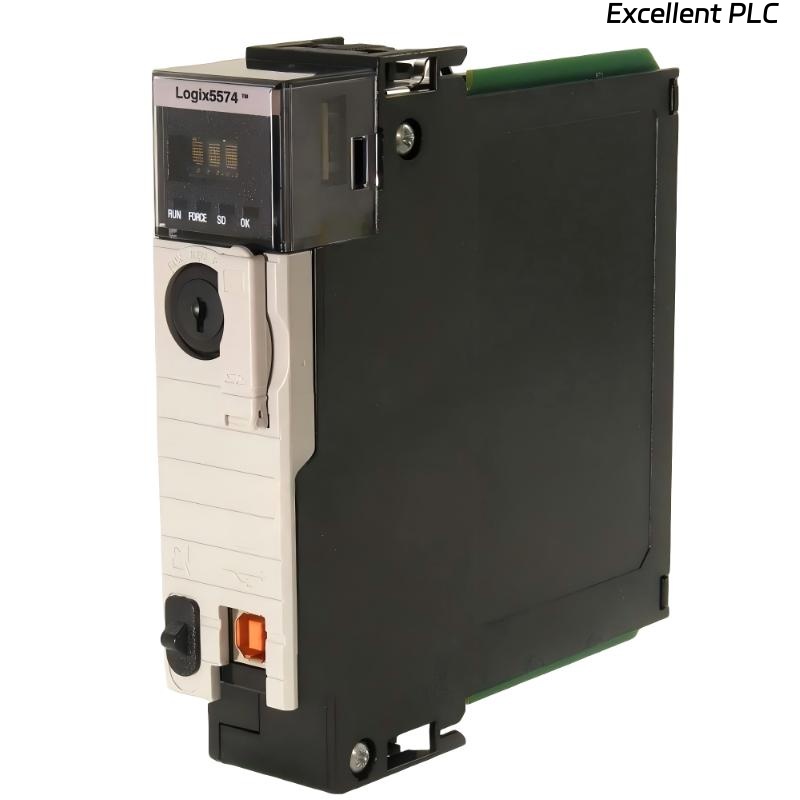

The Allen Bradley 1756-L74 ControlLogix Logix5574 Processor is a high-performance programmable automation controller designed for complex industrial automation systems requiring large memory capacity and reliable performance. With 16 MB of user memory and an I/O memory of 0.98 MB, it is capable of handling extensive digital and analog I/O operations as well as advanced automation programs.
The processor supports non-volatile memory via Secure Digital (SD) cards, providing secure storage for critical programs and data. Built-in communication interfaces and a USB device port simplify programming, firmware updates, and integration with ControlLogix I/O, motion, and communication modules.
The 1756-L74 is suitable for centralized or distributed control architectures, enabling deterministic real-time control and supporting both high-speed process automation and large-scale industrial systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Processor Type | Logix5574 |
| User Memory | 16 MB |
| I/O Memory | 0.98 MB |
| Non-volatile Memory Option | Secure Digital (SD) card |
| Built-in Communication | Yes |
| Programming Interface | USB device port |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Current Draw @ 1.2 VDC | 5 mA |
| Current Draw @ 5.1 VDC | 800 mA |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30 V continuous |
| Operating Temperature | 0 to 60°C |
| Relative Humidity | 5–95% noncondensing |
| Vibration | 10–500 Hz |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| Weight | 0.25 kg |
Applications
• Enterprise-level industrial control systems requiring high memory capacity
• Distributed automation networks with extensive digital and analog I/O
• Process automation in chemical, oil & gas, and manufacturing plants
• Material handling and packaging systems with high-speed deterministic control
• Critical industrial applications requiring non-volatile memory for secure program storage
• Real-time motion and multi-axis control systems integrated with ControlLogix modules
The 1756-L74 is ideal for environments demanding high program capacity, robust I/O handling, and reliable operation under standard industrial conditions.
Advantages
• High user memory (16 MB) supporting large-scale and complex programs
• Non-volatile SD memory support for secure storage of programs and critical data
• Integrated communication interfaces and USB device port for configuration and firmware updates
• High digital and analog I/O scalability supporting 128,000 digital and 4,000 analog I/O points
• Low power consumption with efficient current draw
• Deterministic control performance for real-time automation applications
• Robust industrial design capable of handling vibration, humidity, and temperature conditions
• Full compatibility with Studio 5000 software for programming and diagnostics
This processor provides scalable, reliable performance for large-scale industrial control while offering secure memory retention and efficient operation.
