Product Introduction

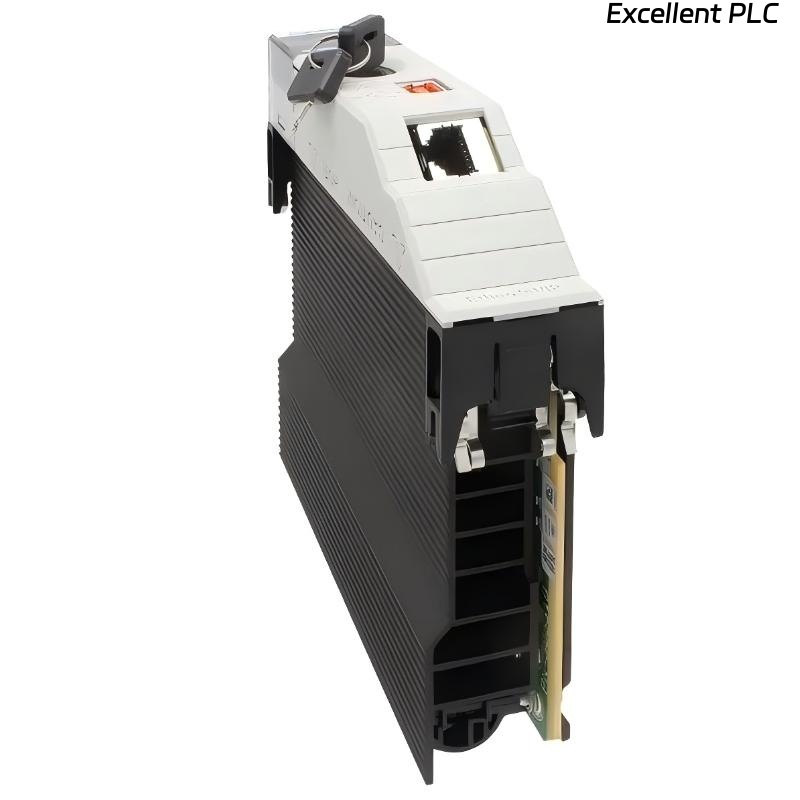

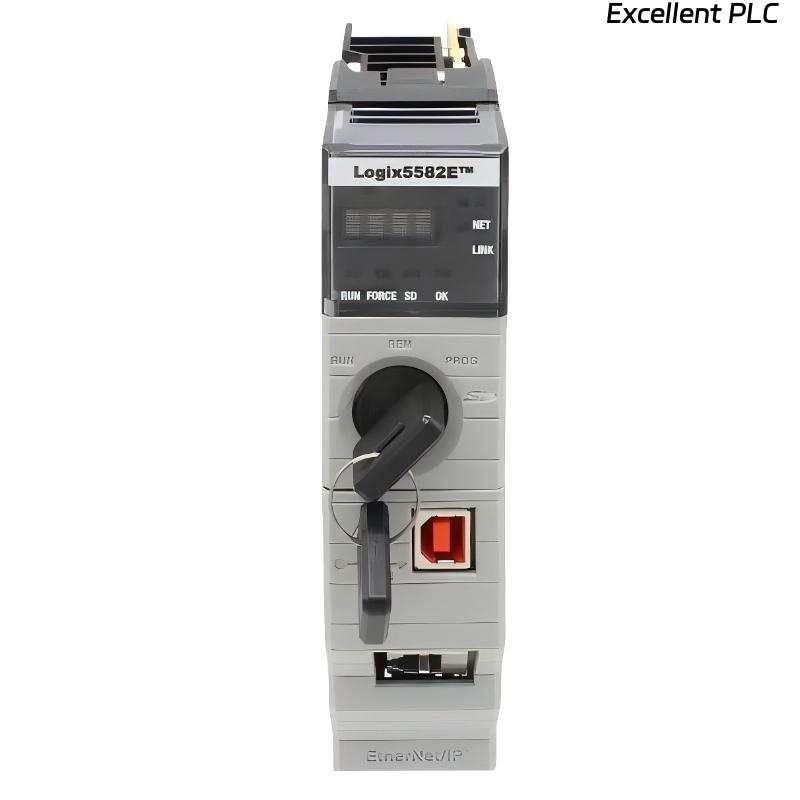

The Allen Bradley 1756-L82E ControlLogix Logix5580 Processor is a high-performance industrial automation controller designed for large-scale, networked ControlLogix systems. With 5 MB of user memory, this processor offers ample capacity for complex automation programs, supporting high-speed control, extensive I/O operations, and integration with advanced industrial networks.
Equipped with a 1 Gb EtherNet/IP port, USB port, and 4-character alphanumeric display, the 1756-L82E enables streamlined programming, configuration, and real-time monitoring. Its chassis-mount design ensures seamless integration into ControlLogix systems, while adherence to international safety and industrial standards (CE, CSA, cUL, KC, Marine, NRTL, RCM, UL) ensures reliability in a wide variety of industrial environments.
The processor is ideal for applications demanding robust network connectivity, large program capacity, and deterministic control performance, including distributed automation and complex process control.
Product Specifications
| Parameter | Specification |
|---|---|
| Processor Type | Logix5580 |
| User Memory | 5 MB |
| Embedded Ethernet | 1 Gb EtherNet/IP |
| Programming Interface | USB port |
| Display | 4-character alphanumeric |
| Mounting | ControlLogix chassis |
| Standards | CE, CSA, cUL, KC, Marine, NRTL, RCM, UL |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Current Draw @ 1.2 VDC | 5 mA |
| Current Draw @ 5.1 VDC | 1.20 A |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30 V continuous |
| Operating Temperature | Up to 60°C |
| Relative Humidity | 5–95% noncondensing |
| Vibration | 10–500 Hz |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| Weight | 0.394 kg |
Applications
• High-performance industrial control systems requiring fast processing and large program memory
• Distributed automation networks with multiple EtherNet/IP devices
• Process control applications in manufacturing, chemical, oil & gas, and batch industries
• Robotics and material handling systems requiring deterministic real-time control
• Networked industrial machinery with integrated USB programming and monitoring
• Chassis-mounted ControlLogix systems for scalable, modular automation architectures
The 1756-L82E is suitable for high-speed, network-intensive industrial applications where reliability, memory capacity, and real-time control are critical.
Advantages
• 5 MB user memory for complex automation programs
• High-speed 1 Gb EtherNet/IP connectivity for networked devices
• USB programming port for easy configuration and updates
• 4-character alphanumeric display for real-time system monitoring
• Chassis-mount design for modular ControlLogix integration
• Compliance with multiple industrial standards ensuring safety and reliability
• Supports both centralized and distributed architectures
• Deterministic performance for high-speed industrial control applications
This processor provides a balance of performance, memory capacity, and network connectivity for modern industrial automation.
