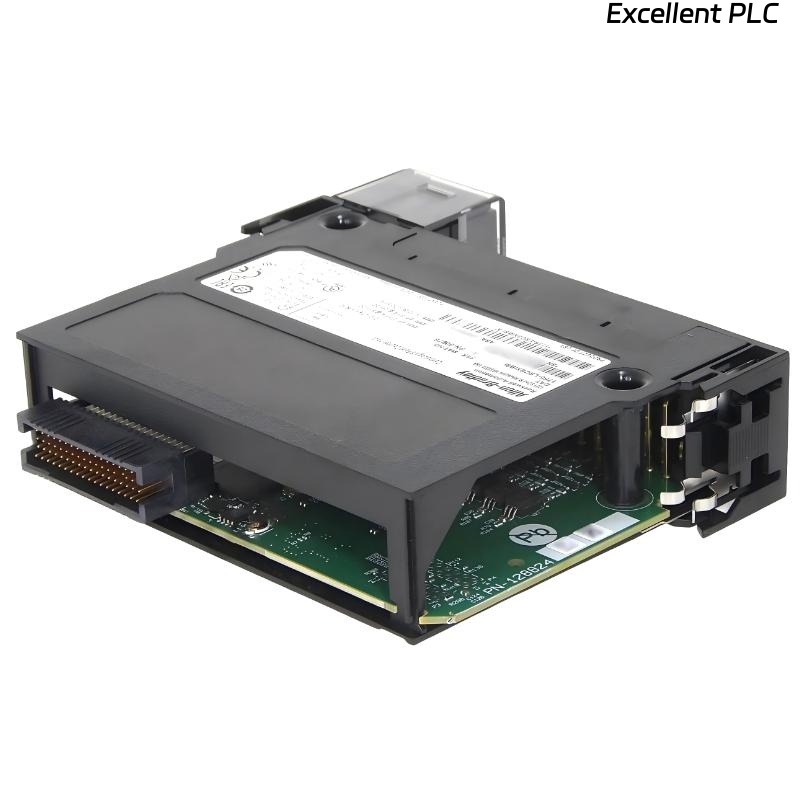

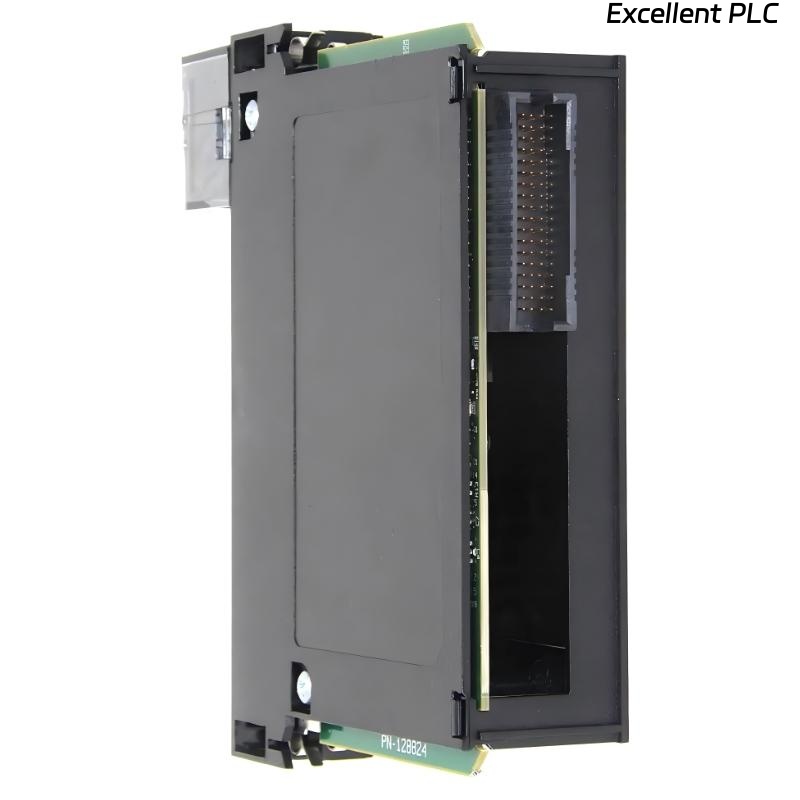

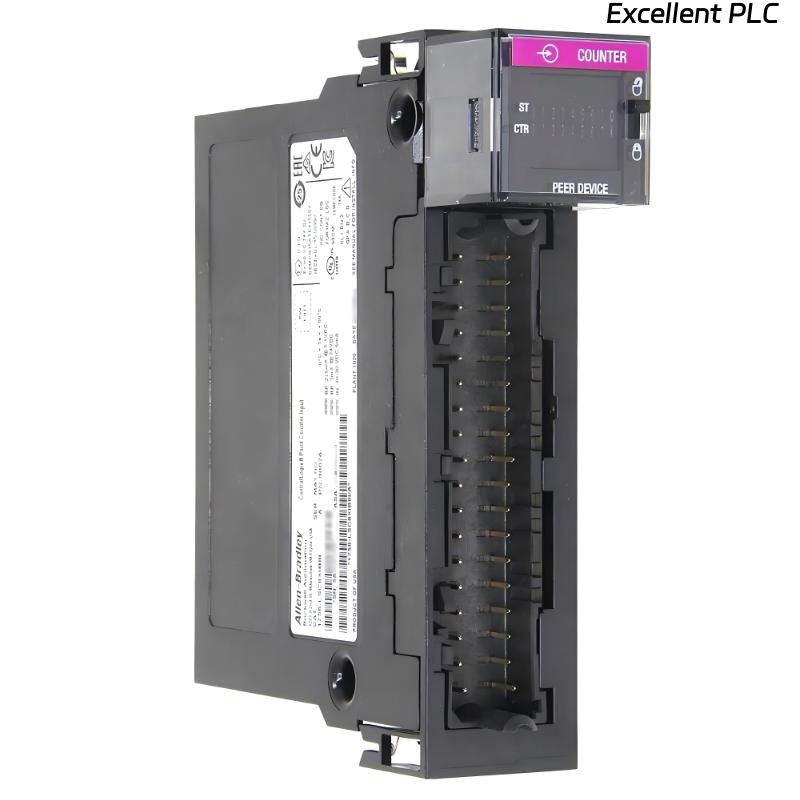

Allen Bradley 1756-LSC8XIB8I ControlLogix Low-speed Counter Module

Product Introduction

The Allen Bradley 1756-LSC8XIB8I ControlLogix Low-speed Counter Module is a dedicated counting and event detection module designed for integration within the ControlLogix automation platform. It is engineered to process low-frequency pulse signals with high reliability, making it suitable for industrial applications where accurate counting and signal isolation are essential.

Equipped with 8 individually isolated inputs, this module ensures channel-to-channel electrical separation, minimizing cross-talk and improving overall system stability. The 10–30 V DC input range allows compatibility with a wide variety of industrial sensors, including proximity switches, photoelectric sensors, and flow transmitters with pulse outputs.

The module also features a peer-to-peer input interface via a 36-pin connector, enabling direct communication between compatible modules. This reduces controller scan dependency and enhances responsiveness in distributed or coordinated automation systems.

Designed for installation in a standard 1756 ControlLogix chassis, the 1756-LSC8XIB8I offers reliable performance in industrial control panels operating within standard temperature ranges.

---

Product Specifications

---

Applications

• Used for low-speed pulse counting from encoders, flow meters, and proximity sensors

• Applied in production counting, batching, and accumulation systems

• Suitable for conveyor tracking and packaging line monitoring

• Integrated into systems requiring event detection and discrete signal monitoring

• Supports coordinated automation through peer-to-peer module communication

---

Advantages

• Provides 8 individually isolated input channels for improved noise immunity

• Wide 10–30 V DC input compatibility with common industrial sensors

• Enables faster response through peer-to-peer input communication

• Reliable operation for low-frequency pulse applications

• Seamless integration within the ControlLogix architecture

• Stable performance in industrial automation environments

FAQ

1. What type of signals can this module count?
   It processes low-speed pulse signals and discrete DC inputs from sensors such as proximity switches and flow meters.

2. Are all input channels isolated?
   Yes, each of the eight inputs is individually isolated to prevent interference between channels.

3. What is the purpose of the 36-pin connector?
   It provides peer-to-peer input capability, allowing direct communication between compatible modules.

4. Can it be used for high-speed encoder feedback?
   It is intended for low-speed counting applications; high-speed encoders typically require a dedicated high-speed counter module.

5. Is it compatible with all ControlLogix chassis models?
   It is designed to be installed in standard 1756 ControlLogix chassis systems.

6. What voltage range is supported for input signals?
   The module accepts DC signals within a 10–30 V range.

7. Does isolation improve system reliability?
   Yes, isolation reduces electrical noise and prevents faults on one channel from affecting others.

8. Can it support batching or totalizing operations?
   Yes, it is commonly used in batching, accumulation, and production counting applications.

9. How is configuration performed?
   Configuration and programming are completed using Studio 5000 Logix Designer.

10. Does the module rely solely on backplane communication?
    No, it supports both standard backplane communication and peer-to-peer input connectivity for enhanced flexibility.
