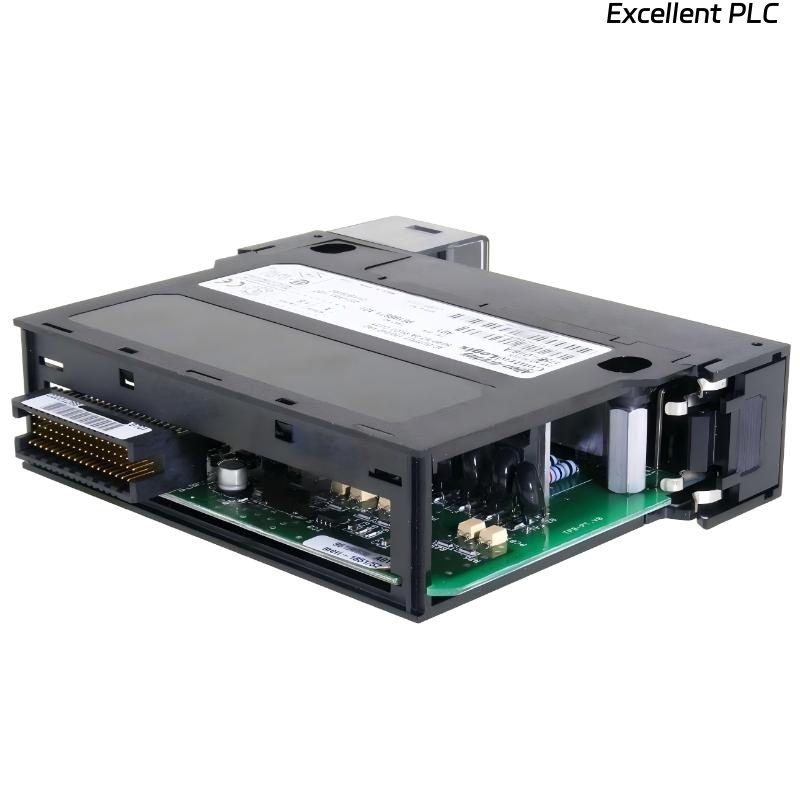

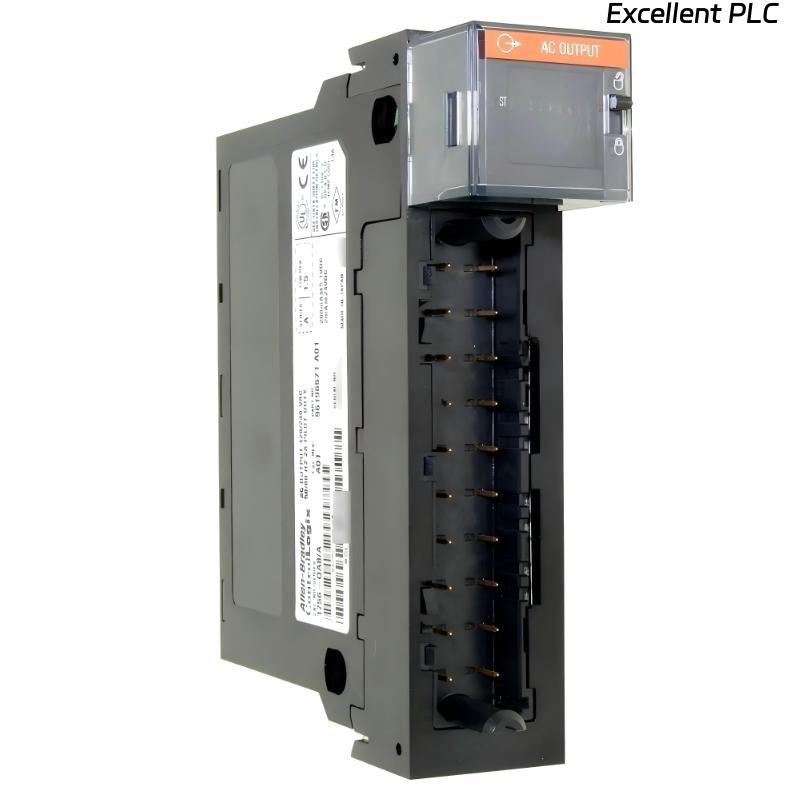

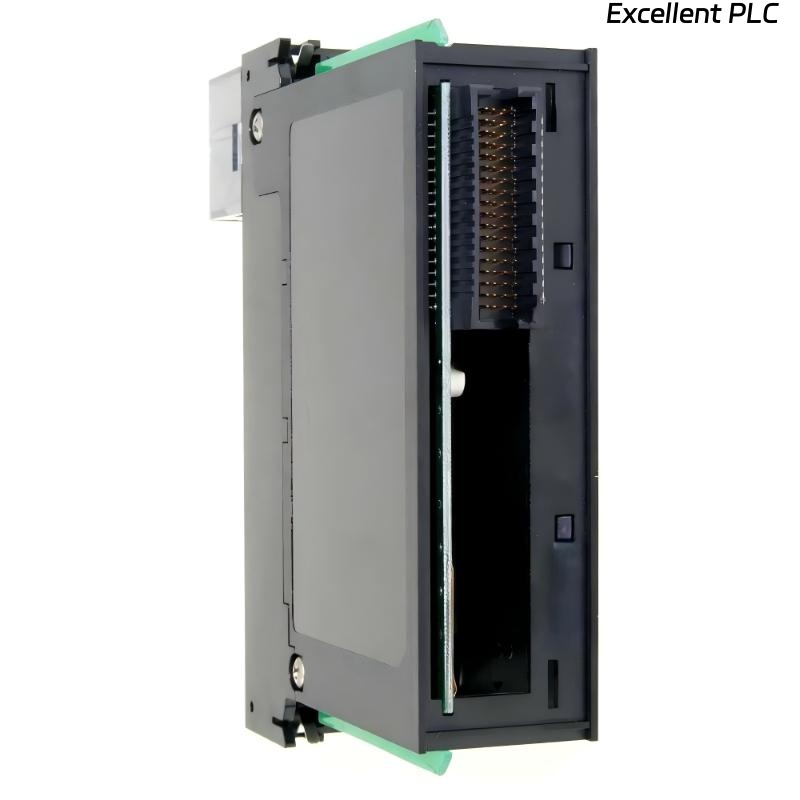

Allen Bradley 1756-OA8 ControlLogix AC Digital Output Module

Product Introduction

The Allen-Bradley 1756-OA8 is a ControlLogix AC digital output module designed for dependable switching of high-current AC loads in industrial automation systems. Built for use within the ControlLogix platform, this module delivers stable output control, predictable behavior, and tight integration with Rockwell Automation controllers and chassis infrastructure.
It is commonly applied in systems where wide AC voltage compatibility, high output current capacity, and robust field-side performance are required.

With support for a broad voltage range from 74 to 265 VAC, the 1756-OA8 is suitable for global installations operating under different power standards. Its 8-point configuration allows each output channel to handle demanding AC loads, making it an effective solution for direct control of industrial actuators without relying heavily on external interposing devices.

---

Product Specifications

---

Applications

• Used for direct control of high-current AC loads such as contactors, solenoid valves, heaters, and pilot devices

• Suitable for industrial automation systems requiring reliable switching across a wide AC voltage range

• Applied in process control and manufacturing lines where output robustness is critical

• Commonly installed in power distribution and auxiliary control panels

• Ideal for applications that require reduced reliance on external relays due to higher output current capability

---

Advantages

• High output current capacity enables direct control of demanding AC devices

• Wide operating voltage range supports global power standards and mixed-voltage installations

• Compact 8-point design balances output power with efficient chassis space usage

• Seamless ControlLogix integration simplifies configuration, diagnostics, and maintenance

• Industrial-grade construction ensures stable performance in electrically noisy environments

• Reduces overall system complexity by minimizing external switching components

FAQ

1. What types of AC loads are best suited for the 1756-OA8 module?
   The module is well suited for contactors, solenoids, motor starters, heaters, and other AC devices that require higher switching current.

2. How does the wide voltage range benefit system design?
   It allows the same module to be used across different regional power standards, reducing spare parts and simplifying panel standardization.

3. Can the module be used to drive inductive loads directly?
   Yes, it can drive inductive loads when proper wiring practices and surge suppression methods are applied.

4. How is output status communicated to the controller?
   Output states are transmitted through the ControlLogix backplane, enabling real-time monitoring via the control software.

5. Is the module suitable for continuous-duty operation?
   Yes, it is designed for continuous industrial operation within its specified electrical limits.

6. Can this module be mixed with DC output modules in the same chassis?
   Yes, AC and DC I/O modules can coexist within a ControlLogix chassis when properly configured.

7. How does the module handle electrical noise from high-power equipment?
   Its internal design, combined with proper grounding practices, helps minimize the impact of electrical noise and transients.

8. Does the module require external interposing relays?
   In many cases, the 2 A output capacity allows direct load control without external relays, depending on the application.

9. How does channel grouping affect application design?
   Grouped outputs simplify wiring and are well suited for applications where multiple outputs share common power characteristics.

10. What considerations are important when wiring high-current AC outputs?
    Correct conductor sizing, secure terminal connections, and adherence to industrial wiring standards are essential for safe and reliable operation.
