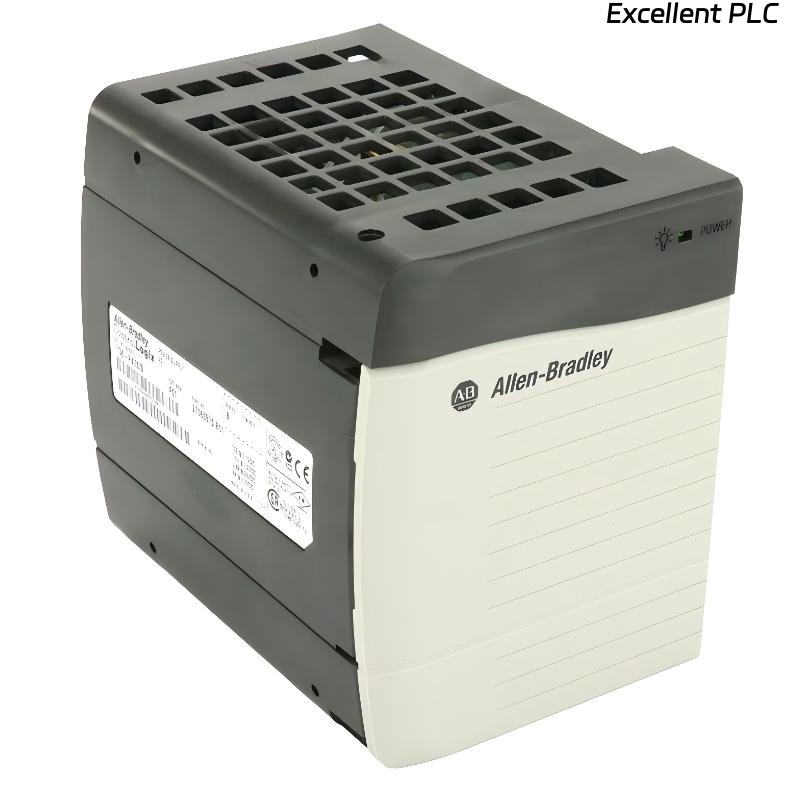

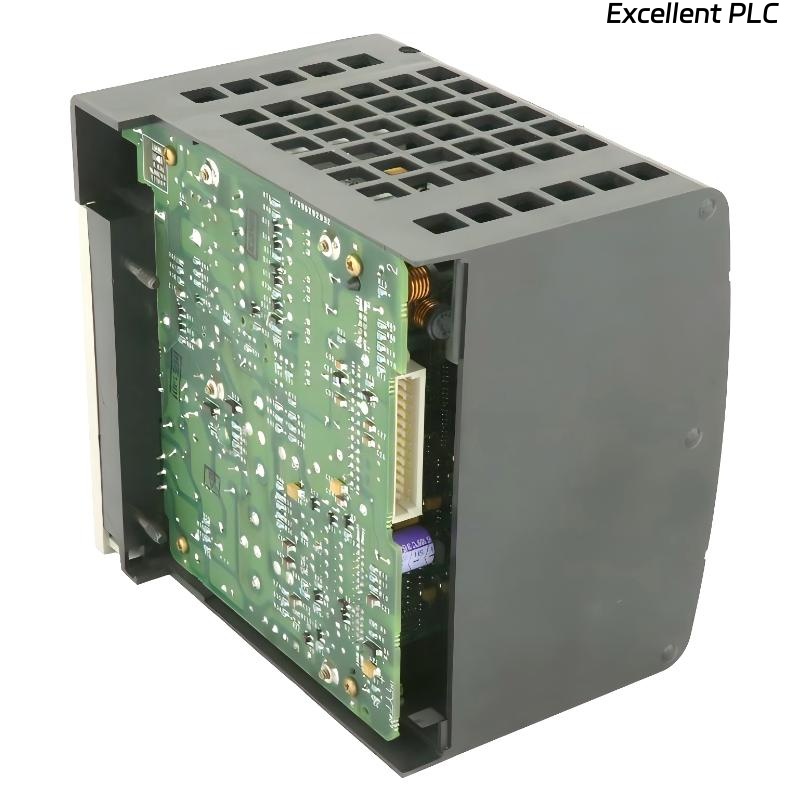

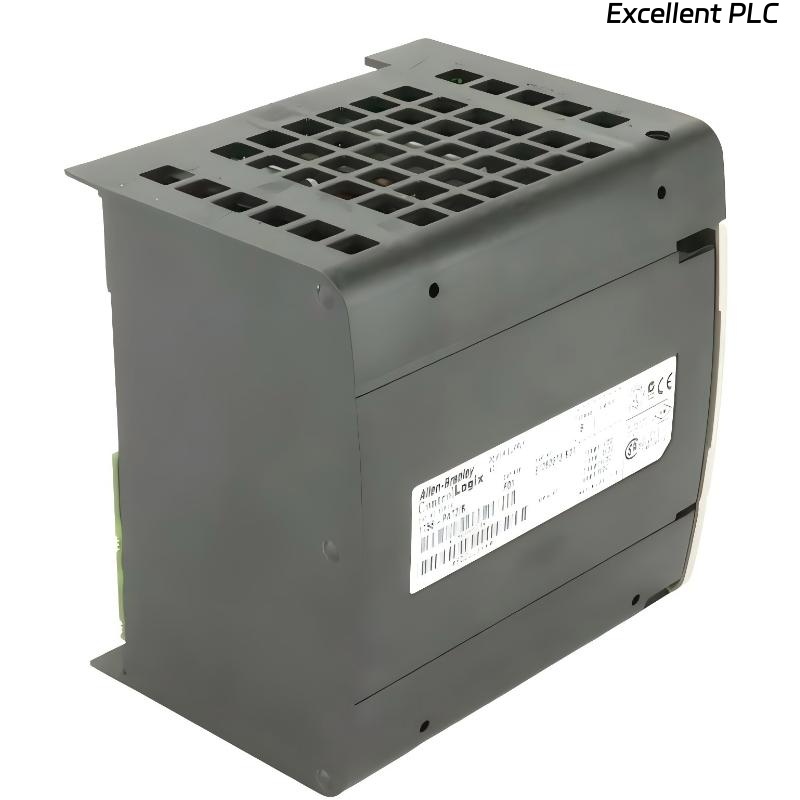

Allen Bradley 1756-PA72 ControlLogix AC Power Supply

Product Introduction

The Allen Bradley 1756-PA72 ControlLogix AC Power Supply is designed to provide reliable and regulated backplane power for ControlLogix automation systems. It converts standard industrial AC voltage into stable DC power required by the ControlLogix chassis. Installed on the left side of the rack, it becomes the primary power source for processors, communication modules, and I/O modules within the system.

This model is engineered for industrial environments where voltage stability, load consistency, and system uptime are critical. With a 20 Amp current rating and wide AC input capability, the 1756-PA72 supports demanding automation architectures, including multi-module chassis configurations.

Its design focuses on electrical robustness, internal protection, and compatibility with the ControlLogix platform, making it suitable for both new system installations and retrofit projects.

---

Product Specifications

---

Applications

• Industrial Automation Lines
Supplies stable rack power for ControlLogix PLC processors and distributed I/O modules in automated production systems.

• Process Control Installations
Used in chemical, oil & gas, water treatment, and other continuous process environments requiring dependable control power.

• Material Handling Systems
Ensures reliable backplane energy supply for motion controllers and communication modules.

• Power Generation Facilities
Provides internal chassis power in turbine control panels and plant monitoring systems where electrical stability is critical.

• Large Control Cabinets
Integrated into centralized PLC cabinets supporting multiple high-consumption modules.

---

Advantages

• Wide AC Voltage Compatibility
Supports both 120 VAC and 240 VAC systems without manual configuration.

• High 20 Amp Output Capacity
Capable of supporting fully populated ControlLogix racks under normal operating conditions.

• Built-In Industrial Protection
Features overcurrent limiting and thermal shutdown protection to prevent system damage.

• Stable Backplane Regulation
Maintains consistent DC voltage to reduce processor faults and module instability.

• Platform-Specific Integration
Designed exclusively for ControlLogix architecture, ensuring seamless electrical compatibility.

• Compact Mechanical Structure
Efficient footprint allows installation in space-constrained industrial panels.

FAQ

1. What is the primary function of the 1756-PA72 within a ControlLogix system?
   It supplies regulated internal power to the chassis, ensuring all installed modules operate reliably.

2. Can this power supply be used in environments with unstable incoming power?
   It is designed to handle typical industrial fluctuations, but external power conditioning may be recommended in severe conditions.

3. Does this unit require configuration before installation?
   No programming is required. It operates automatically once properly installed in the chassis.

4. Is the module compatible with all ControlLogix chassis sizes?
   Yes, it is designed to fit standard ControlLogix chassis configurations.

5. What should be considered before replacing the unit?
   System power should be removed and proper safety procedures followed to protect the backplane and modules.

6. How does the power supply contribute to system stability?
   By delivering consistent internal power, it reduces the risk of unexpected shutdowns or controller resets.

7. Is additional cooling required during installation?
   In most standard cabinet setups, natural ventilation is sufficient, but airflow planning is recommended in high-density panels.

8. Can this power supply be used in redundant control systems?
   It can be integrated into redundancy architectures when paired with compatible redundancy modules.

9. What installation practices improve long-term reliability?
   Proper grounding, secure mounting, and adequate ventilation help maintain consistent performance.

10. Does the module require regular maintenance?
    Routine inspection for dust buildup and ensuring secure electrical connections is generally sufficient.
