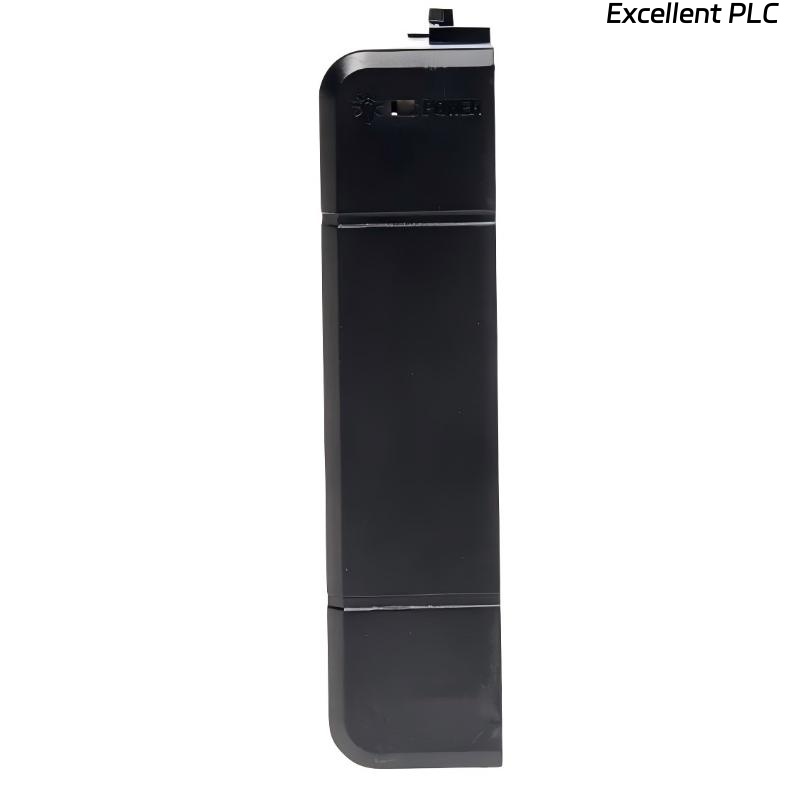

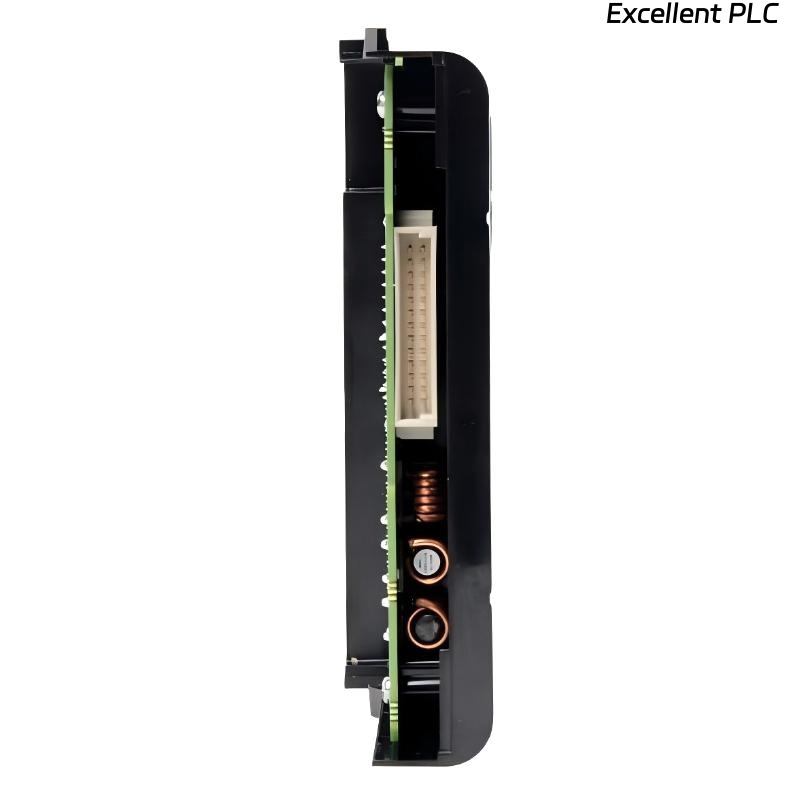

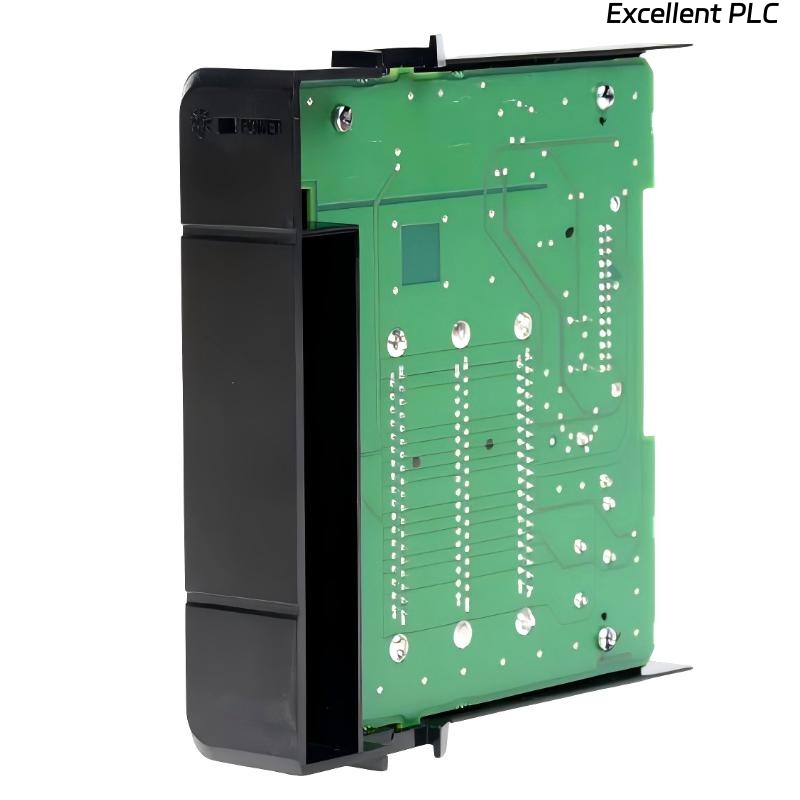

The Allen Bradley 1756-PSCA2/A is a ControlLogix Redundant Power Supply Chassis Adapter designed to facilitate dual power supply configurations within a ControlLogix system. It enables seamless load sharing between two compatible power supplies, ensuring uninterrupted power to the chassis in critical industrial environments.
This adapter is ideal for systems where high availability is required, such as process control, manufacturing, material handling, and utility automation. The 1756-PSCA2/A ensures secure backplane connectivity and provides a reliable method to integrate redundant AC or DC power supplies without additional configuration. Its compact and industrial-grade design allows easy installation within standard ControlLogix chassis while maintaining consistent backplane power distribution.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Allen Bradley 1756-PSCA2/A |
| Series | ControlLogix |
| Type | Redundant Power Supply Chassis Adapter |
| Redundancy Support | Yes, supports dual power supply operation |
| Mounting Method | ControlLogix chassis |
| Backplane Compatibility | ControlLogix standard backplane |
| Protection Features | Electrical isolation and fault protection for redundant modules |
| Dimensions | 151 x 34 x 144 mm |
| Weight | 0.45 kg |
| Operating Environment | Industrial control cabinets |
| Installation Requirement | Requires two compatible power supplies for redundancy |
Applications
• Redundant Power Configurations to eliminate single points of failure in ControlLogix systems.
• Process Automation Plants including chemical, petrochemical, and pharmaceutical facilities.
• Power Generation Systems requiring continuous PLC operation.
• High-Availability Manufacturing Lines with multiple ControlLogix racks.
• Material Handling Systems where continuous operation is critical for logistics and production.
Advantages
• Seamless Redundancy Integration — Allows two power supplies to share load for uninterrupted backplane power.
• Compact Form Factor — Minimizes chassis space usage for redundant configurations.
• Reliable Electrical Connections — Ensures stable backplane power distribution.
• Industrial-Grade Construction — Built for robust and reliable operation in control cabinets.
• Facilitates System Expansion — Simplifies upgrade from single to redundant power systems.
• Reduced Downtime — Automatic switchover during primary supply failure.
