Product Introduction

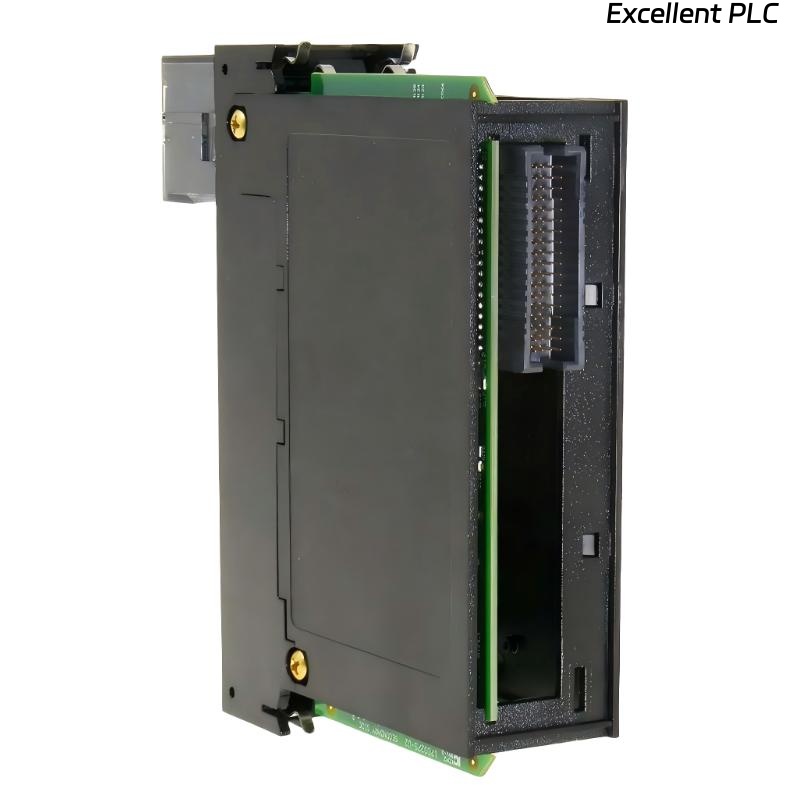

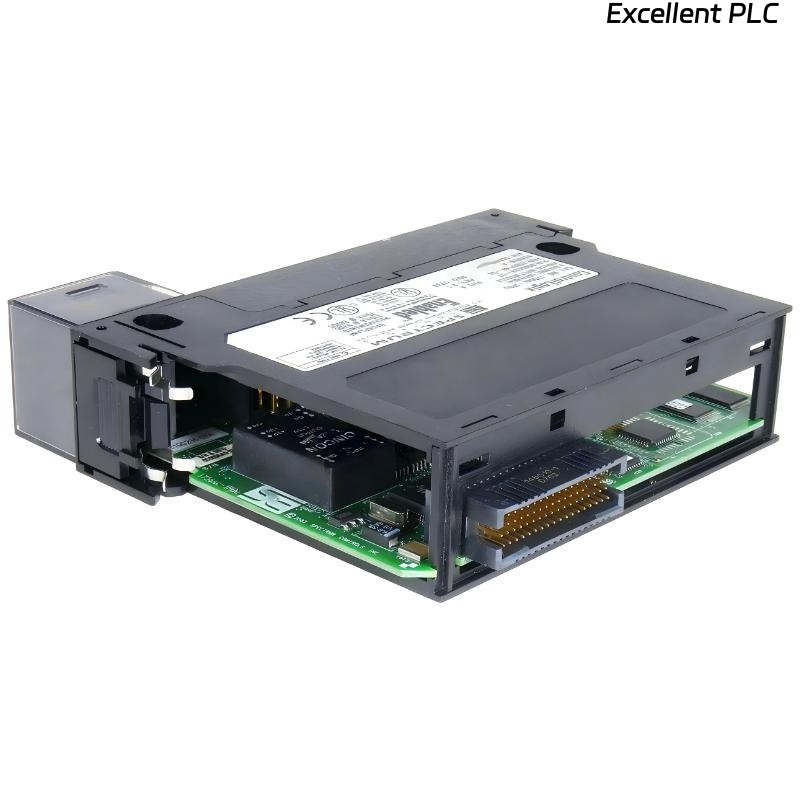

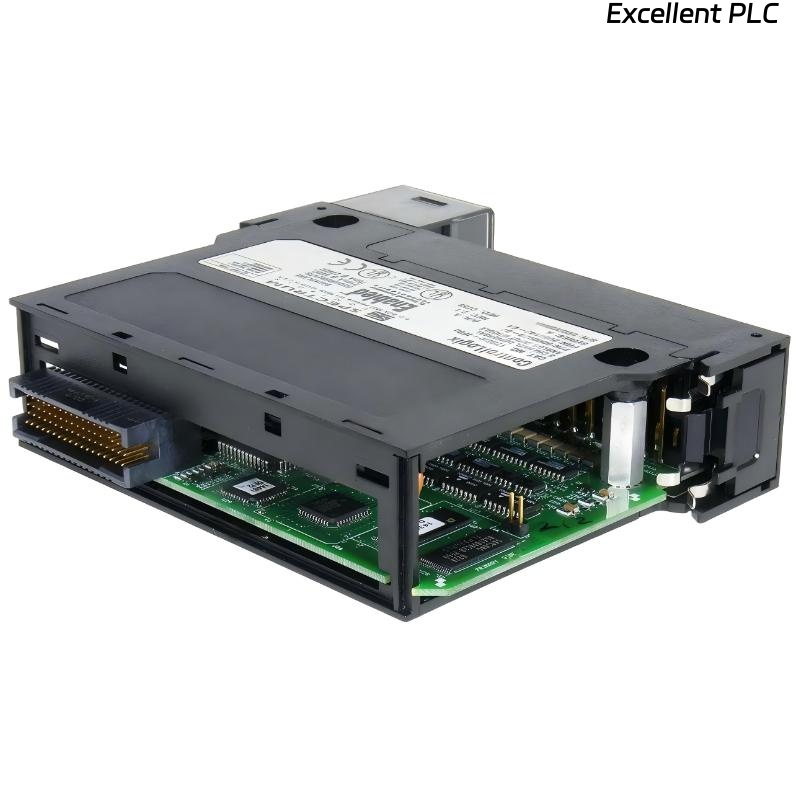

The Allen Bradley 1756SC-IF8U ControlLogix Analog Universal Input Module is an 8-point high-performance analog input module designed for demanding industrial measurement applications. Developed for integration within the ControlLogix platform, this module provides universal signal handling capability, allowing a single hardware type to accept multiple input signal formats without requiring different module variants.
With eight individually configurable input channels, the 1756SC-IF8U supports a wide range of analog signal types including voltage, current, and temperature inputs. Its universal design simplifies engineering selection, reduces spare part inventory, and enhances system flexibility in complex process environments.
The module installs directly into a standard ControlLogix chassis and communicates through the high-speed backplane architecture. Each channel can be independently configured, enabling mixed signal types within the same module. This makes it especially suitable for process industries where various transmitters and sensors coexist within the same control panel.
Designed for precision, stability, and noise immunity, the 1756SC-IF8U ensures accurate signal acquisition even in electrically harsh environments. It is commonly used in process automation systems requiring reliable analog data collection for monitoring, control, and safety interlocking applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 1756SC-IF8U ControlLogix Analog Universal Input Module |
| Manufacturer | Allen-Bradley |
| Series | ControlLogix |
| Module Type | Analog Universal Input Module |
| Number of Channels | 8 Point |
| Input Types Supported | Voltage, Current, Temperature (Universal) |
| Voltage Input Range | ±10 V, 0–10 V (configurable) |
| Current Input Range | 0–20 mA, 4–20 mA |
| Resolution | 16-bit (typical) |
| Input Impedance | High impedance for voltage inputs |
| Isolation | Channel-to-channel and backplane isolation |
| Conversion Method | Sigma-Delta A/D Conversion |
| Update Rate | Configurable per channel |
| Backplane Current Draw (5.1 V DC) | Approx. 850 mA |
| Power Dissipation | Approx. 6–7 W |
| Diagnostics | Open-circuit and over-range detection |
| Operating Temperature | Industrial temperature range |
| Installation | ControlLogix chassis slot |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| Weight | 0.848 kg |
Applications
• Process control systems requiring accurate acquisition of pressure, flow, level, and temperature signals.
• Chemical and petrochemical plants where mixed analog signal types must be processed within a single module.
• Power generation facilities monitoring turbine, boiler, and auxiliary system analog parameters.
• Water and wastewater treatment plants collecting multiple transmitter signals in distributed control architectures.
• Pharmaceutical and food processing lines requiring stable and high-resolution analog measurements.
• Oil & gas installations where universal input capability simplifies panel standardization.
• Batch control systems needing precise analog feedback for PID regulation loops.
Advantages
• Universal Input Flexibility
Each of the 8 channels can be individually configured for voltage, current, or temperature signals, reducing hardware variation.
• High Measurement Accuracy
16-bit resolution ensures precise signal acquisition suitable for critical control loops.
• Channel-to-Channel Isolation
Minimizes signal interference and improves noise immunity in industrial environments.
• Reduced Spare Inventory
One universal module replaces multiple dedicated analog input types.
• Advanced Diagnostics
Detects open circuits, over-range conditions, and wiring faults to enhance system reliability.
• Seamless ControlLogix Integration
Direct backplane communication ensures fast data exchange with the controller.
• Stable Long-Term Operation
Designed for continuous industrial duty with consistent signal integrity.
