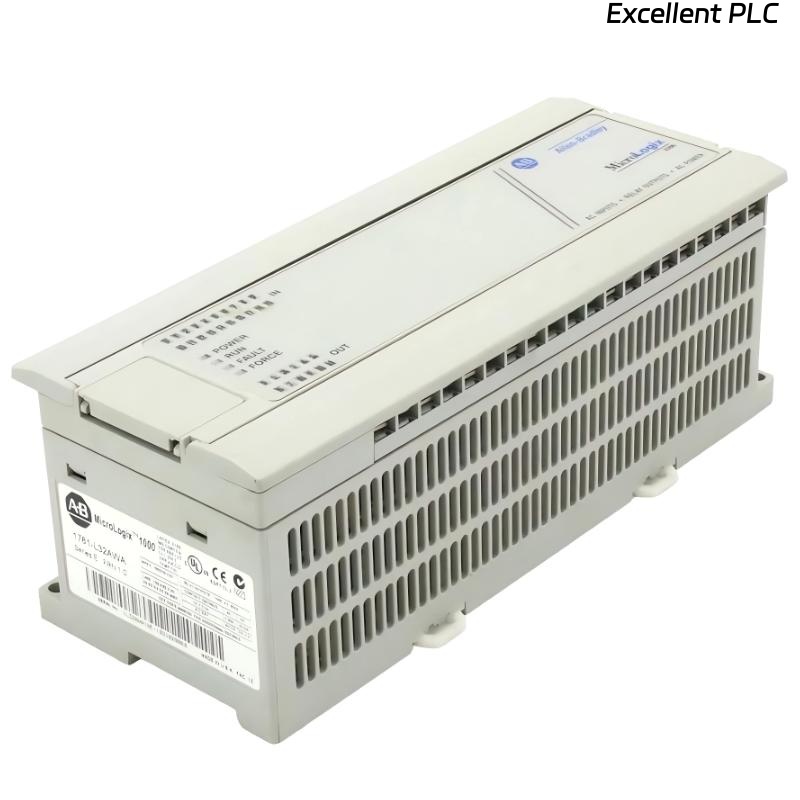

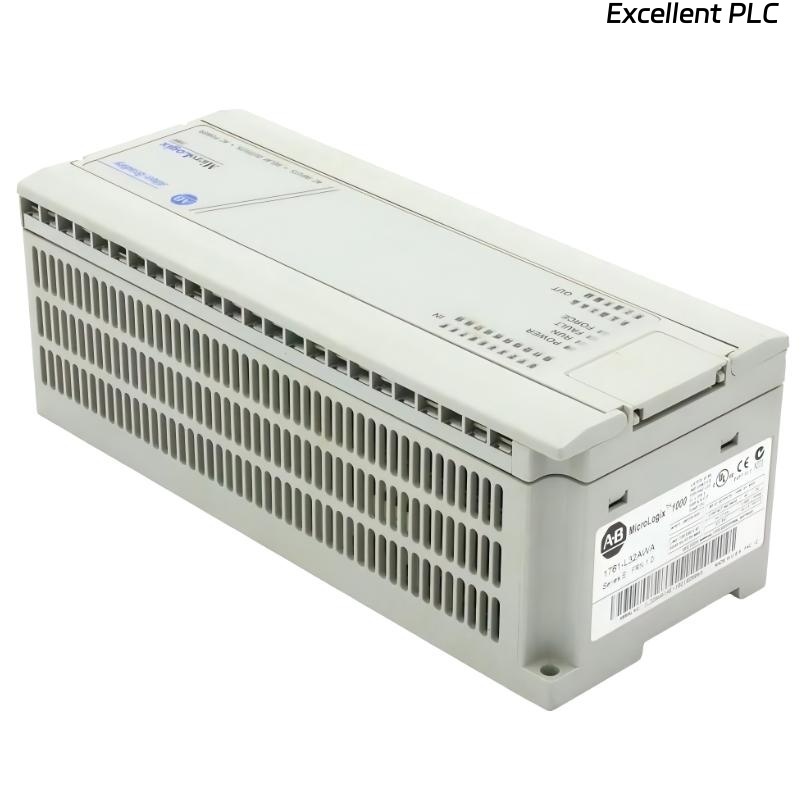

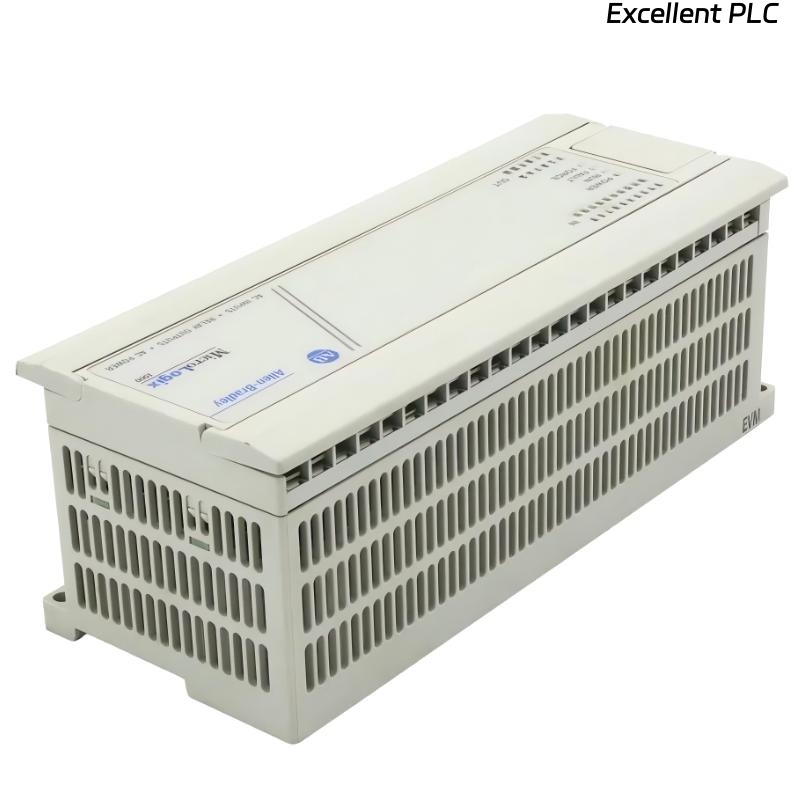

Allen Bradley 1761-L32AWA MicroLogix 1000 Programmable Controller

Product Introduction

The Allen-Bradley 1761-L32AWA MicroLogix 1000 Programmable Controller is a compact and reliable PLC designed for small-scale automation applications. As part of the MicroLogix 1000 series, it provides an economical control solution with integrated I/O, making it suitable for standalone machines and simple control systems.

This controller features 20 digital AC inputs and 12 relay outputs, supporting a total of 32 I/O points. The AC input design allows direct connection to 120/240 VAC field signals, while the relay outputs provide flexibility to control a variety of loads, including AC and DC devices. Its all-in-one structure eliminates the need for additional I/O modules, simplifying system design and installation.

With stable performance and straightforward programming, the MicroLogix 1000 controller is widely used in applications where cost efficiency, reliability, and ease of use are essential.

---

Product Specifications

---

Applications

• Small machine automation – Ideal for standalone equipment control such as packaging machines, labeling systems, and assembly devices

• Building automation systems – Used for controlling HVAC units, lighting systems, and basic facility automation

• Pump and motor control – Suitable for start/stop control and monitoring of pumps and small motors

• Material handling systems – Applied in conveyors and simple transport systems requiring basic logic control

• OEM equipment – Widely used by machine builders for compact and cost-effective control solutions

---

Advantages

• All-in-one compact design – Integrates controller, power supply, and I/O in a single unit, reducing system footprint

• Flexible relay outputs – Allows control of both AC and DC loads, increasing application versatility

• Direct AC input compatibility – Eliminates the need for signal conversion when working with 120/240 VAC inputs

• Cost-effective solution – Provides reliable PLC functionality at a lower cost for small applications

• Simple programming and maintenance – Easy to configure and troubleshoot, suitable for basic automation tasks

• Reliable industrial performance – Designed for stable operation in standard industrial environments

FAQ

1. What type of input signals does this controller support?
   It supports 120 VAC digital input signals for direct connection to AC devices.

2. What is the advantage of relay outputs?
   Relay outputs allow switching of both AC and DC loads, providing greater flexibility.

3. Can this PLC be expanded with additional I/O modules?
   No, the MicroLogix 1000 series is a fixed I/O controller and does not support expansion.

4. What communication interface is available?
   It includes an RS-232 port for programming and communication.

5. Is this controller suitable for large automation systems?
   No, it is designed for small and simple control applications.

6. What types of loads can the outputs control?
   The relay outputs can control motors, solenoids, lamps, and other electrical loads within rated limits.

7. How is the controller powered?
   It operates on a 120/240 VAC power supply.

8. Is programming complex for this controller?
   No, it uses straightforward ladder logic programming suitable for basic automation tasks.

9. Can it operate in industrial environments?
   Yes, it is designed for reliable operation in standard industrial conditions.

10. What makes it different from modular PLC systems?
    It has a fixed I/O configuration and compact design, making it simpler but less scalable than modular systems.
