Product Introduction

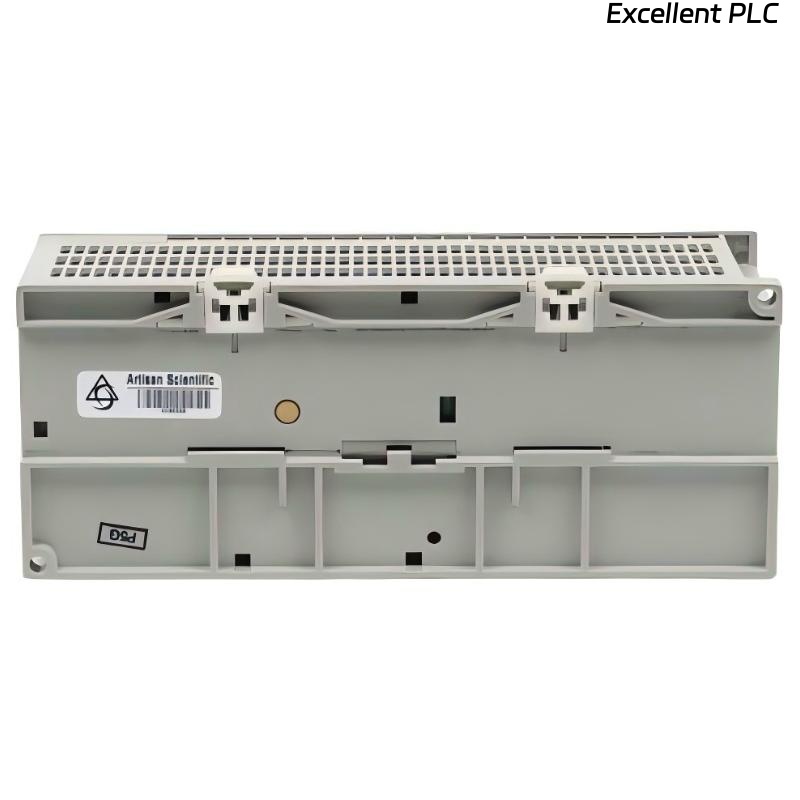

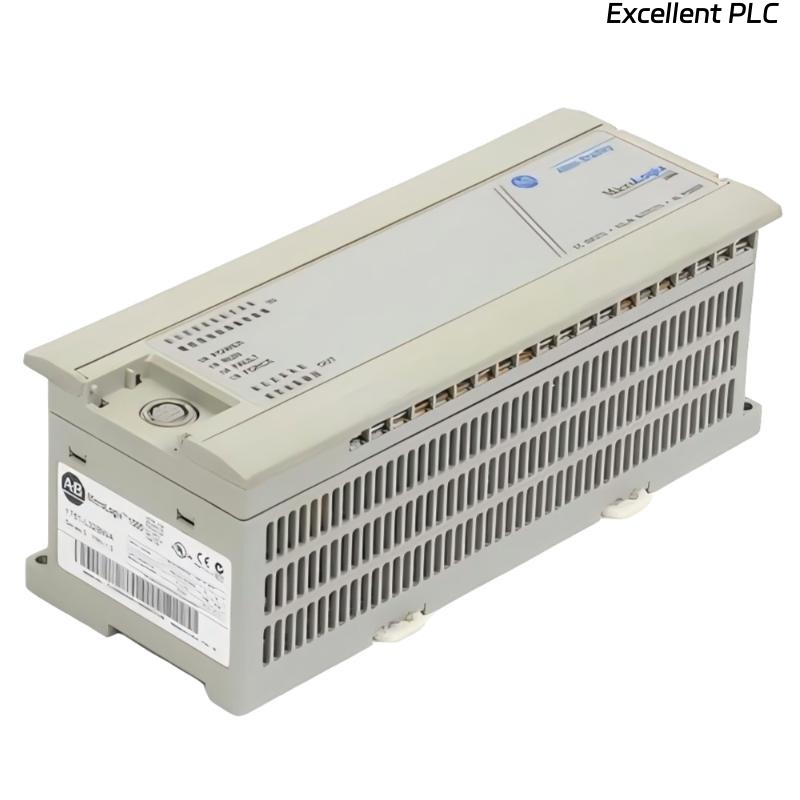

The Allen-Bradley 1761-L32BWA is a MicroLogix 1000 programmable controller designed for medium-scale automation systems requiring AC-powered operation. Operating on 120–240 VAC at 50/60 Hz, it features 20 digital inputs and 12 outputs, providing reliable control and monitoring capabilities for small industrial processes, OEM machinery, and production line automation.
With its robust AC power compatibility and versatile I/O, the 1761-L32BWA is ideal for applications needing a higher I/O count, flexible control of digital devices, and integration into compact control panels for OEM or industrial use.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 1761-L32BWA |
| Product Series | MicroLogix 1000 |
| Controller Type | Compact PLC |
| Power Supply | 120–240 VAC, 50/60 Hz |
| Digital Inputs | 20 × AC Inputs |
| Outputs | 12 × Relay/Device Outputs |
| User Memory | 8 KB EEPROM |
| Communication Port | RS-232 Serial Port |
| Programming Software | RSLogix 500 |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 200 × 73 × 80 mm |
| Weight | 0.91 kg |
Applications
● Medium-scale machine automation for OEM and industrial equipment.
● Process control systems with high digital input and output requirements.
● Motor, actuator, and solenoid control using relay outputs.
● Signal monitoring, alarms, and status indication.
● Panel-mounted OEM machinery applications.
● Small production or packaging lines requiring flexible I/O control.
Advantages
● High I/O count with 20 inputs and 12 outputs for complex automation tasks.
● AC-powered operation compatible with 120–240 VAC systems at 50/60 Hz.
● Reliable relay/device outputs for versatile control of actuators and indicators.
● Compact design suitable for panel-mounted integration.
● 8 KB EEPROM memory ensures stable program retention.
● Programming via RSLogix 500 provides ease of configuration and maintenance.
