Product Introduction

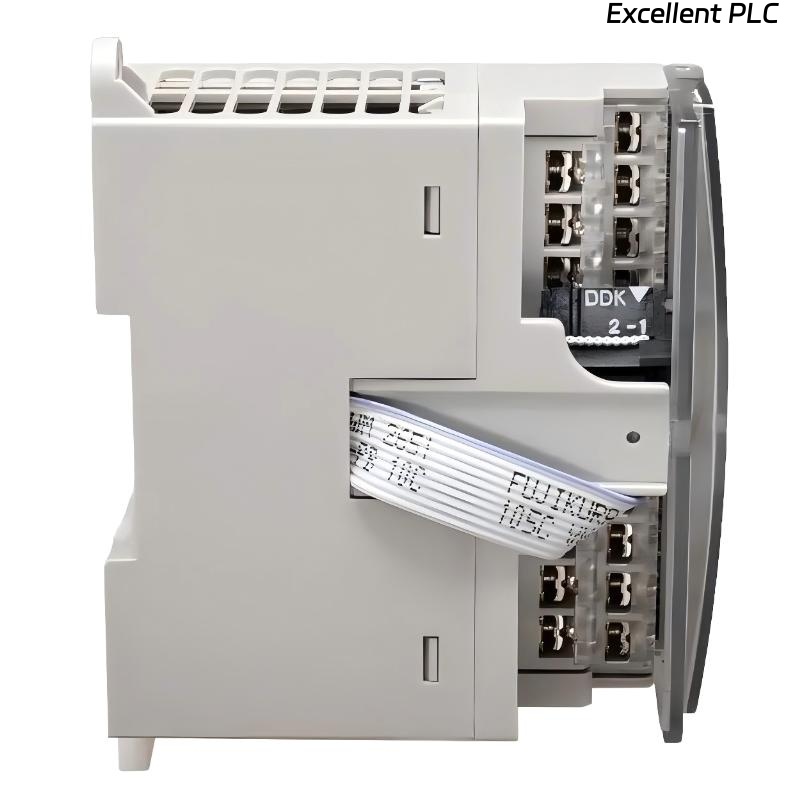

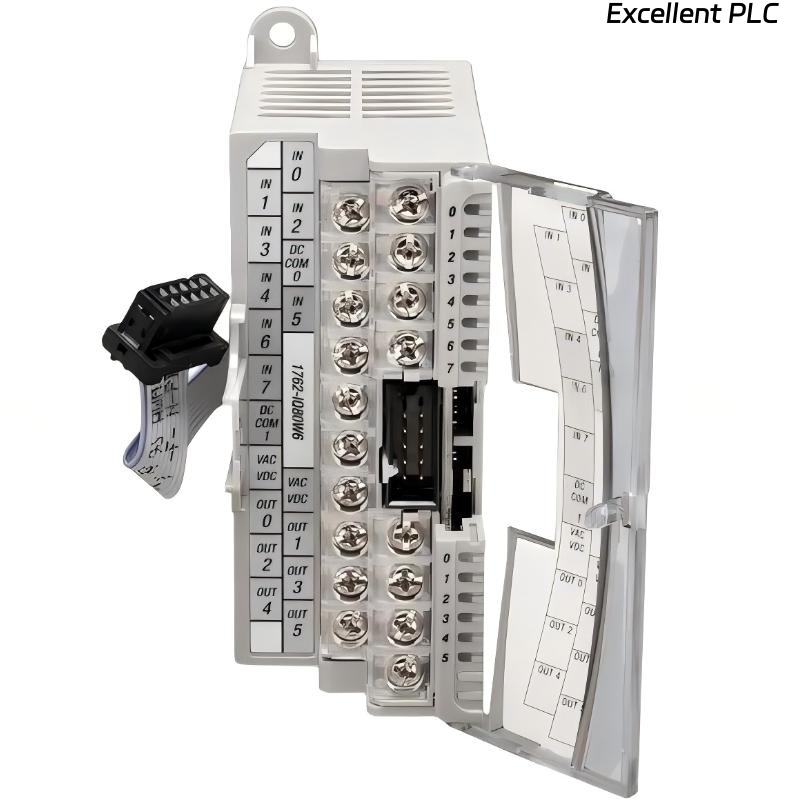

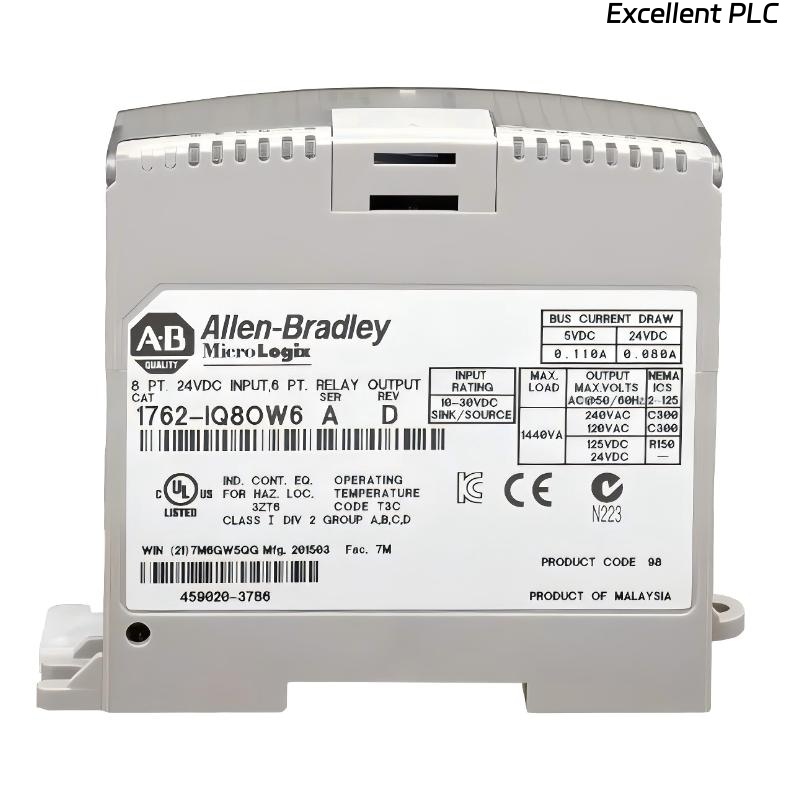

The Allen Bradley 1762-IQ8OW6 MicroLogix 1200 DC Input/Relay Output Combination Module is a dual-function expansion module designed for MicroLogix control systems. Manufactured by Allen-Bradley, this module integrates eight DC input channels and six relay output channels into a single compact unit, providing both sensing and control capabilities in one module.
The 1762-IQ8OW6 is ideal for applications requiring both digital input monitoring and flexible output control. The DC inputs can be configured as sink or source to detect a wide range of field signals, while the relay outputs allow switching of AC or DC loads independently. This combination reduces the number of separate modules needed, conserving panel space and simplifying wiring.
Designed for DIN rail mounting, the module integrates seamlessly with MicroLogix 1200 systems, making it suitable for industrial automation, process control, and machine interface applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC Input / Relay Output Combination Module |
| Number of Digital Inputs | 8 channels |
| Input Type | DC sink/source, 24 VDC |
| Input Voltage Range | 10–30 VDC |
| On-State Current (typ/max) | 8 mA @ 24 VDC, 12 mA @ 30 VDC |
| On-State Current (min) | 2 mA @ 10 VDC |
| Off-State Voltage (max) | 5 VDC |
| Number of Relay Outputs | 6 channels |
| Output Type | Electromechanical Relay |
| Mounting | DIN Rail |
| Isolation | Mechanical isolation via relay contacts |
| Dimensions | 90 x 40.4 x 87 mm |
| Weight | 0.28 kg |
Applications
• Industrial Machine Automation – Combines digital input monitoring with relay output control for machines and process equipment.
• Panel Space Optimization – Reduces the number of discrete modules by combining inputs and outputs in one unit.
• Control of Mixed AC/DC Loads – Relay outputs provide flexibility to switch AC or DC devices.
• OEM Equipment – Compact solution for custom machinery requiring both input sensing and output control.
• Process and Safety Monitoring – Integrates sensor signals and output control for alarms, indicators, and actuators.
Advantages
• Dual Functionality – Eight inputs and six relay outputs in a single module save panel space.
• Flexible Input Configuration – Inputs can be configured as sink or source to accommodate various field devices.
• AC/DC Relay Switching – Outputs provide versatile control options for multiple load types.
• Compact Design – DIN rail mounting allows integration in tight control panels.
• Simplified Wiring – Combines input and output functionality to reduce cabling complexity.
• Reliable Industrial Construction – Built to operate reliably in standard industrial environments.
