Product Introduction

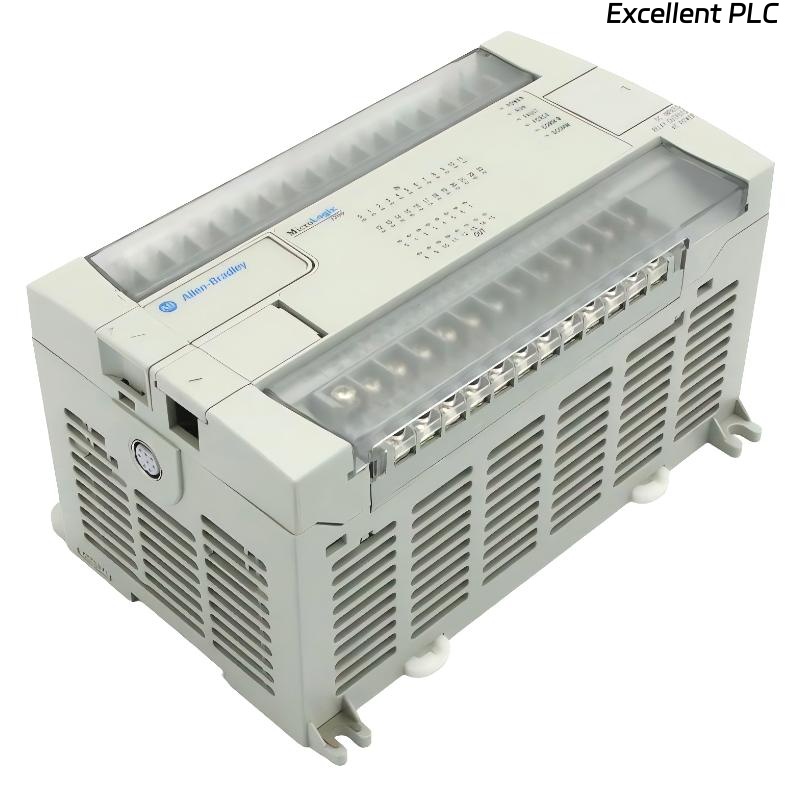

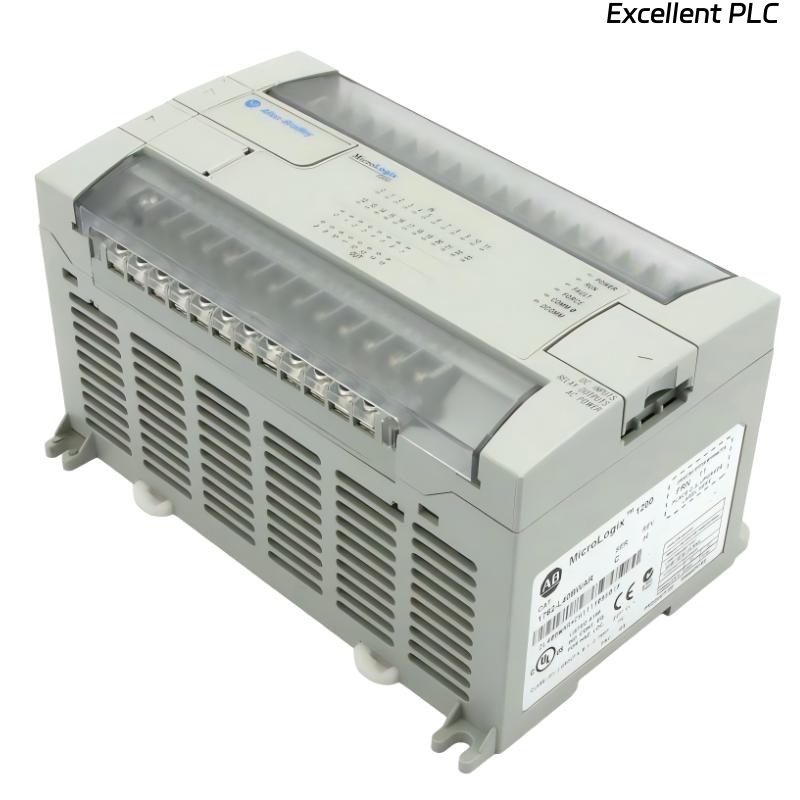

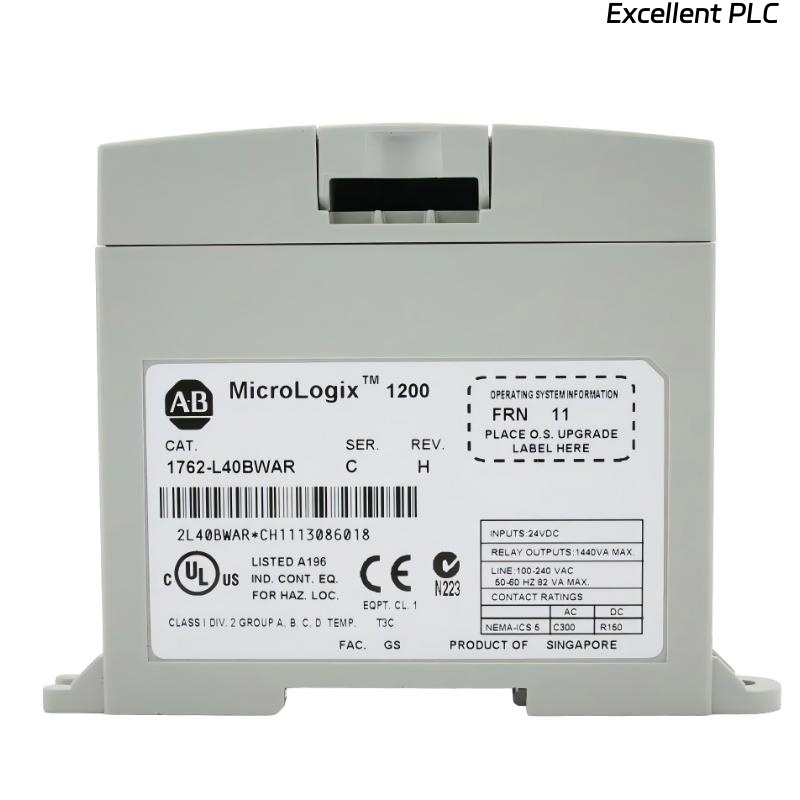

The Allen Bradley 1762-L40BWAR MicroLogix 1200 Programmable Controller is a powerful compact PLC designed to provide reliable automation control for small and medium-sized industrial systems. Developed by Allen-Bradley, this controller integrates a high number of digital inputs and relay outputs, making it suitable for complex machine control and process automation tasks.
The 1762-L40BWAR features a total of 40 I/O points, including 24 digital inputs and 16 relay outputs. Among the input channels, 20 are standard 24 VDC digital inputs while 4 are high-speed inputs designed for applications that require rapid signal detection such as pulse monitoring and encoder feedback. The relay outputs allow the controller to switch a variety of loads, including both AC and DC devices, making the module highly flexible in industrial environments.
Powered by a 120/240 VAC supply, the controller is compatible with standard industrial power systems and control panels. The MicroLogix 1200 architecture also supports the addition of 1762 expansion modules, allowing users to expand the system with additional digital or analog I/O channels as needed.
With its integrated I/O structure, high-speed input capability, and robust industrial design, the 1762-L40BWAR is widely used in manufacturing systems, automated machinery, packaging equipment, and material handling applications where dependable PLC control is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | MicroLogix 1200 Programmable Controller |
| Power Supply | 120/240 VAC |
| Total I/O Points | 40 |
| Digital Inputs | 20 standard 24 VDC + 4 fast 24 VDC inputs |
| Relay Outputs | 16 channels |
| Output Type | Relay |
| Controller Series | MicroLogix 1200 |
| Mounting Method | DIN Rail or Panel Mount |
| Expansion Capability | Compatible with 1762 expansion I/O modules |
| Dimensions | 160 x 87 x 104 mm |
| Weight | 1.1 kg |
Applications
• Industrial Machine Automation – Controls multiple sensors and actuators in automated manufacturing equipment.
• Packaging and Assembly Systems – Handles high I/O requirements for packaging machines, labeling equipment, and assembly stations.
• Material Handling Equipment – Suitable for conveyors, sorting machines, and automated transport systems.
• OEM Machine Control – Provides integrated PLC control for specialized machinery produced by equipment manufacturers.
• Process Monitoring Systems – Collects input signals from field devices and triggers relay-based outputs for process control.
• Factory Automation Panels – Serves as the central controller in distributed automation systems.
Advantages
• High I/O Capacity – Integrated 40 I/O points allow the controller to handle more devices without additional modules.
• Fast Input Channels – Four high-speed inputs enable accurate monitoring of pulses, counters, and rapid sensor signals.
• Flexible Relay Output Control – Sixteen relay outputs allow switching of both AC and DC loads.
• Reliable AC Power Operation – Compatible with standard 120/240 VAC industrial power supplies.
• Expandable System Design – Supports 1762 expansion modules to increase system capability.
• Compact Industrial Design – Provides a high I/O density while maintaining a compact footprint suitable for control cabinets.
• Proven MicroLogix Architecture – Based on a widely used PLC platform known for reliability and ease of programming.
