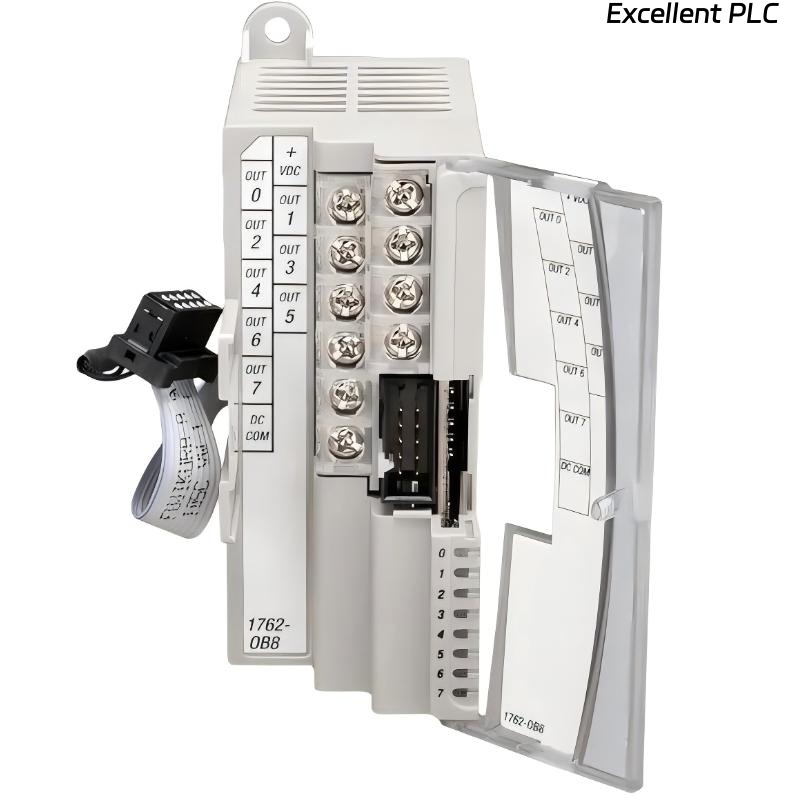

The Allen Bradley 1762-OB8 MicroLogix 8 Point Digital Solid State Output Module is a compact 24 VDC transistor output module designed to expand the digital output capacity of MicroLogix control systems. Manufactured by Allen-Bradley, the 1762-OB8 delivers eight high-performance DC outputs in a space-saving housing suitable for industrial control panels.
This module is engineered for applications requiring reliable switching of 24 VDC field devices such as solenoids, relays, pilot lights, and small DC actuators. Its solid-state transistor design eliminates mechanical contact wear, ensuring consistent switching performance and long operational stability.
The 1762-OB8 integrates seamlessly with MicroLogix 1100, 1200, and 1400 controllers, making it a practical choice for both new installations and system expansions where dependable 24 VDC output control is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | 8-Point Digital Solid State Output Module |
| Output Type | DC Solid State (Transistor) |
| Number of Outputs | 8 |
| Nominal Output Voltage | 24 VDC |
| Operating Voltage Range | 20.4–26.4 VDC (typical for 24 VDC systems) |
| Output Configuration | Grouped outputs with common terminals |
| Mounting | DIN Rail |
| Isolation | Field-to-backplane isolation |
| Response Time | Fast electronic switching |
| Dimensions | 90 x 40.4 x 87 mm |
| Weight | 0.21 kg |
Applications
• Machine Automation – Controls DC-powered solenoids, relays, and indicator lamps in industrial equipment.
• Packaging Systems – Provides stable switching for actuators and control elements.
• Material Handling Equipment – Operates DC devices in conveyor and sorting systems.
• OEM Machinery – Ideal for standardized machine designs requiring compact output expansion.
• Process Control Panels – Used for reliable switching of 24 VDC field devices.
Advantages
• Solid-State Switching Reliability – Eliminates mechanical wear, improving durability and consistency.
• Compact Design – Small footprint reduces panel space requirements.
• Stable 24 VDC Operation – Designed specifically for standard industrial DC control systems.
• Fast Response Time – Suitable for applications requiring quick output switching.
• Easy System Expansion – Integrates directly with MicroLogix controllers without complex configuration.
• Reduced Maintenance Needs – No moving parts means lower long-term servicing requirements.
