Product Introduction

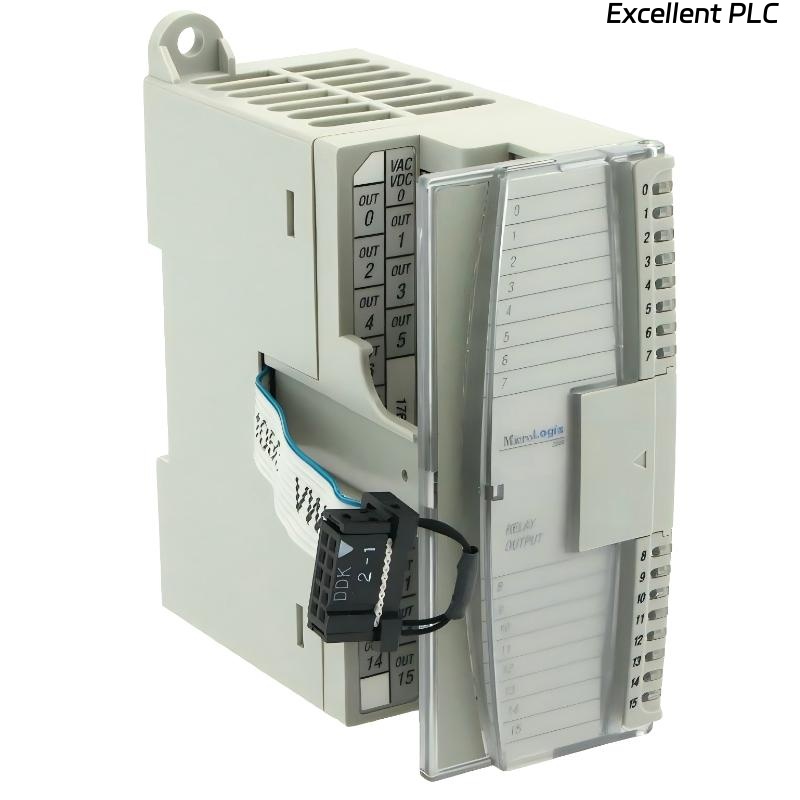

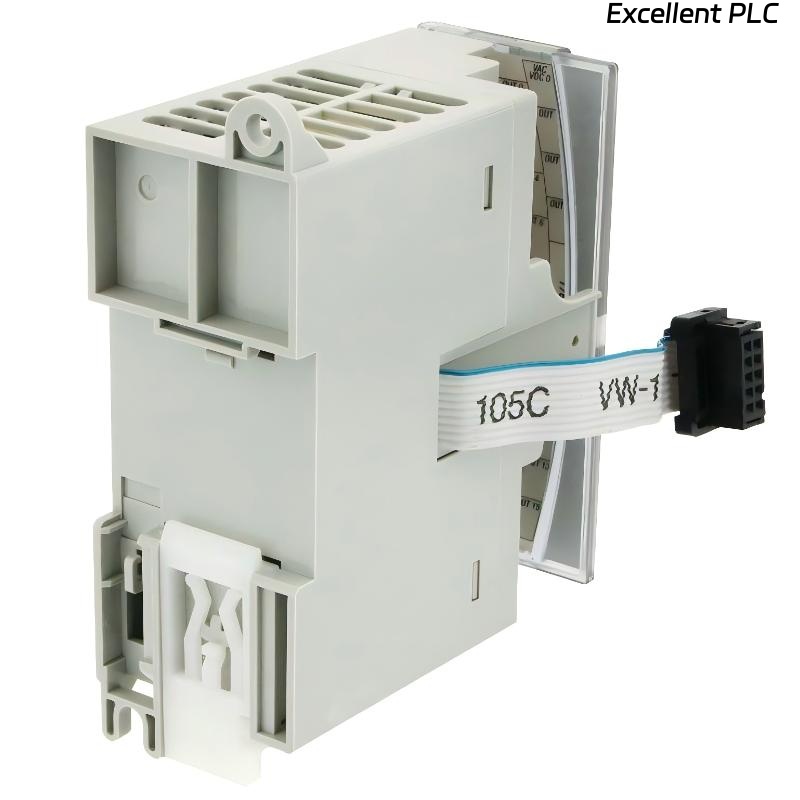

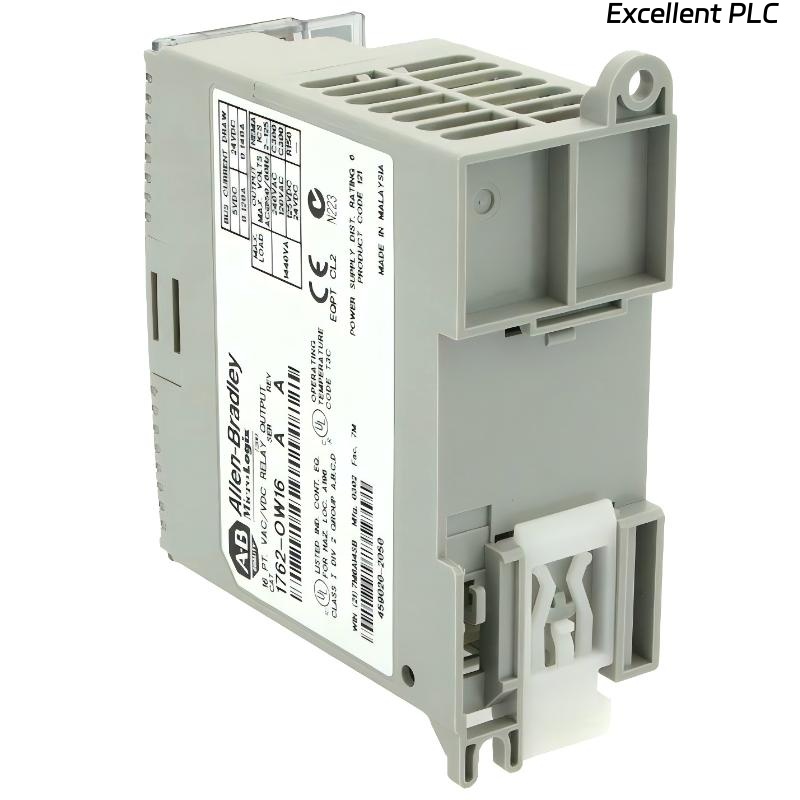

The Allen Bradley 1762-OW16 MicroLogix 1200 16 Point Relay Output Module is a versatile relay-based digital output expansion module engineered for MicroLogix control systems. Manufactured by Allen-Bradley, the 1762-OW16 provides sixteen mechanically isolated relay outputs capable of switching both AC and DC loads across a wide voltage range.
This module is particularly suitable for applications requiring electrical flexibility. Unlike solid-state outputs, relay contacts can switch different voltage types on separate channels, making the module ideal for mixed-voltage systems. It is widely used in machine control panels where outputs must drive contactors, solenoids, indicator lamps, and auxiliary control circuits.
The compact DIN rail-mounted housing ensures efficient panel integration while maintaining robust electrical performance. Designed for durability and operational stability, the 1762-OW16 remains a reliable choice for industrial automation projects requiring adaptable output control.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | 16-Point Relay Output Module |
| Output Type | Electromechanical Relay |
| Number of Outputs | 16 |
| Operating Voltage | 5–265 V AC; 5–125 V DC |
| Per Point Current (max) | 2.5 A |
| Per Common Current (max) | 8 A |
| Per Module Current (max) | 16 A |
| Backplane Current Draw (max) | 180 mA @ 24 V DC (4.32 W) |
| Heat Dissipation (max) | 6.1 W |
| Mounting | DIN Rail |
| Isolation | Mechanical isolation via relay contacts |
| Dimensions | 90 x 40.4 x 87 mm |
| Weight | 0.285 kg |
Applications
• Mixed Voltage Control Systems – Ideal for applications requiring both AC and DC load switching within the same module.
• Motor Starter and Contactor Control – Drives coil circuits for industrial motor control systems.
• Industrial Machine Automation – Controls solenoids, lamps, and auxiliary devices.
• Process Equipment Interfaces – Switches control signals between PLCs and field equipment.
• Retrofit and Upgrade Projects – Provides flexible relay outputs when replacing older control systems.
Advantages
• Wide Voltage Compatibility – Supports both AC and DC loads across a broad voltage range.
• High Current Capacity – Handles up to 2.5 A per output and 16 A per module.
• Electrical Flexibility – Relay contacts allow switching of different voltage types on separate channels.
• Strong Load Handling – Suitable for inductive loads when proper suppression is applied.
• Reliable Mechanical Isolation – Physical contact separation enhances system protection.
• Straightforward Integration – Seamlessly connects to MicroLogix 1200 and related controllers.
