Product Introduction

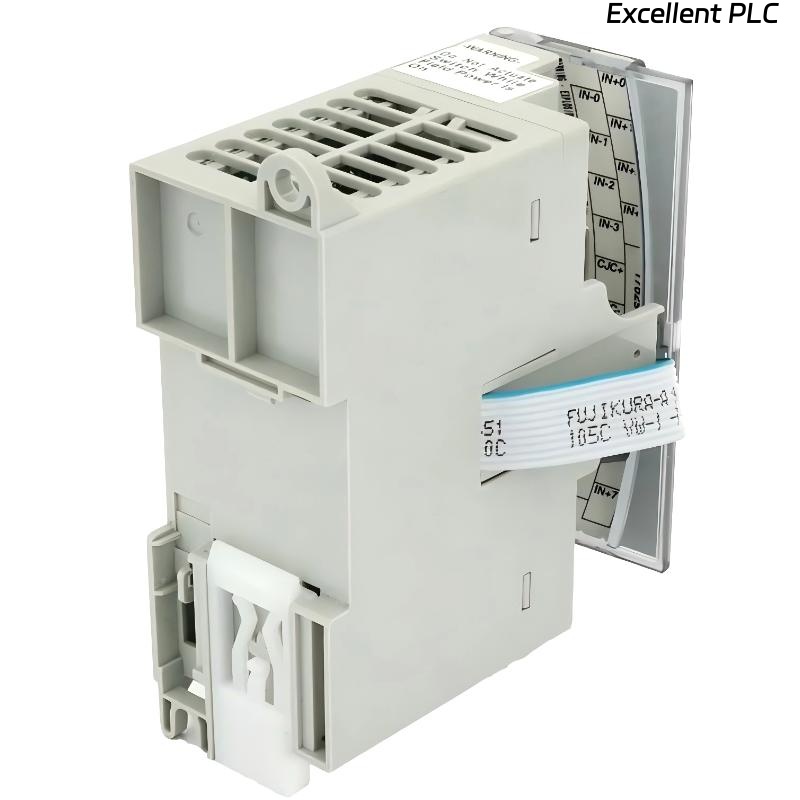

The Allen Bradley 1762SC-IF8U MicroLogix 8 Channel Universal Analog Input Module is a versatile analog expansion module designed to extend the input capabilities of MicroLogix automation systems. Produced by Allen-Bradley, this module provides eight universal analog input channels capable of handling multiple signal types used in industrial instrumentation and process monitoring.
The 1762SC-IF8U module is engineered to support a variety of analog signals including voltage, current, and other commonly used industrial measurement signals. This universal design allows a single module to connect with different types of field devices such as pressure transmitters, temperature transmitters, level sensors, and flow measurement instruments. By supporting multiple signal formats, the module simplifies system design and reduces the need for multiple dedicated analog input modules.
Designed specifically for integration with MicroLogix controllers, the 1762SC-IF8U connects directly through the MicroLogix expansion bus. The module converts incoming analog signals into digital data that can be processed by the PLC program, enabling precise monitoring and control of industrial processes.
Because of its compact size and high channel density, the module is well suited for applications where multiple analog signals must be monitored within limited panel space. Its universal input capability makes it particularly valuable in industrial environments where different types of sensors are used throughout a system.
With reliable performance, flexible signal compatibility, and seamless integration with MicroLogix platforms, the 1762SC-IF8U is widely used in process automation, machine control, and monitoring systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Universal Analog Input Module |
| Compatible Controller | MicroLogix 1200 / MicroLogix Series |
| Number of Channels | 8 |
| Input Type | Universal Analog Inputs |
| Supported Signals | Voltage and Current Signals |
| Signal Conversion | Analog to Digital |
| Module Function | Analog Signal Acquisition |
| Mounting Method | DIN Rail or Panel Mount |
| Communication Interface | MicroLogix Expansion Bus |
| Dimensions | 90 x 40 x 87 mm |
| Weight | 0.268 kg |
Applications
• Industrial Process Monitoring – Collects analog signals from transmitters measuring pressure, temperature, flow, and level.
• Factory Automation Systems – Enables PLC systems to monitor multiple process variables simultaneously.
• Machine Control Systems – Provides accurate analog signal acquisition for feedback and control loops.
• Water and Wastewater Treatment Plants – Monitors instrumentation signals used in treatment processes.
• Energy Management Systems – Collects measurement data from sensors used in power monitoring and energy control systems.
• OEM Equipment Integration – Provides flexible analog input capability for custom-built automation machinery.
Advantages
• Universal Input Capability – Supports multiple analog signal types within a single module.
• High Channel Density – Eight analog inputs allow multiple sensors to be connected simultaneously.
• Flexible Sensor Integration – Compatible with a wide range of industrial transmitters and analog field devices.
• Compact Module Design – Efficient use of control panel space without sacrificing functionality.
• Reliable Signal Conversion – Accurate conversion of analog signals into digital data for PLC processing.
• Seamless MicroLogix Integration – Designed to work directly with MicroLogix controllers and expansion architecture.
• Simplified System Design – Reduces the need for multiple dedicated analog input modules.
