Product Introduction

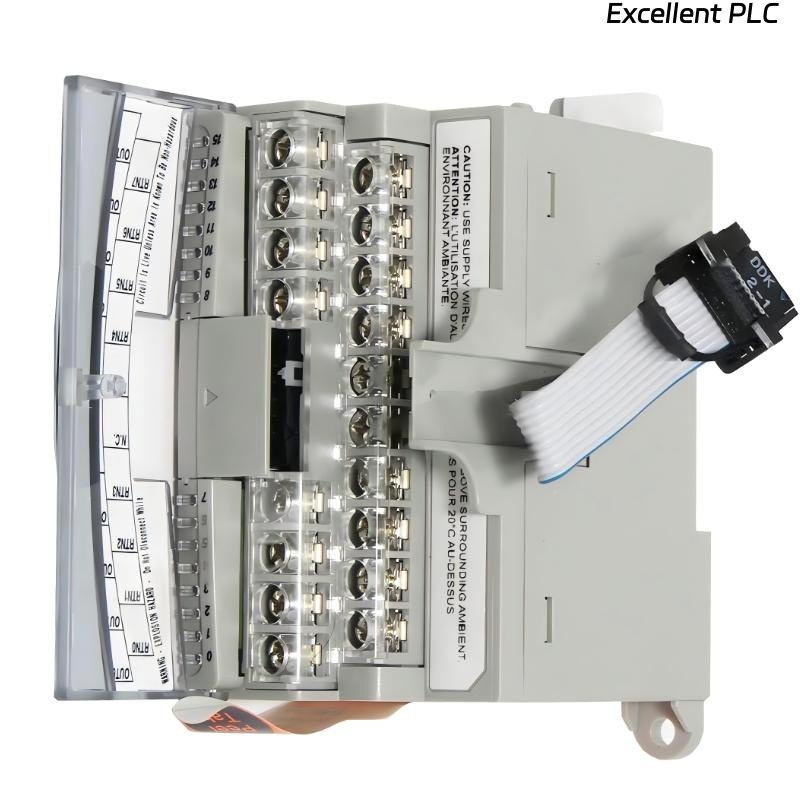

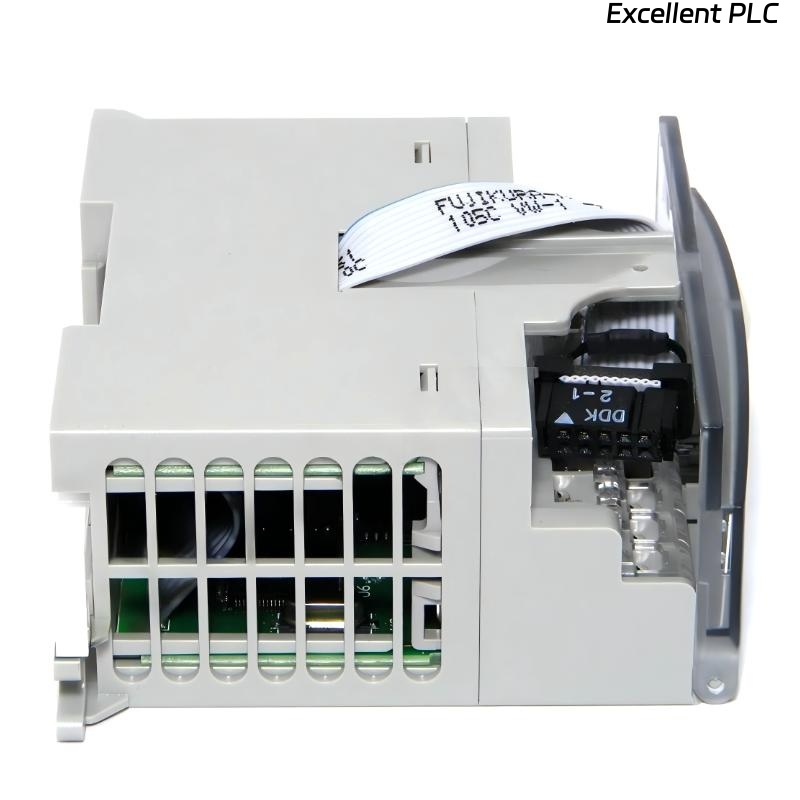

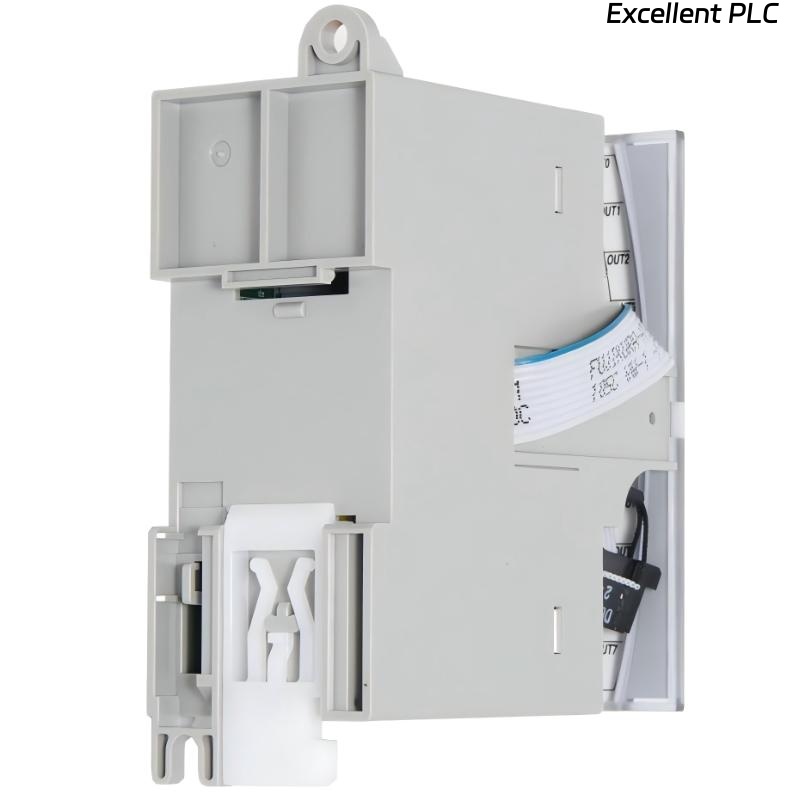

The Allen Bradley 1762SC-OF8 MicroLogix 8 Channel Analog Output Module is a high-performance analog expansion module designed to provide precise control signals in industrial automation systems. Manufactured by Allen-Bradley, this module expands the output capabilities of MicroLogix controllers by providing eight configurable analog output channels capable of delivering either voltage or current signals.
The 1762SC-OF8 module is designed for applications that require accurate analog signal generation to control field devices such as variable speed drives, control valves, actuators, and process instrumentation. Each output channel can be configured for different signal ranges, giving the system designer flexibility to match the requirements of various industrial control devices.
The module also features 16-bit resolution, ensuring high accuracy and fine signal control when sending output commands from the PLC to field devices. With selectable data formats and multiple signal options, the module offers excellent flexibility for advanced control systems.
Its compact structure allows easy installation within MicroLogix expansion systems while maintaining high channel density. As a result, the 1762SC-OF8 is widely used in automation systems that require multiple analog control outputs within limited cabinet space.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Output Module |
| Controller Compatibility | MicroLogix Series |
| Number of Channels | 8 |
| Output Signal Type | Current and Voltage |
| Current Output Ranges | 0–20 mA, 4–20 mA |
| Voltage Output Ranges | 0–5 V, 1–5 V, 0–10 V, ±10 V |
| Selectable Output Ranges | 6 ranges |
| Resolution | 16-bit |
| Data Format | Selectable |
| Signal Conversion | Digital to Analog |
| Mounting Method | DIN Rail or Panel Mount |
| Communication Interface | MicroLogix Expansion Bus |
| Dimensions | 90 x 40 x 87 mm |
| Weight | 0.279 kg |
Applications
• Process Control Systems – Provides precise analog signals to regulate flow, pressure, temperature, and other process variables.
• Variable Speed Drive Control – Sends analog control signals to motor drives for speed and torque regulation.
• Industrial Automation Equipment – Controls actuators, valves, and analog devices used in automated machinery.
• Chemical and Pharmaceutical Plants – Delivers accurate control signals to dosing systems and process equipment.
• Energy and Power Systems – Supports analog command signals used in energy management and power monitoring systems.
• OEM Machinery Integration – Enables equipment manufacturers to implement advanced analog control functions in custom machines.
Advantages
• Multiple Output Signal Options – Supports both voltage and current output formats to accommodate different industrial devices.
• High Resolution Control – 16-bit resolution ensures precise analog signal generation and improved control accuracy.
• Flexible Range Configuration – Six selectable output ranges allow easy adaptation to different instrumentation requirements.
• High Channel Density – Eight analog output channels in a compact module increase system efficiency.
• Reliable Industrial Performance – Designed for stable and consistent operation in demanding industrial environments.
• Compact Expansion Design – Small form factor simplifies installation in control panels with limited space.
• Seamless PLC Integration – Fully compatible with MicroLogix controllers and expansion architecture.
