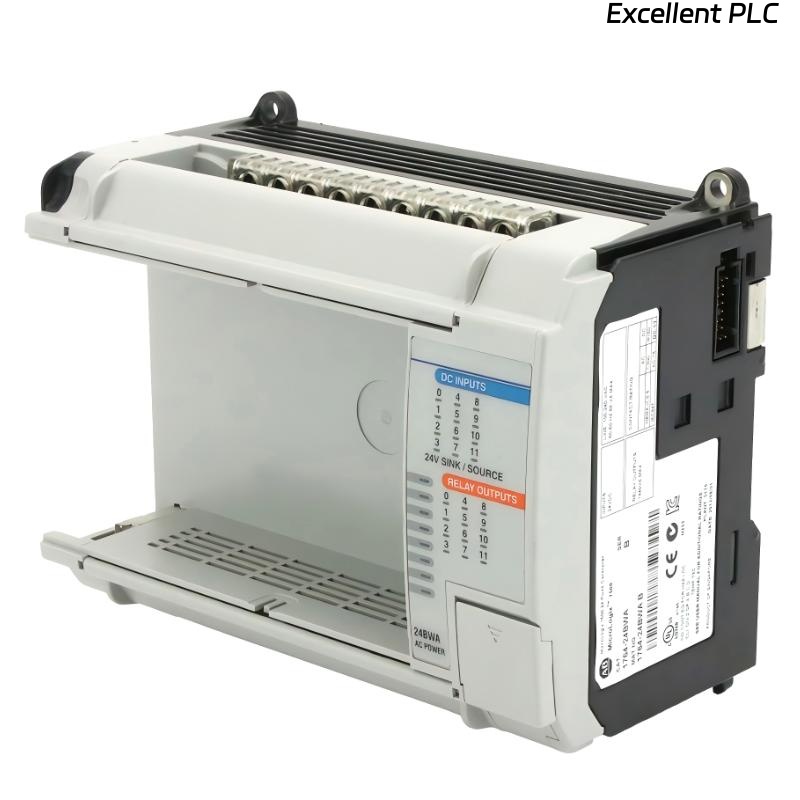

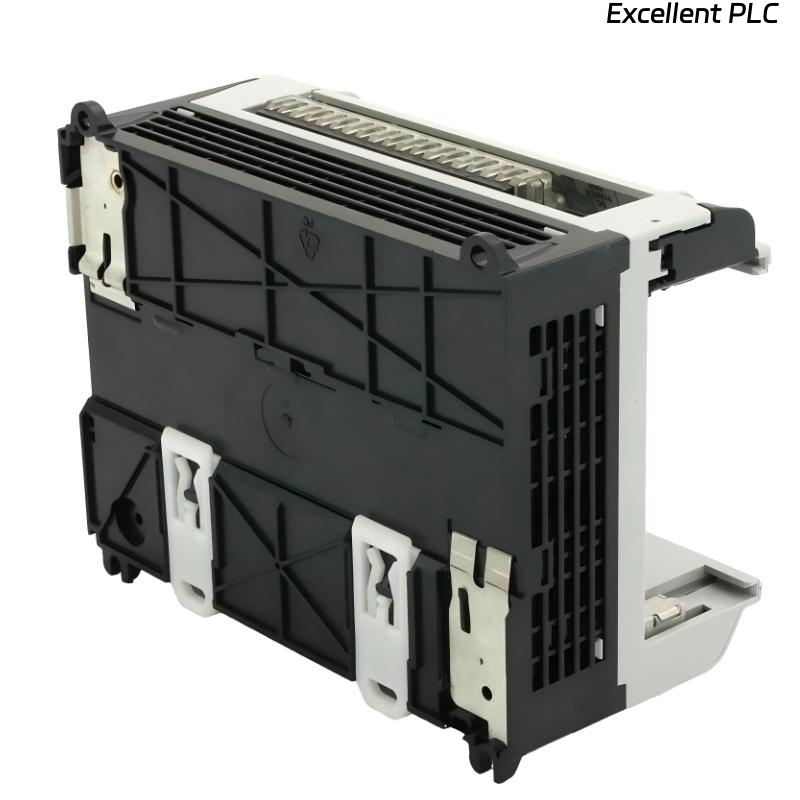

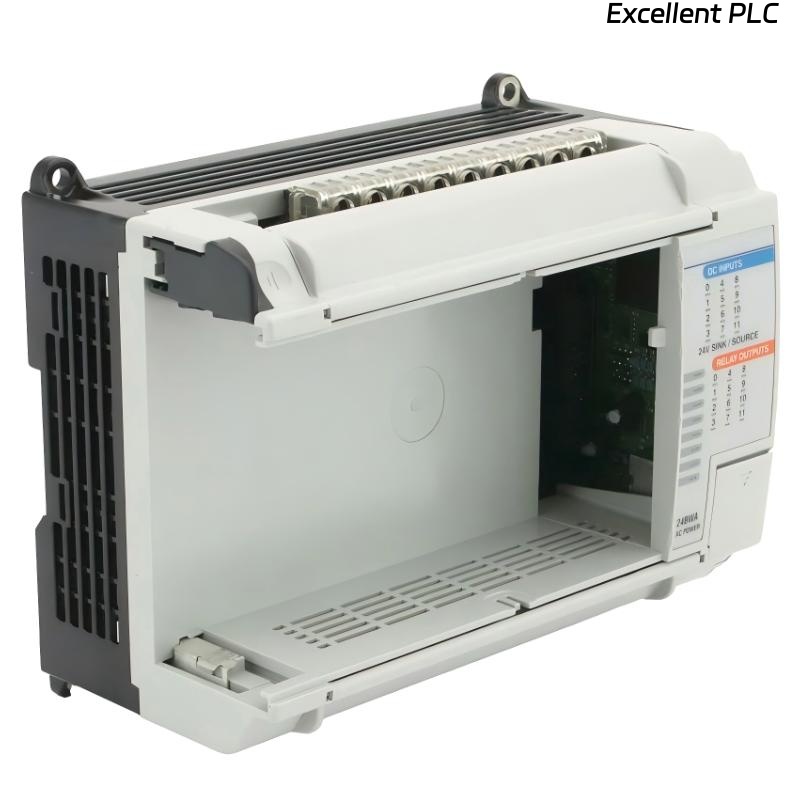

Allen Bradley 1764-24BWA MicroLogix 1500 Programmable Controller Base Unit

Product Introduction

The Allen-Bradley 1764-24BWA MicroLogix 1500 Programmable Controller Base Unit is a compact and reliable programmable logic controller designed for small-to-medium industrial automation systems. Manufactured by Rockwell Automation under the Allen-Bradley label, the MicroLogix 1500 series combines processing power, flexible input/output capability, and a modular architecture in a single compact unit.

The 1764-24BWA base unit includes a 120VAC power supply, 12 digital 24VDC inputs, and 12 relay outputs, allowing it to control motors, contactors, solenoid valves, and indicator devices. Its integrated I/O reduces wiring complexity and simplifies installation, making it ideal for standalone machines or small automation systems.

Expandable architecture ensures that additional I/O modules can be added if more control channels are needed. This scalability makes the MicroLogix 1500 suitable for both standalone and integrated production environments. Its robust industrial design allows operation under harsh conditions with consistent reliability, while compatibility with industry-standard programming software enables efficient engineering, maintenance, and troubleshooting.

---

Product Specifications

---

Applications

• Packaging Machinery Control
The controller is widely used to manage sensors, actuators, and conveyor drives in automated packaging lines. Relay outputs provide direct control for contactors, motors, and solenoid valves.

• Material Handling Systems
Conveyors, sorting systems, and automated storage systems rely on the MicroLogix 1500 for stable input monitoring and relay output switching.

• Industrial Machine Automation
The compact base unit is ideal for standalone machines such as cutting, labeling, or assembly equipment where integrated I/O reduces installation complexity.

• Water and Environmental Systems
It controls pumps, valves, level sensors, and alarms in water treatment plants and environmental monitoring applications.

• Building and Facility Automation
The controller is used in HVAC control, energy management, and facility monitoring to operate fans, pumps, and other devices.

• Process Equipment Control
Industrial processes like mixers, filling, or dosing machines require precise input monitoring and reliable switching, which this unit provides.

---

Advantages

• Integrated I/O Design
Combines digital inputs and relay outputs in one unit, reducing additional module requirements and simplifying wiring.

• Reliable Industrial Performance
Operates consistently under temperature fluctuations, electrical noise, and mechanical vibration.

• Flexible Expansion Capability
Expandable architecture allows additional I/O modules for growing automation needs.

• Relay Output Versatility
Can switch both AC and DC loads, enabling control of various industrial devices.

• Compact Footprint
Small size allows efficient panel and cabinet layouts.

• Ease of Integration
Seamlessly works with other Allen-Bradley automation components for standardized systems.

• Long-Term Reliability
Durable design ensures dependable operation for critical industrial processes.



FAQ

1. What type of outputs does the 1764-24BWA controller provide?
   The controller uses electromechanical relay outputs capable of switching both AC and DC loads, suitable for motors, contactors, solenoid valves, and indicators.

2. Can the base unit operate independently without expansion modules?
   Yes, it functions standalone with integrated inputs and relay outputs, but additional modules can be added if more I/O channels are needed.

3. What input signal type is supported by the controller?
   It accepts 24VDC digital inputs, typically from sensors like push buttons, limit switches, or photoelectric devices.

4. How are relay outputs typically used in industrial systems?
   Relay outputs control devices requiring isolation or higher current capacity, such as motor starters, contactors, solenoid valves, and alarms.

5. What programming software is compatible with the MicroLogix 1500?
   RSLogix software is used for ladder logic programming and configuration of the MicroLogix 1500 series.

6. Is electrical isolation provided between inputs and outputs?
   Yes, relay outputs inherently isolate control logic from field devices, protecting the controller circuitry.

7. Can the controller be used in distributed automation systems?
   Yes, with proper communication modules, it can integrate into distributed architectures.

8. What sensors can be connected to the digital inputs?
   Inductive proximity sensors, capacitive sensors, photoelectric sensors, limit switches, and push buttons.

9. How does relay output improve device compatibility?
   Relay contacts provide electrically isolated switching, allowing control of AC and DC loads with different voltages.

10. Which industrial standards does the controller follow?
    It complies with electrical safety, electromagnetic compatibility, and industrial control reliability standards.
