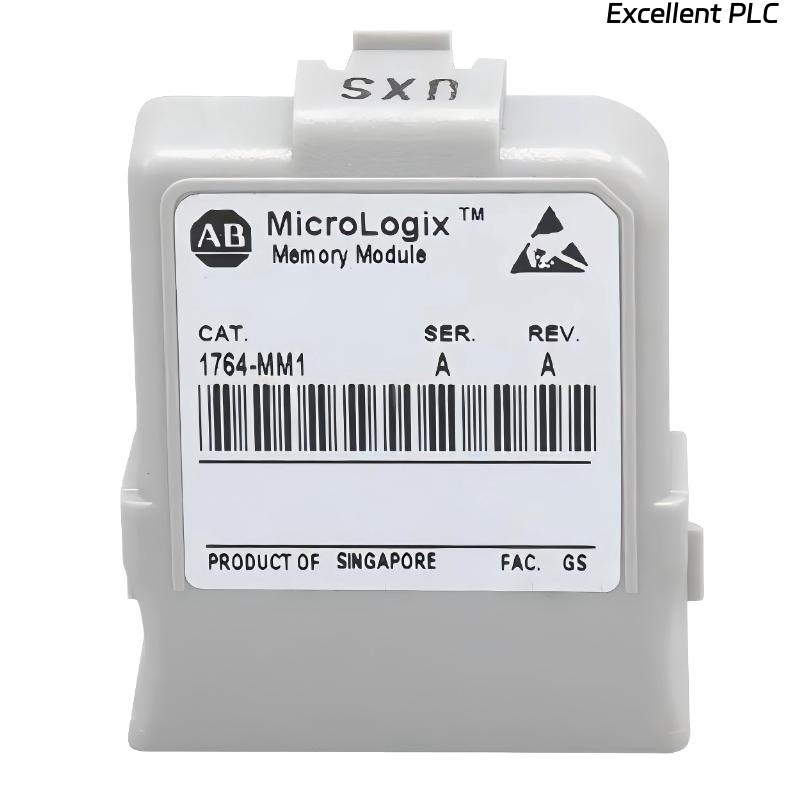

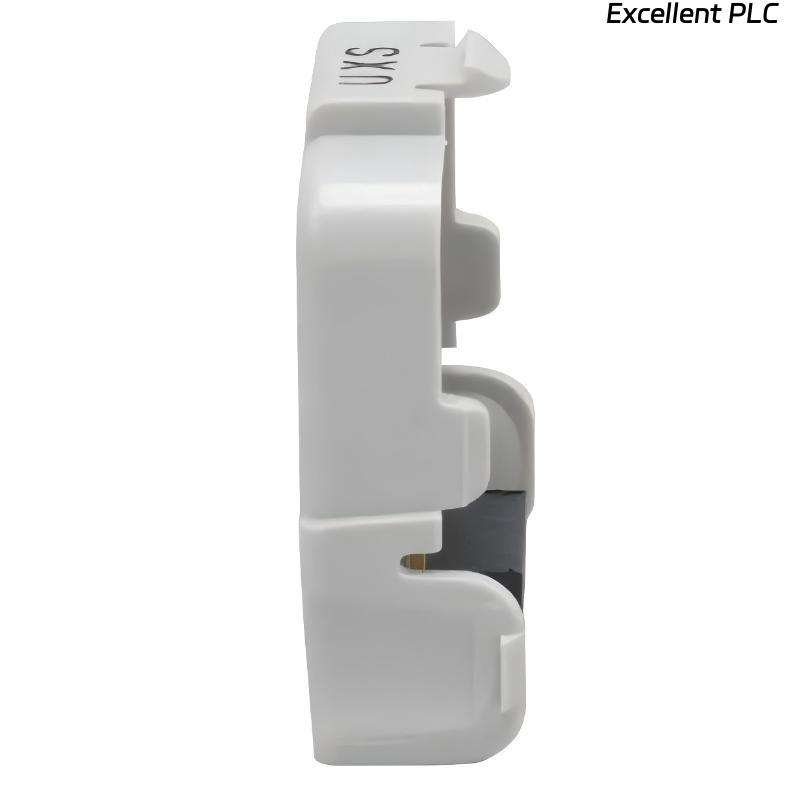

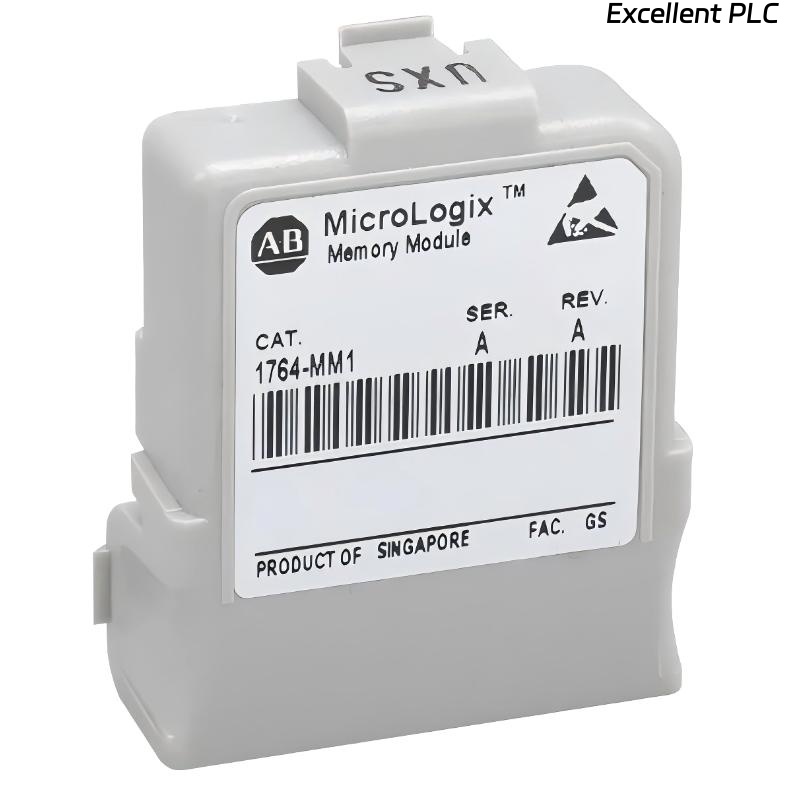

Allen Bradley 1764-MM1 MicroLogix 1500 Memory Module

Product Introduction

The Allen-Bradley 1764-MM1 MicroLogix 1500 Memory Module is an expansion memory module designed for the MicroLogix 1500 series of programmable logic controllers. Manufactured by Rockwell Automation under the Allen-Bradley label, this module provides additional program and data storage, enabling users to extend the capabilities of their MicroLogix 1500 processor units.

With 8 KB of user memory, the 1764-MM1 allows storage of larger control programs, expanded ladder logic routines, and additional process data. It is ideal for applications requiring program retention, backup, or enhanced functionality in industrial control systems. The module operates reliably across standard industrial temperature ranges and features an IP20-rated enclosure for protection in typical control panel environments.

The 1764-MM1 is compatible with MicroLogix 1500 processor units, ensuring seamless integration and stable performance. Its compact design allows easy installation within existing control systems, providing engineers with a flexible solution to scale control program storage without upgrading the processor.

---

Product Specifications

---

Applications

• Expanded Control Programs
Provides additional memory for larger ladder logic programs and process routines in MicroLogix 1500-based systems.

• Program Retention and Backup
Ensures that critical control programs and data are retained even during system power cycles or maintenance operations.

• Industrial Machine Automation
Supports complex control sequences for packaging, assembly, or labeling machines by allowing storage of more instructions.

• Material Handling Systems
Facilitates more advanced conveyor logic, sorting routines, and automated storage operations.

• Building Automation
Enables more sophisticated logic for HVAC, lighting, and energy management systems.

• Water and Environmental Control
Allows larger process control programs and monitoring routines for treatment plants and environmental management systems.

---

Advantages

• Increased Memory Capacity
Provides 8 KB of additional user memory for larger programs and complex automation routines.

• Seamless Integration
Compatible with MicroLogix 1500 processors, ensuring stable and reliable operation within existing systems.

• Supports Complex Automation Tasks
Enables more intricate control sequences and logic operations without requiring additional processor upgrades.

• Program Retention
Maintains control programs and critical data reliably during power cycles or system maintenance.

• Flexible Application
Applicable across industrial machinery, material handling, building automation, and environmental control systems.

• Low Power Consumption
Efficient operation reduces energy usage and thermal load in control cabinets.

• Compact and Convenient
Easily installed in existing MicroLogix 1500 slots, allowing quick upgrades without system redesign.

• Reliable Industrial Performance
Engineered to meet standard industrial requirements for temperature and operational stability.

• Supports System Scalability
Expands the capabilities of MicroLogix 1500 processors, making future system upgrades easier.

• Enhanced Flexibility
Allows engineers to implement larger or more complex programs without increasing hardware complexity.

FAQ

1. How much user memory does the 1764-MM1 provide?
   It provides 8 KB of additional memory for program and data storage.

2. Which processors is the memory module compatible with?
   It is compatible with all MicroLogix 1500 processor units.

3. Can the module retain programs during power loss?
   Yes, it supports program retention and backup during power cycles.

4. What is the operating temperature range?
   The module operates between 0 to 55 °C.

5. What is the enclosure rating of the memory module?
   It is rated IP20, suitable for typical control panel environments.

6. How is the module installed?
   It is installed directly into a MicroLogix 1500 processor or expansion module slot.

7. Can it support complex automation routines?
   Yes, the 8 KB memory allows more intricate ladder logic and control sequences.

8. Is it suitable for building automation applications?
   Yes, it supports HVAC, lighting, and energy management systems.

9. Does it work for industrial machinery automation?
   Yes, it is ideal for packaging, assembly, labeling, and other industrial machines.

10. Can it enhance material handling system capabilities?
    Yes, the additional memory allows more advanced conveyor, sorting, and storage routines.
