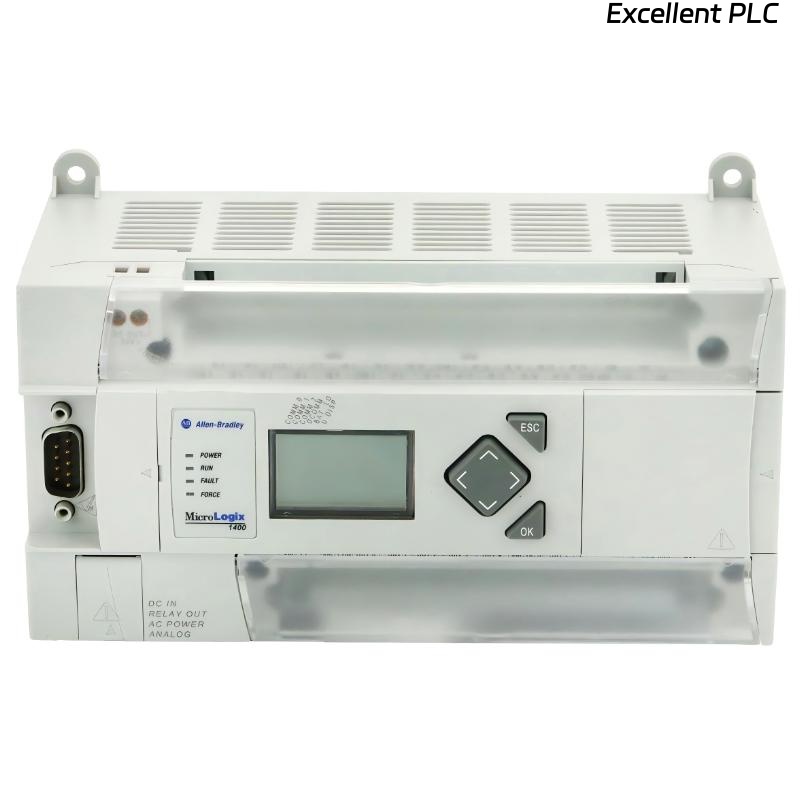

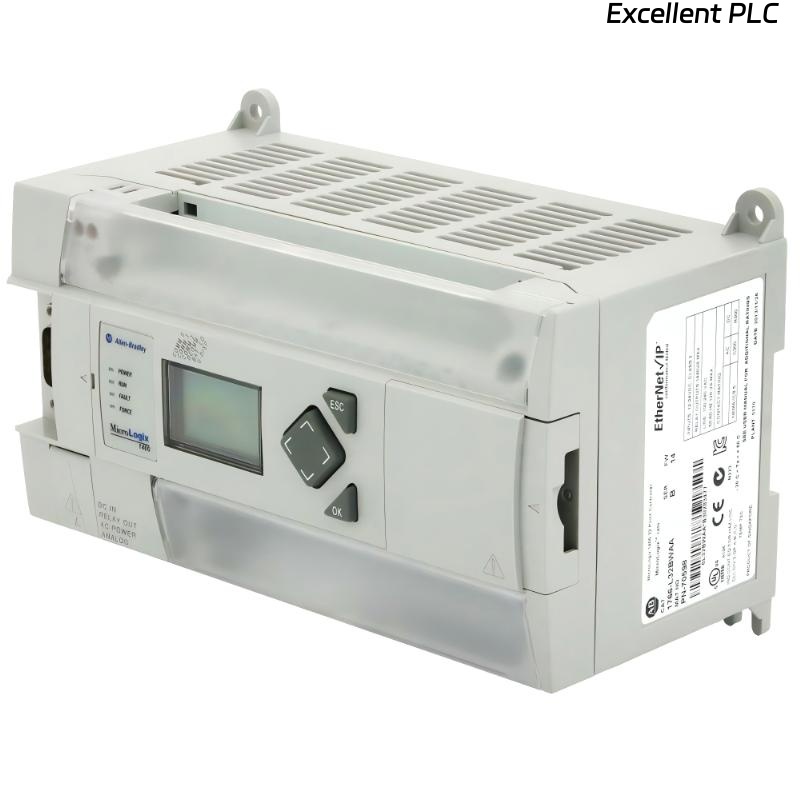

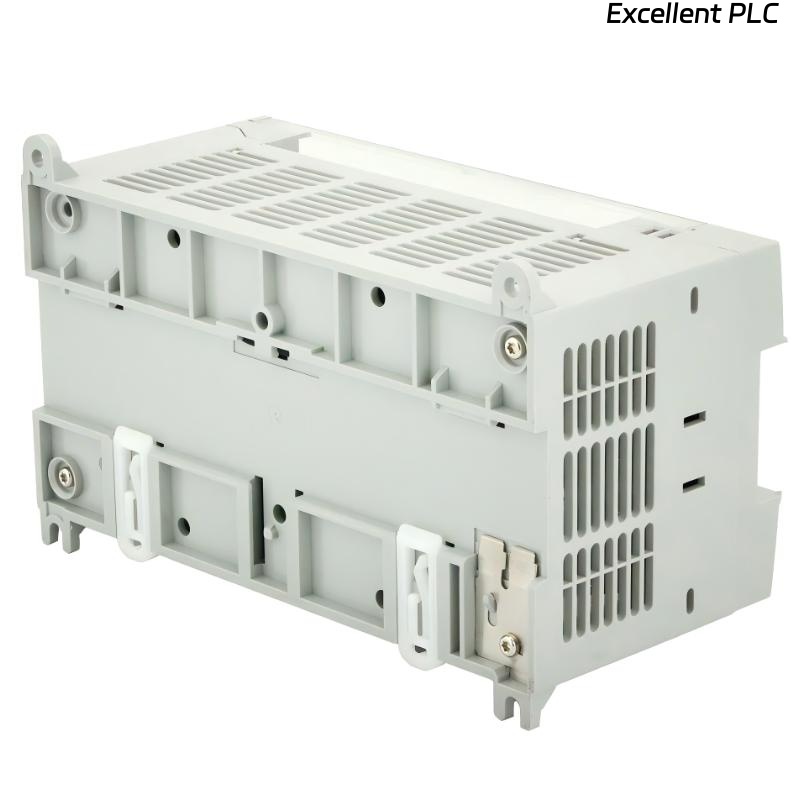

Allen Bradley 1766-L32BWAA MicroLogix 1400 Programmable Controller

Product Introduction

The Allen-Bradley 1766-L32BWAA MicroLogix 1400 Programmable Controller is a versatile PLC designed for small to medium industrial control applications. Manufactured by Rockwell Automation under the Allen-Bradley label, this controller provides discrete relay outputs and analog I/O capabilities, allowing precise control of machinery and process automation systems.

With 12 discrete relay outputs, 4 analog inputs (12-bit, 0–10 VDC), and 2 analog outputs (12-bit, 0–10 VDC), the 1766-L32BWAA can manage a variety of input/output devices and execute complex control logic. The controller features 20 KB of user memory for storing ladder logic programs and process data, supporting moderately sophisticated automation tasks.

This controller operates on 120/240 VAC power supply, with an operating frequency of 47–63 Hz and a power consumption of 120 VA. It is engineered to provide stable and reliable performance across standard industrial conditions and integrates seamlessly with MicroLogix 1400 expansion modules for scalable system configurations.

The 1766-L32BWAA is widely used in manufacturing machines, material handling systems, process control lines, and building automation. Its combination of relay outputs, analog I/O, and expandable memory makes it a flexible solution for engineers seeking reliable PLC control for both discrete and analog processes.

---

Product Specifications

---

Applications

• Machine Automation
Controls discrete devices, motors, and actuators in assembly, packaging, and production machines.

• Analog Process Control
Handles analog inputs and outputs for precise measurement and control of temperature, pressure, or flow in industrial systems.

• Material Handling Systems
Coordinates conveyors, sorting equipment, and automated storage systems using relay and analog outputs.

• Building Automation
Manages lighting, HVAC, and energy systems with combined digital and analog control.

• Process Sequencing
Executes ladder logic programs to control sequential operations and multi-step processes in manufacturing lines.

• Remote Monitoring and Diagnostics
Integrates with operator interfaces and SCADA systems via standard protocols for system monitoring and troubleshooting.

---

Advantages

• Combined Digital and Analog Control
Supports both relay outputs and analog I/O channels for versatile automation applications.

• Expandable Memory
20 KB of user memory allows storage of more complex control programs and process routines.

• Reliable Industrial Operation
Engineered for stable performance under standard industrial electrical and environmental conditions.

• Seamless Integration
Compatible with MicroLogix 1400 expansion modules and Allen-Bradley automation systems.

• Flexible Application Support
Suitable for discrete control, analog process control, and combined automation tasks in industrial environments.

• Modular System Design
Allows addition of expansion modules to increase I/O capacity without replacing the core controller.

• Energy Efficient
Optimized power consumption (120 VA) for continuous operation in control panels.

• High Reliability
Maintains consistent performance under industrial conditions, minimizing downtime.

• Advanced Diagnostics
Supports monitoring of outputs, system errors, and communication status.

• Ease of Programming
Compatible with RSLogix software for ladder logic program development, debugging, and system configuration.

FAQ

1. How many discrete outputs does the 1766-L32BWAA have?
   It provides 12 relay outputs, suitable for controlling motors, solenoids, lamps, and other discrete devices.

2. What analog input and output channels are available?
   It features 4 analog inputs and 2 analog outputs, all 12-bit resolution, supporting 0–10 VDC signals for precise process control.

3. How much user memory does the controller provide?
   The controller has 20 KB of user memory for storing ladder logic programs and process data.

4. Which power supply does it require?
   It operates on 120/240 VAC with an operating frequency range of 47–63 Hz.

5. What is the power consumption of the controller?
   The controller consumes 120 VA during normal operation, optimized for industrial panels.

6. Can the controller handle both discrete and analog control simultaneously?
   Yes, it can manage digital relay outputs and analog I/O channels at the same time for mixed automation tasks.

7. Can it be expanded with additional modules?
   Yes, MicroLogix 1400 expansion modules can be added to increase I/O capacity without replacing the main controller.

8. Is the controller suitable for industrial automation applications?
   Yes, it is designed for machine control, process automation, material handling, and building systems.

9. What is the operating temperature range?
   It reliably operates between 0°C and 55°C for typical industrial environments.

10. Which software is compatible for programming the controller?
    RSLogix software is used for creating, uploading, and debugging ladder logic programs for MicroLogix 1400 controllers.
