Product Introduction

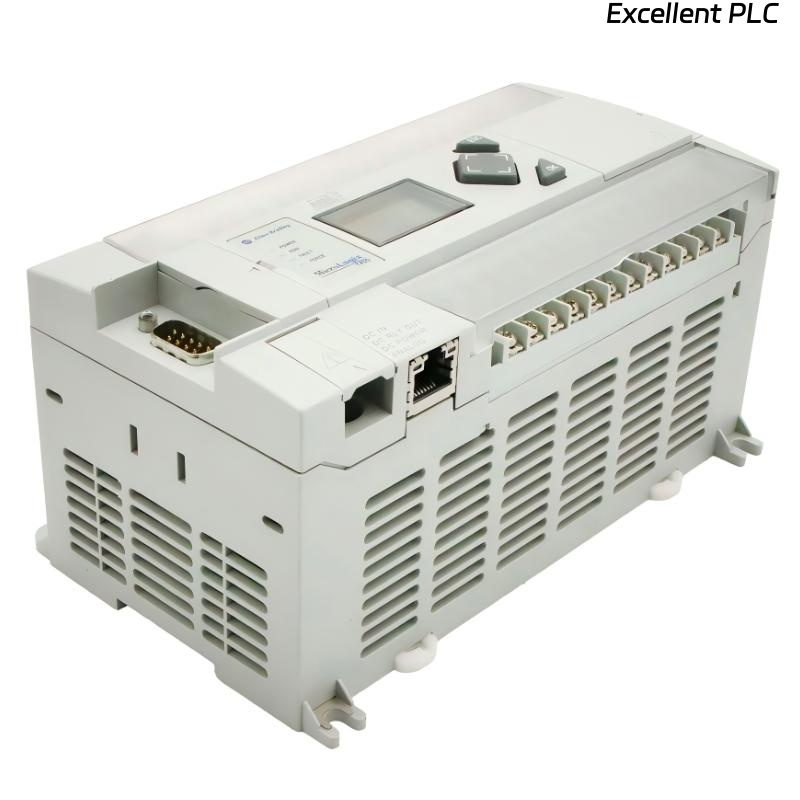

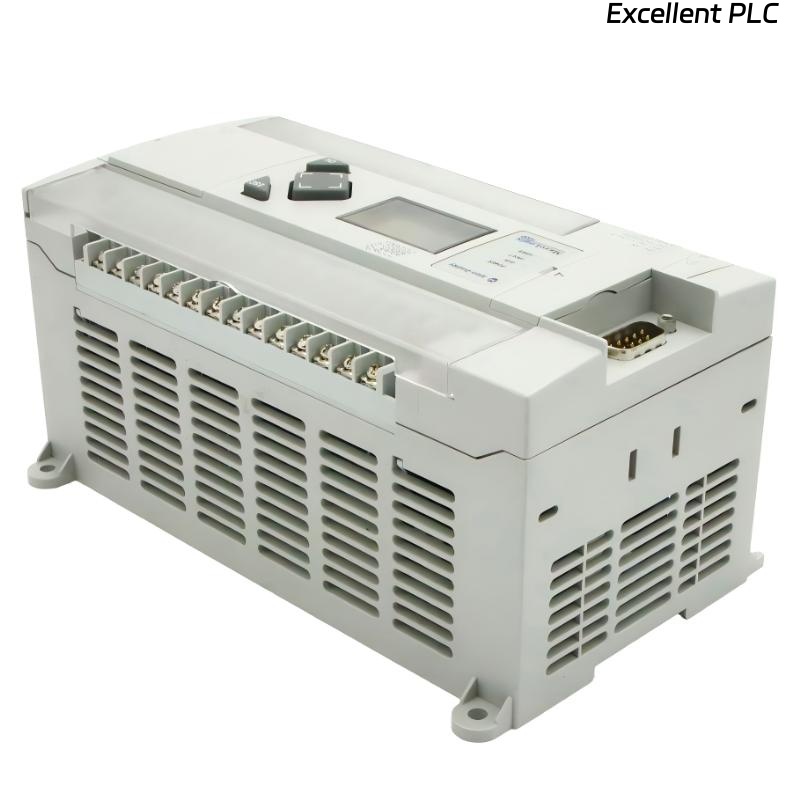

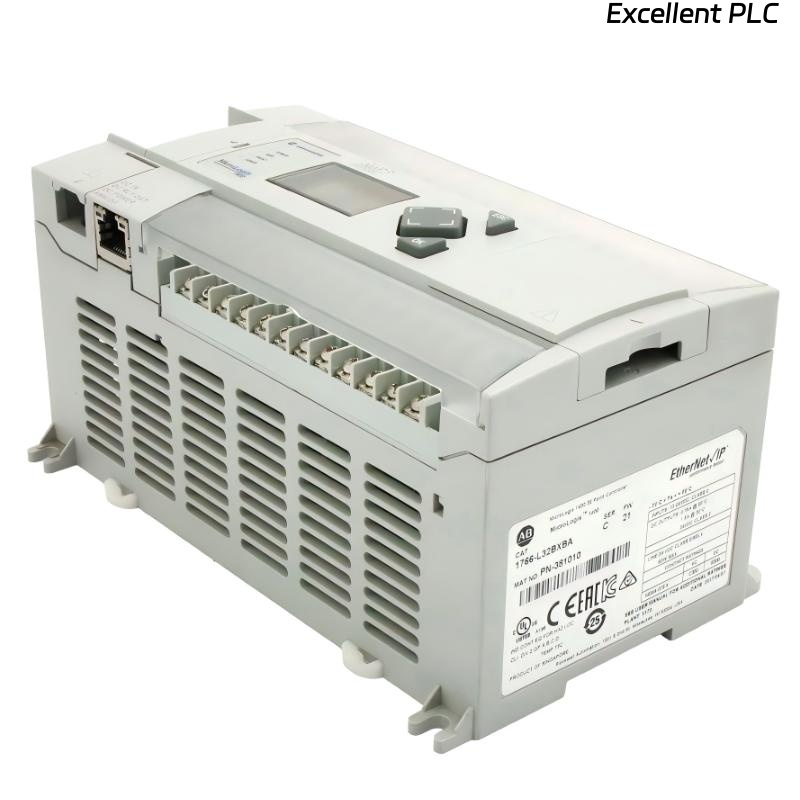

The Allen-Bradley 1766-L32BXBA MicroLogix 1400 Programmable Controller is a high-performance programmable logic controller designed for small to medium industrial automation applications. Manufactured by Rockwell Automation under the Allen-Bradley label, this controller provides both high-speed digital I/O and analog I/O, enabling precise control of machinery, process systems, and building automation.
The 1766-L32BXBA features 12 fast 24 VDC digital inputs, 8 standard 24 VDC digital inputs, 6 relay outputs, 3 fast digital outputs, 3 standard digital outputs, 4 analog inputs (12-bit), and 2 analog outputs (12-bit). This combination of I/O channels allows simultaneous control of discrete devices and analog processes, making it suitable for applications requiring mixed signal processing and high-speed operation.
Engineered for reliable industrial performance, the controller integrates seamlessly with MicroLogix 1400 expansion modules for scalable system configurations. Its versatile I/O, fast response capabilities, and programmable memory make it ideal for controlling production lines, automated machinery, and process monitoring systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Programmable Controller |
| Series | MicroLogix 1400 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Digital Inputs (Fast) | 12 Channels, 24 VDC |
| Digital Inputs (Standard) | 8 Channels, 24 VDC |
| Relay Outputs | 6 Channels |
| Fast Digital Outputs | 3 Channels, 24 VDC |
| Standard Digital Outputs | 3 Channels, 24 VDC |
| Analog Inputs | 4 Channels, 12-bit, 0–10 VDC |
| Analog Outputs | 2 Channels, 12-bit, 0–10 VDC |
| User Memory | 20 KB |
| Power Supply | 120/240 VAC |
| Operating Frequency | 47–63 Hz |
| Power Consumption | 120 VA |
| Controller Architecture | MicroLogix 1400 |
| Mounting Method | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to +55°C |
| Enclosure Rating | IP20 |
| Dimensions | 90 × 180 × 87 mm |
| Weight | 0.9 kg |
Applications
• High-Speed Machine Automation
Controls motors, actuators, and fast processes in assembly, packaging, and production lines with high-speed digital inputs and outputs.
• Mixed Signal Process Control
Simultaneously handles discrete digital and analog signals for temperature, pressure, and flow monitoring.
• Material Handling Systems
Coordinates conveyors, sorters, and automated storage systems using a combination of fast and standard digital I/O.
• Building Automation
Manages lighting, fans, pumps, and other systems requiring both analog and digital control.
• Process Sequencing
Executes ladder logic programs for sequential operations and multi-step manufacturing processes.
• Remote Monitoring and Diagnostics
Integrates with operator interfaces and SCADA systems for monitoring, troubleshooting, and system configuration.
Advantages
• High-Speed Digital I/O
Fast digital inputs and outputs allow precise timing and rapid response for industrial automation processes.
• Combined Analog and Digital Control
Supports both discrete devices and analog process control for versatile applications.
• Expandable and Modular
Compatible with MicroLogix 1400 expansion modules for increasing I/O without replacing the core controller.
• Reliable Industrial Performance
Engineered to perform consistently in standard industrial electrical and environmental conditions.
• Flexible Application Support
Suitable for machine control, process automation, material handling, and building systems.
• Efficient Power Usage
Optimized consumption ensures continuous operation with minimal thermal load.
• Advanced Diagnostics
Monitors inputs, outputs, and system status to reduce downtime and facilitate troubleshooting.
• Ease of Programming
Supports RSLogix software for ladder logic programming, uploading, and debugging.
• Scalable System Design
Multiple controllers or expansion modules can be combined for larger systems.
• Enhanced Reliability
Robust construction ensures long-term stability for critical industrial applications.
