Product Introduction

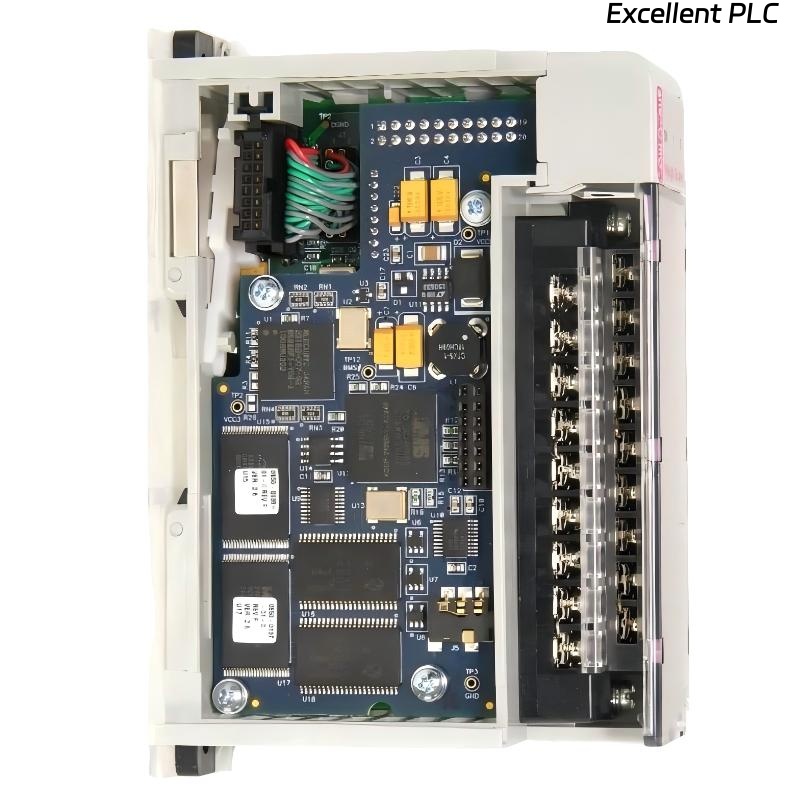

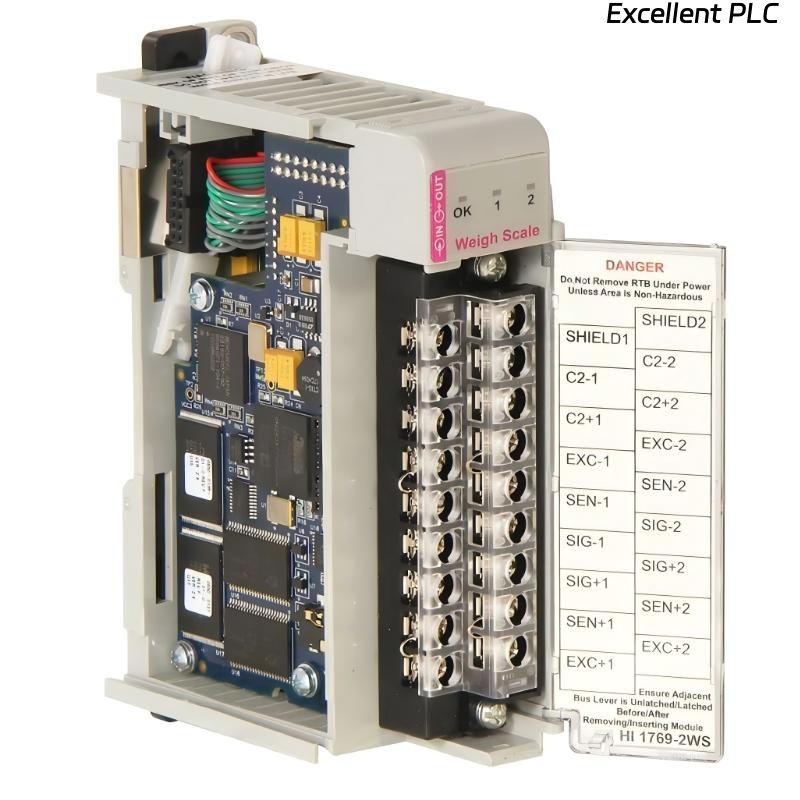

The Allen Bradley 1769-2WS CompactLogix Weigh Scale Module is a precision analog input module designed for industrial weighing applications within the CompactLogix 1769 I/O system. This module allows seamless integration of multiple load cells into a control system, providing accurate weight measurement and data acquisition for automated processes.
The 1769-2WS module supports up to eight 350-ohm load cells, making it suitable for medium-to-large scale weighing systems in industrial applications. It converts analog signals from load cells into digital data that can be processed by a CompactLogix controller, enabling real-time monitoring, control, and integration into automated systems.
Designed for high reliability and industrial performance, this module provides signal conditioning, filtering, and calibration capabilities to ensure accurate and stable weight readings. Its compact form factor allows efficient installation in distributed I/O networks, reducing system complexity while maintaining precise measurement capability.
The module is ideal for applications requiring high-accuracy weighing, such as batching systems, filling machines, packaging lines, and process control applications. By integrating directly into the CompactLogix I/O architecture, the 1769-2WS simplifies automation system design while maintaining precision and reliability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | CompactLogix Weigh Scale Module |
| Model Number | 1769-2WS |
| Series | CompactLogix 1769 I/O Series |
| Manufacturer | Allen Bradley |
| Number of Load Cells Supported | 8 load cells |
| Load Cell Resistance | 350 ohms |
| Module Type | Analog input module for weighing |
| Signal Processing | Provides signal conditioning, filtering, and calibration |
| System Integration | Compatible with CompactLogix 1769 I/O platform |
| Installation | Mounted on Compact I/O backplane |
| Dimensions | 118 x 35 x 87 mm |
| Weight | 0.27 kg |
Applications
• Industrial weighing systems – Integrates multiple load cells to provide accurate weight measurement in manufacturing and process environments.
• Batching and filling machinery – Controls automated batching and filling operations with precise weight measurement.
• Packaging lines – Ensures accurate product weight monitoring for packaging and labeling applications.
• Material handling and inventory systems – Provides weight data for inventory control, conveyor systems, and automated storage.
• Process control automation – Supports integration of weight measurement into overall process control systems.
• High-precision load measurement – Suitable for applications requiring accurate and reliable analog-to-digital weight conversion.
Advantages
• Supports multiple load cells – Can integrate up to eight 350-ohm load cells, enabling scalable weighing solutions.
• Accurate and stable weight measurement – Signal conditioning, filtering, and calibration ensure precise data acquisition.
• Compact and modular design – Easy integration into CompactLogix 1769 I/O systems while saving cabinet space.
• Reliable industrial performance – Designed to operate consistently in harsh industrial environments.
• Seamless controller integration – Fully compatible with CompactLogix controllers for real-time data processing.
• Simplifies automation system design – Provides direct load cell interface without additional hardware.
• Flexible weighing applications – Can be applied in batching, filling, packaging, material handling, and process control systems.
