Allen Bradley 1769-AENTR CompactLogix EtherNet/IP Adapter Module

Product Introduction

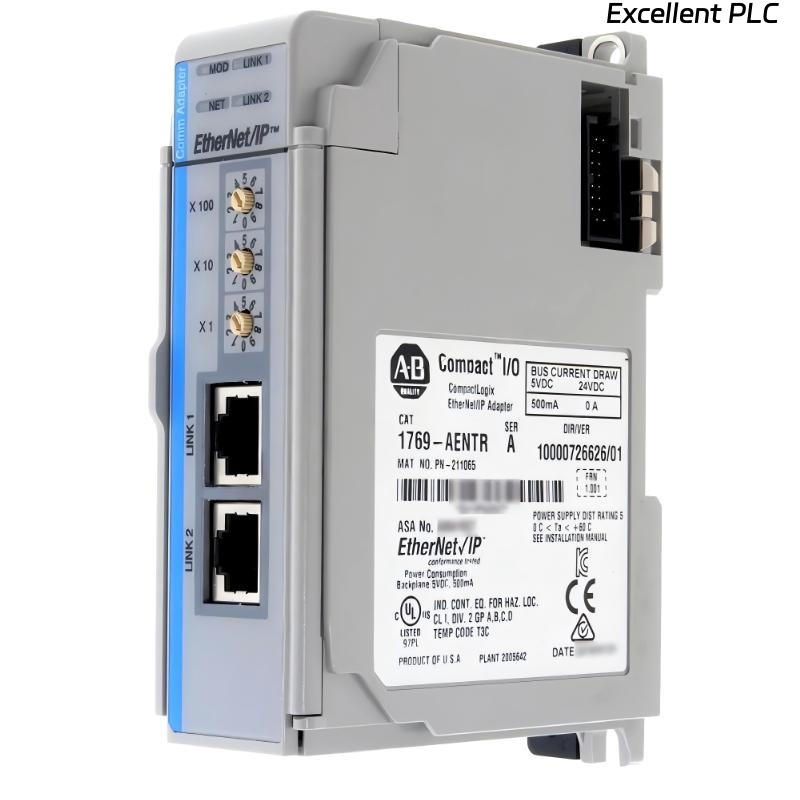

The Allen Bradley 1769-AENTR CompactLogix EtherNet/IP Adapter Module is a high-performance network communication module designed to connect Compact I/O systems to an EtherNet/IP industrial network. It enables CompactLogix distributed I/O architectures by allowing multiple 1769 series modules to communicate with controllers through standard Ethernet infrastructure.

This adapter module supports 10/100 Mbps EtherNet/IP communication and is widely used in modern industrial automation systems where real-time data exchange, flexible network topology, and scalable system architecture are required. By integrating Compact I/O modules into EtherNet/IP networks, the 1769-AENTR helps simplify system wiring while improving communication efficiency across automation platforms.

The module operates on a 24 VDC power supply and provides reliable communication between field devices and centralized controllers. It allows Compact I/O racks to function as remote I/O nodes, enabling efficient data collection and control in distributed control systems.

Designed for industrial environments, the 1769-AENTR offers stable communication performance, compact installation, and seamless compatibility with CompactLogix and ControlLogix controllers. It is commonly deployed in manufacturing automation, machine control systems, material handling systems, and process automation applications where Ethernet-based industrial networking is required.

---

Product Specifications

---

Applications

• Distributed I/O systems – Enables Compact I/O modules to operate as remote I/O over EtherNet/IP networks.

• Manufacturing automation – Connects sensors, actuators, and control modules to PLC systems using industrial Ethernet.

• Machine control applications – Provides high-speed communication between machines and control systems.

• Material handling systems – Supports communication between conveyors, robotic equipment, and centralized controllers.

• Packaging and assembly lines – Enables reliable data exchange across multiple automation devices within production lines.

• Industrial Ethernet network expansion – Integrates CompactLogix I/O into existing EtherNet/IP network infrastructures.

---

Advantages

• High-speed Ethernet communication – Supports 10/100 Mbps EtherNet/IP networking for efficient data transmission.

• Supports distributed control architectures – Allows Compact I/O modules to function as remote I/O nodes.

• Simplifies system wiring – Ethernet networking reduces the need for extensive field wiring.

• Compact and lightweight design – Easy to install within industrial control cabinets.

• Seamless controller compatibility – Works efficiently with CompactLogix and ControlLogix PLC systems.

• Improved system scalability – Allows expansion of automation networks without major infrastructure changes.

• Reliable industrial operation – Designed for continuous operation in demanding industrial environments.

FAQ

1. What is the primary function of the 1769-AENTR module?
   It acts as an EtherNet/IP adapter that connects Compact I/O modules to an industrial Ethernet network.

2. What communication protocol does this module support?
   The module supports EtherNet/IP communication for industrial automation networks.

3. What network speeds are supported by the adapter?
   It supports Ethernet communication speeds of 10 Mbps and 100 Mbps.

4. How does the module integrate with CompactLogix systems?
   It mounts directly onto the Compact I/O backplane and allows the modules to communicate with controllers through the EtherNet/IP network.

5. Can the module support distributed I/O configurations?
   Yes, it enables Compact I/O racks to function as remote I/O nodes in distributed automation architectures.

6. What types of controllers can communicate with this module?
   CompactLogix and ControlLogix controllers commonly communicate with the 1769-AENTR via EtherNet/IP.

7. What types of industrial devices can be connected through this module?
   Sensors, actuators, drives, and other automation equipment connected through Compact I/O modules.

8. How does EtherNet/IP improve automation system flexibility?
   It allows devices to communicate over standard Ethernet infrastructure, simplifying network expansion and integration.

9. Is this module suitable for large automation networks?
   Yes, EtherNet/IP networks support multiple nodes and distributed control systems.

10. How does the 1769-AENTR help improve system scalability?
    It allows additional remote I/O racks to be added to the network without major system redesign.

Related Models

---

Popular Models
