Product Introduction

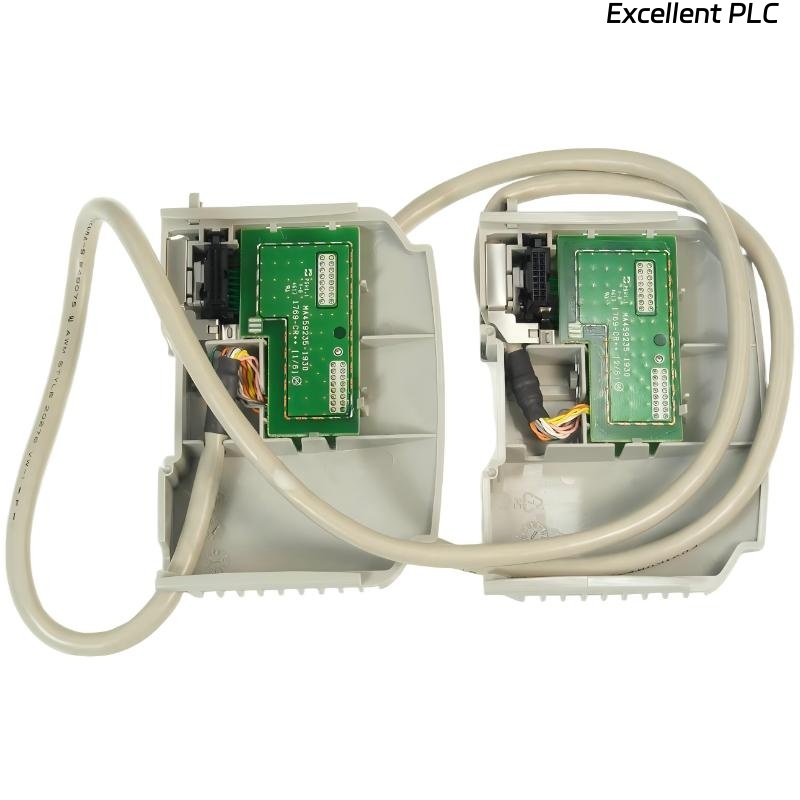

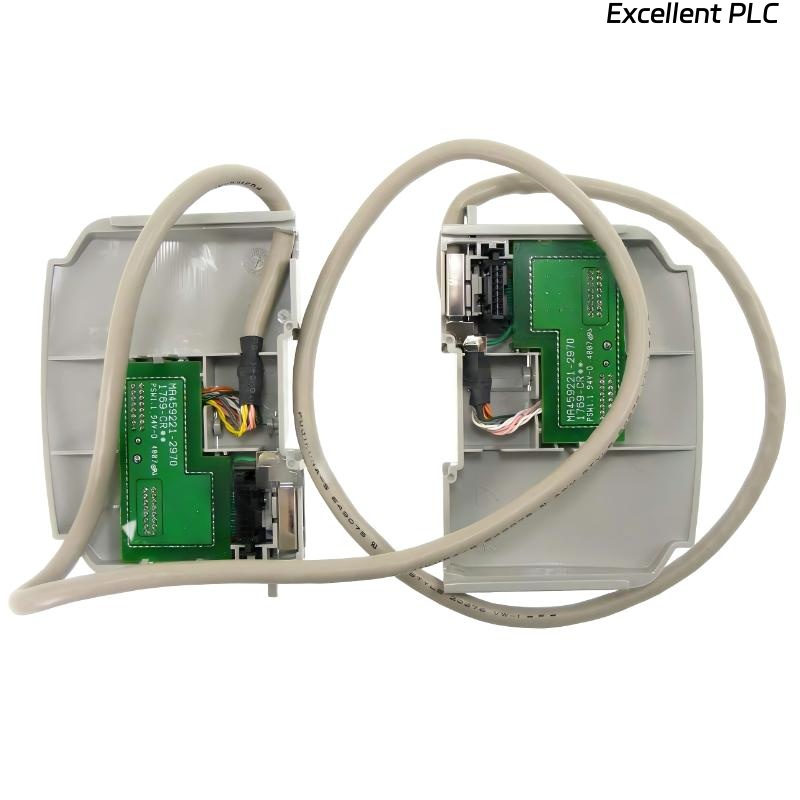

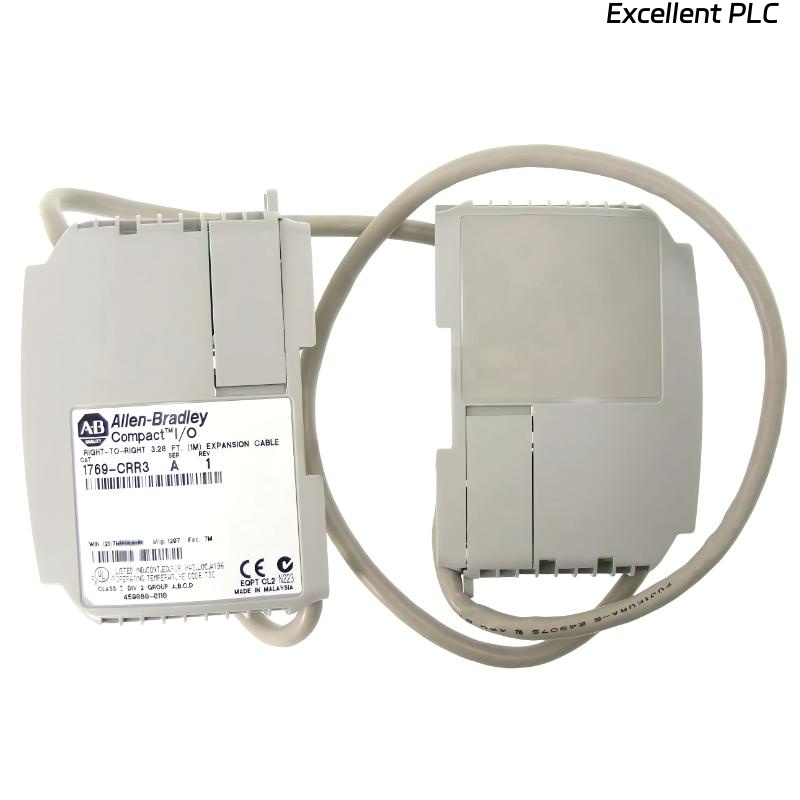

The Allen Bradley 1769-CRR3 CompactLogix Compact I/O Communication Bus Expansion Cable is designed to extend the internal communication bus between separated Compact I/O module banks within CompactLogix control systems. This cable enables flexible system layouts by allowing multiple groups of 1769 I/O modules to be installed in different sections of a control cabinet while maintaining continuous backplane communication.
The 1769-CRR3 cable features a right-to-right connection orientation, which connects the right expansion port of one Compact I/O bank to the right expansion port of another. This configuration supports system expansion while preserving the integrity of the CompactLogix backplane communication architecture.
Built for industrial environments, the cable operates reliably within standard industrial temperature ranges and supports stable signal transmission between module banks. It plays an important role in expanding CompactLogix systems without affecting controller performance or requiring additional communication hardware.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Compact I/O Communication Bus Expansion Cable |
| Model Number | 1769-CRR3 |
| Series | CompactLogix 1769 I/O Series |
| Manufacturer | Allen Bradley |
| Cable Type | Communication bus expansion cable |
| Connection Orientation | Right to Right |
| Cable Length | 1 m |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| System Function | Expands Compact I/O communication bus between module banks |
| Compatibility | CompactLogix 1769 I/O systems |
| Installation | Connects separated Compact I/O banks |
| Weight | 0.35 kg |
Applications
• CompactLogix I/O bank expansion – Enables multiple Compact I/O module banks to communicate through the internal backplane when installed in separate locations.
• Industrial control cabinet layout optimization – Allows flexible placement of I/O modules across large control panels.
• Machine automation systems – Connects distributed I/O modules used for sensors, actuators, and machine monitoring.
• Manufacturing production lines – Provides reliable communication between separate I/O groups controlling different sections of production equipment.
• Packaging and assembly automation – Supports system designs where I/O modules must be distributed to reduce field wiring complexity.
• Process control systems – Ensures consistent communication between controller-connected I/O modules installed across cabinet sections.
Advantages
• Extended installation flexibility – The 1-meter cable length allows greater separation between Compact I/O banks.
• Reliable backplane communication – Maintains stable data exchange between CompactLogix controllers and connected modules.
• Simple system expansion – Enables additional module banks to be added without modifying system architecture.
• Compact and easy installation – Designed for quick connection between Compact I/O module groups.
• Optimized cabinet layout – Helps reduce wiring congestion and improve control panel organization.
• Industrial-grade reliability – Built to operate continuously within typical industrial temperature environments.
• Seamless compatibility with CompactLogix systems – Specifically designed for Allen Bradley 1769 series I/O platforms.
