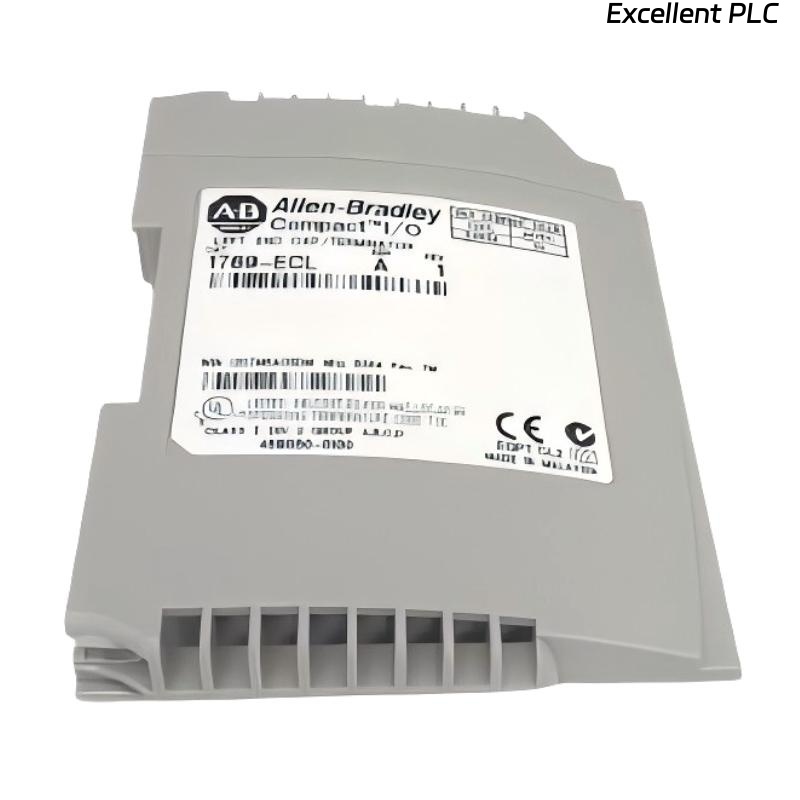

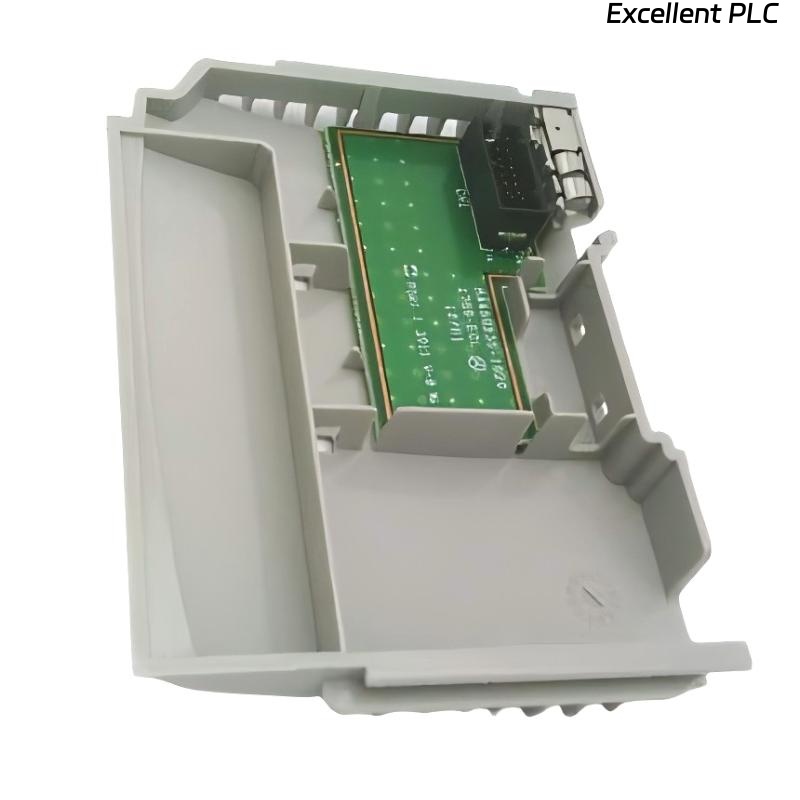

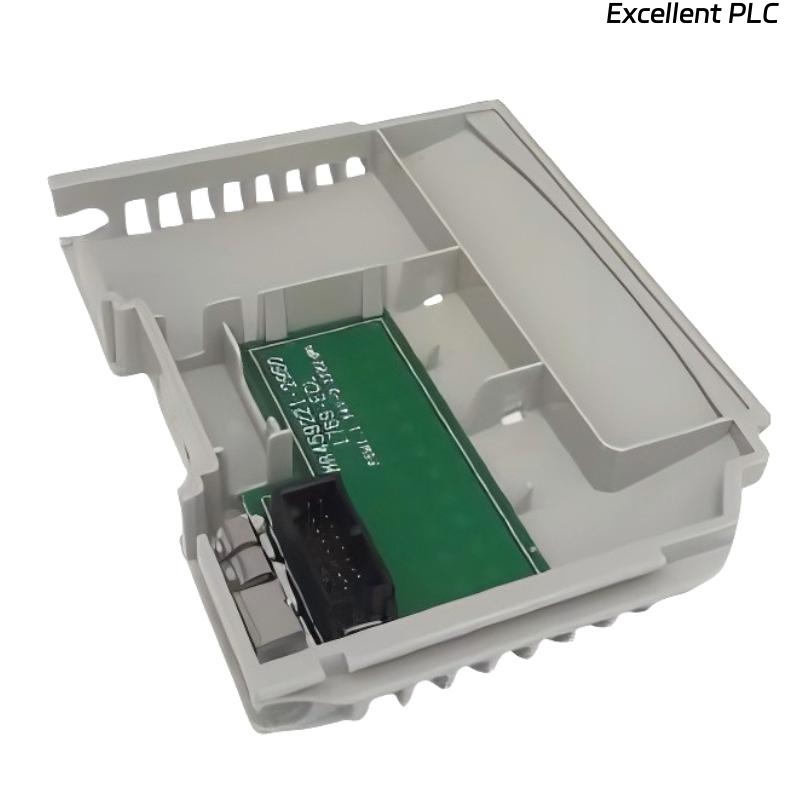

Allen Bradley 1769-ECL CompactLogix Left End Cap/Terminator

Product Introduction

The Allen Bradley 1769-ECL CompactLogix Left End Cap/Terminator is a critical accessory for CompactLogix 1769 I/O systems. It is designed to terminate the left end of a Compact I/O module bank, ensuring proper bus signaling and electrical isolation across the CompactLogix backplane.

By providing stable termination, the 1769-ECL prevents signal reflections and communication errors that can occur in improperly terminated I/O racks. Its compact design allows easy installation in control panels with limited space, and it integrates seamlessly with the 1769 series modules without requiring additional hardware.

This end cap is widely used in industrial automation systems where system reliability and accurate communication between I/O modules and controllers are essential. Typical applications include manufacturing lines, machine control, process automation, and distributed I/O networks. Its robust construction makes it suitable for harsh industrial environments, supporting continuous operation and stable system performance.

---

Product Specifications

---

Applications

• Compact I/O bus termination – Ensures stable communication across 1769 I/O module banks.

• Industrial automation control panels – Maintains signal integrity in densely populated I/O racks.

• Machine control systems – Provides proper electrical termination for PLC-connected I/O modules.

• Manufacturing automation lines – Supports accurate data exchange between distributed modules and the controller.

• Process automation systems – Prevents communication errors in critical process control applications.

• Distributed I/O configurations – Enables safe expansion of multiple I/O banks without signal degradation.

---

Advantages

• Reliable communication termination – Eliminates signal reflection and bus errors on the left side of I/O banks.

• Compact design – Easy to install in control panels with limited space.

• Seamless integration – Compatible with all 1769 Compact I/O modules.

• Industrial-grade durability – Ensures long-term operation in harsh environments.

• Simple installation – Snap-on design for quick mounting on DIN rails.

• System stability enhancement – Helps maintain accurate communication between I/O modules and controllers.

• Cost-effective accessory – Reduces the risk of troubleshooting I/O communication issues caused by improper termination.

FAQ

1. What is the primary function of the 1769-ECL module?
   It terminates the left side of a Compact I/O bank to ensure proper backplane communication.

2. Can the 1769-ECL be used with all CompactLogix 1769 modules?
   Yes, it is compatible with all modules in the 1769 Compact I/O series.

3. What does proper termination prevent?
   It prevents signal reflections, communication errors, and data corruption across the I/O bus.

4. How is the module installed?
   It is mounted at the left end of the I/O bank, typically on a DIN rail, with snap-on connection.

5. Does the module require a power supply?
   No, the terminator does not require external power.

6. Is the 1769-ECL suitable for industrial environments?
   Yes, it is designed for rugged industrial applications with continuous operation.

7. Does it support distributed I/O banks?
   Yes, it ensures proper termination for multiple I/O banks in distributed configurations.

8. What material is used in the module?
   It is constructed from industrial-grade plastic with conductive elements for termination.

9. Does it affect controller performance?
   No, it only ensures signal integrity; it does not impact controller logic.

10. Can it be installed alongside other termination modules?
    Yes, it is designed to work with the right-end terminator and other CompactLogix accessories.
