Product Introduction

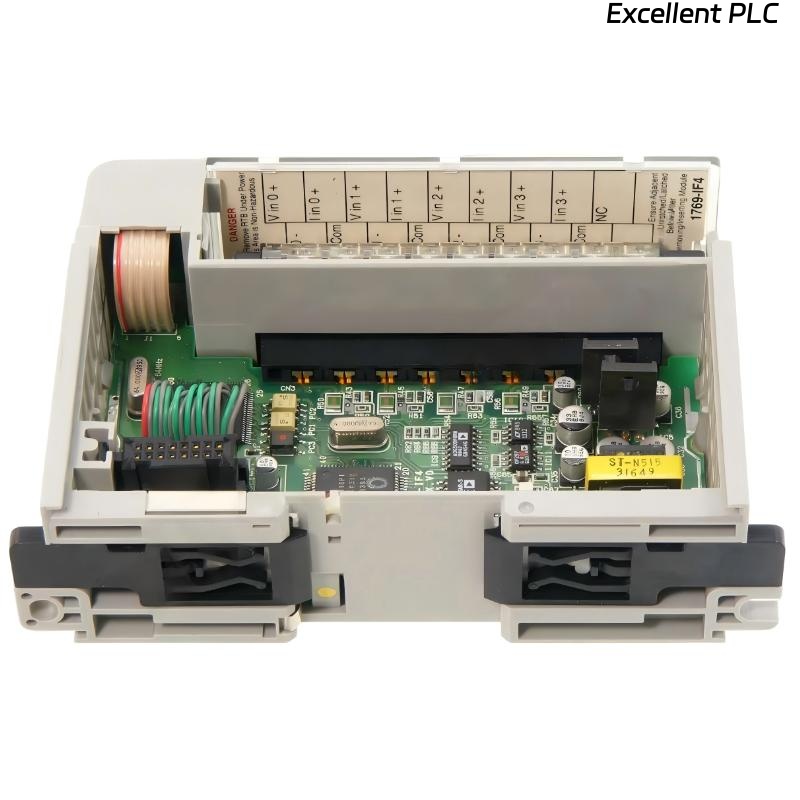

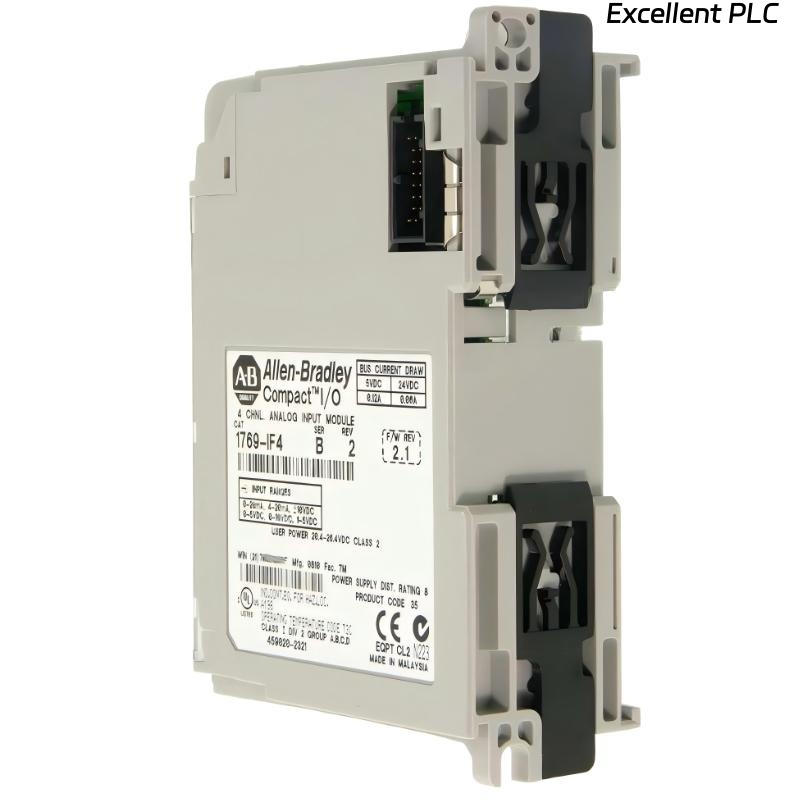

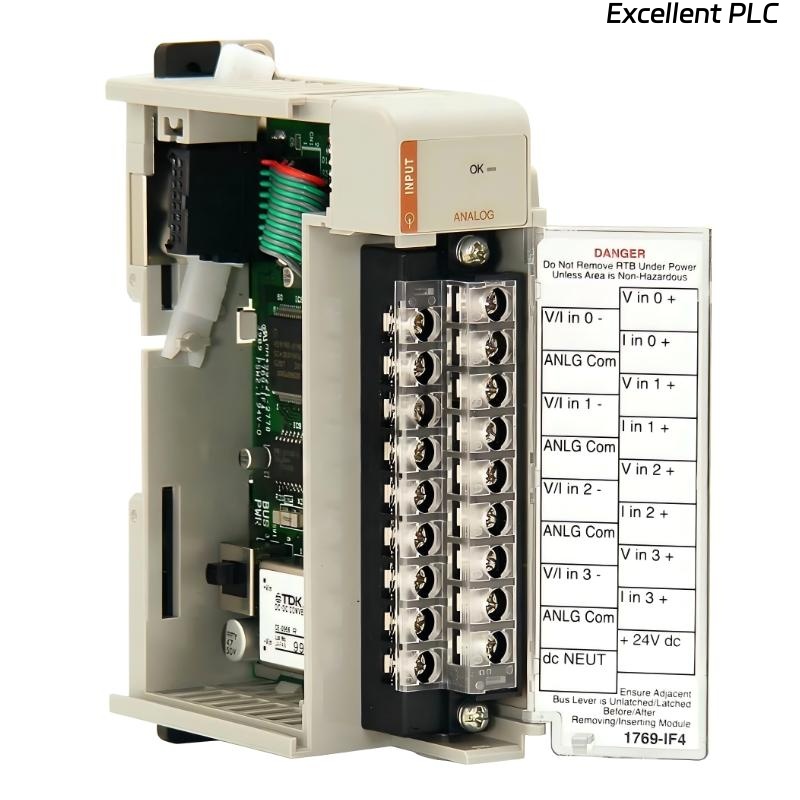

The Allen Bradley 1769-IF4 CompactLogix 4 Channel Analog Current/Voltage Input Module is an industrial-grade analog input module designed for high-performance automation and control applications. Manufactured by Allen Bradley, this module enables CompactLogix systems to interface with field devices that provide analog current (0–20 mA) or voltage signals. It is ideal for collecting precise process data in manufacturing, process control, and automation environments.
The 1769-IF4 module is engineered to convert analog signals from sensors, transmitters, and other field instruments into digital signals for processing by the CompactLogix controller. Its four-channel design allows simultaneous monitoring of multiple process variables such as temperature, pressure, flow, and level. With high accuracy and fast sampling, it supports real-time control and monitoring in industrial applications.
Designed for integration with Allen Bradley CompactLogix PLC systems, the module provides reliable signal acquisition, robust noise immunity, and precise analog conversion. It operates with 24 VDC power and consumes minimal energy while maintaining consistent performance. The compact form factor allows easy installation in control panels, supporting efficient space utilization.
This module is widely used in industrial automation, process control, and machine monitoring systems where reliable analog input data is critical. It ensures accurate signal processing for control loops, monitoring, and data acquisition, contributing to overall system efficiency and reliability.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 1769-IF4 |
| Manufacturer | Allen Bradley |
| Product Type | CompactLogix Analog Input Module |
| Function | Converts analog current or voltage signals to digital data for PLCs |
| Channel Count | 4 channels |
| Input Types | 0–20 mA current, 0–10 V voltage |
| Power Supply | 24 VDC |
| Power Consumption | 33.6 W |
| Power Dissipation | 7.5 W |
| Integration | Allen Bradley CompactLogix PLC systems |
| Mounting Method | DIN rail or backplane mounting in CompactLogix chassis |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.3 kg |
Applications
• Industrial process control systems for monitoring temperature, pressure, flow, or level using analog sensors.
• Automated manufacturing lines requiring precise analog input data for real-time control.
• Machine monitoring systems to track motor currents, process variables, and actuator feedback.
• Water and wastewater treatment plants for analog measurement of flow, level, or pressure.
• Chemical and petrochemical plants for process variable monitoring in reaction or distillation systems.
• Energy and power generation systems for monitoring turbine, generator, or boiler parameters.
• Integration with CompactLogix PLC systems to enable fast, accurate analog signal processing.
Advantages
• High-accuracy analog input for precise process measurements.
• 4-channel flexibility allows monitoring of multiple sensors simultaneously.
• Supports current and voltage signals for versatile field device compatibility.
• Compact and modular design for easy installation in control panels.
• Reliable signal conversion with robust noise immunity in industrial environments.
• Low power dissipation to improve energy efficiency and reduce heat generation.
• Seamless integration with Allen Bradley CompactLogix PLC systems.
• Enhanced process control enabling fast, accurate feedback for automation and monitoring.
