Allen Bradley 1769-IF4I CompactLogix 4 Channel Analog Current/Voltage Input Module

Product Introduction

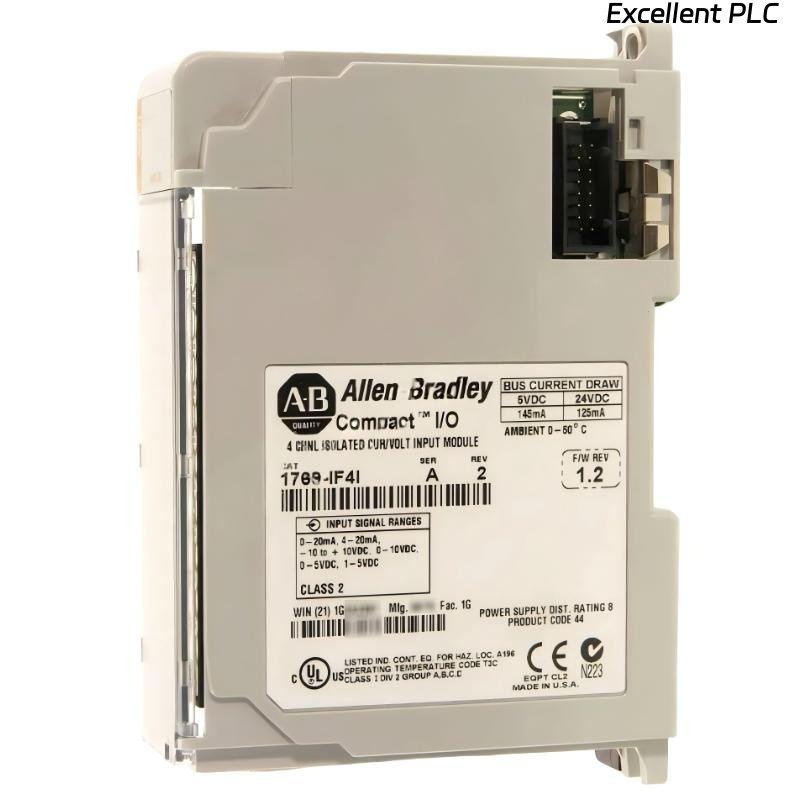

The Allen Bradley 1769-IF4I CompactLogix 4 Channel Analog Current/Voltage Input Module is a high-performance analog input device designed for industrial automation and control systems. Manufactured by Allen Bradley, this module allows CompactLogix controllers to interface with field devices that provide analog current (0–20 mA) or voltage signals, delivering precise process data for monitoring and control.

The 1769-IF4I module features 14-bit resolution, ensuring high-accuracy conversion of analog signals into digital data for CompactLogix PLCs. Its four-channel design enables simultaneous measurement of multiple process variables such as temperature, pressure, flow, and level. The module is engineered for robust performance in industrial environments, providing reliable signal acquisition, minimal noise interference, and fast response for real-time monitoring and control.

Designed for integration with Allen Bradley CompactLogix systems, the 1769-IF4I supports a wide range of industrial applications, including manufacturing automation, process control, and machine monitoring. Its compact form factor allows easy installation in control panels, optimizing space utilization while delivering consistent and reliable performance.

---

Product Specifications

---

Applications

• Industrial process control systems for monitoring temperature, pressure, flow, or level from analog sensors.

• Automated manufacturing lines requiring high-accuracy analog input data for real-time control loops.

• Machine monitoring and diagnostics to track motor currents, actuator positions, and process variables.

• Water and wastewater treatment plants for analog measurement of process variables.

• Chemical, petrochemical, and energy facilities for process control and safety monitoring.

• Integration with CompactLogix PLC systems for automation and industrial control applications.

• Predictive maintenance programs using analog input data to detect early mechanical or process faults.

---

Advantages

• High-accuracy 14-bit resolution for precise analog measurements.

• Four-channel input allows simultaneous monitoring of multiple process variables.

• Supports both current and voltage signals for versatile field device compatibility.

• Compact, modular design for easy installation in control panels.

• Reliable analog-to-digital conversion with robust noise immunity in industrial environments.

• Seamless integration with CompactLogix PLC systems for automation and process control.

• Enhanced process monitoring for real-time control and data acquisition.

• Low maintenance and long-term reliability for industrial applications.

FAQ

1. What types of input signals does the 1769-IF4I support?
   It supports 0–20 mA current and 0–10 V voltage analog signals.

2. What is the analog-to-digital resolution of the module?
   The module features 14-bit resolution for precise signal conversion.

3. How many channels does the module have?
   It provides 4 independent analog input channels.

4. Which PLC systems is this module compatible with?
   It is designed for Allen Bradley CompactLogix PLC systems.

5. Can it be used for high-speed analog signal acquisition?
   Yes, it supports fast conversion rates suitable for real-time monitoring and control.

6. Does the module provide noise immunity in industrial environments?
   Yes, it is engineered to minimize electrical noise and interference.

7. Is this module suitable for process control applications?
   Yes, it can monitor temperature, pressure, flow, and level for industrial processes.

8. How is the module mounted in a system?
   It can be mounted on a CompactLogix backplane or DIN rail in a control panel.

9. Can multiple 1769-IF4I modules be used together?
   Yes, multiple modules can be installed to expand the number of analog inputs in a system.

10. How does the module contribute to predictive maintenance?
    By providing accurate analog input data, it supports condition monitoring and early detection of process or equipment issues.
