Product Introduction

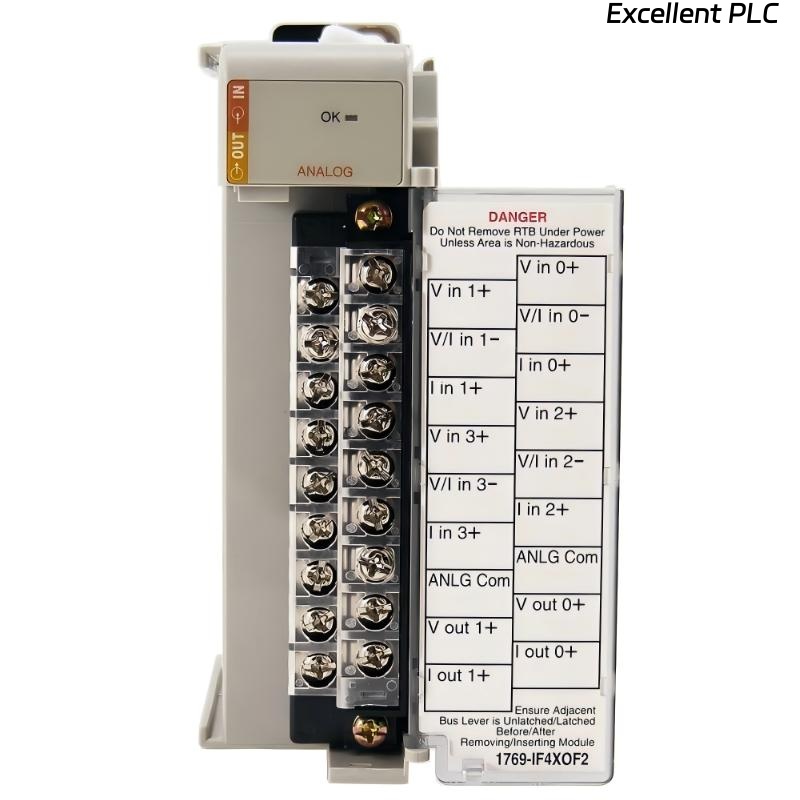

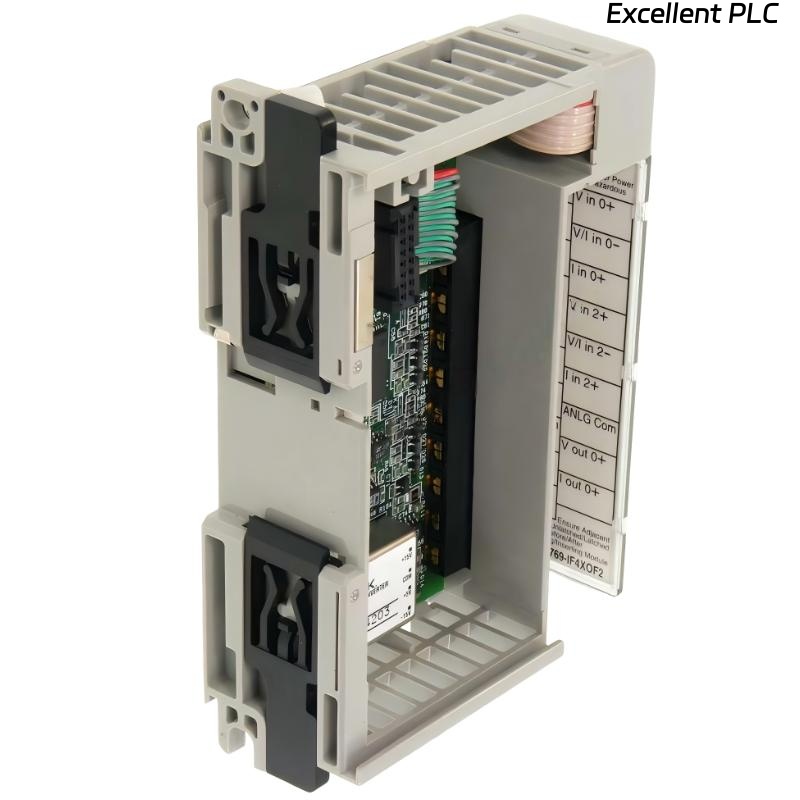

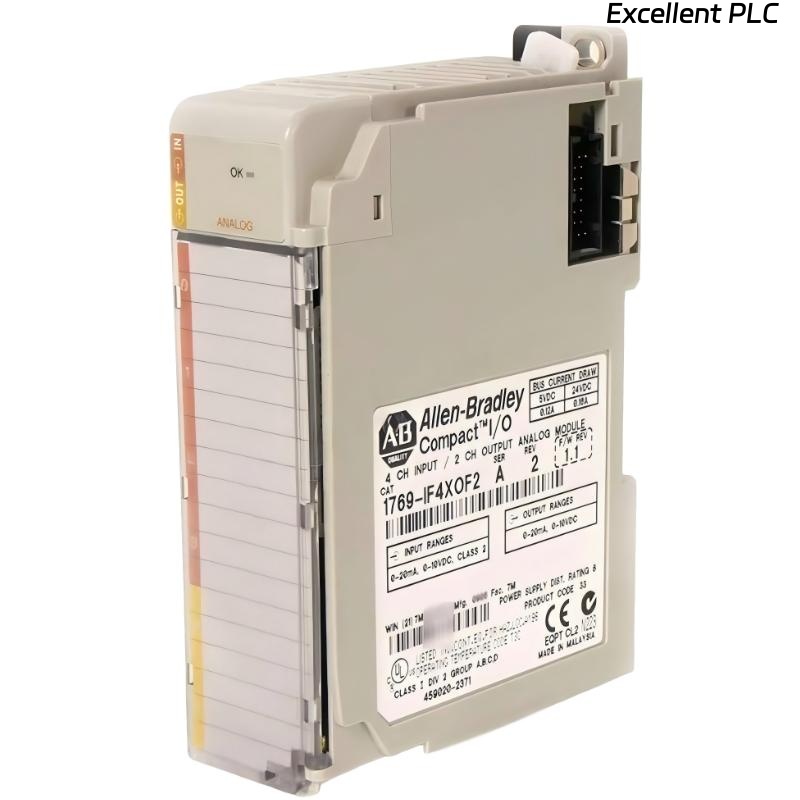

The Allen Bradley 1769-IF4XOF2 CompactLogix Compact Combination Analog I/O Module is a versatile analog input/output module designed for industrial automation applications. Manufactured by Allen Bradley, this module combines four analog input channels and two high-speed analog output channels in a compact form factor, enabling CompactLogix controllers to interface efficiently with field devices for both measurement and control.
The 1769-IF4XOF2 module supports differential or single-ended analog inputs and high-speed single-ended analog outputs. It allows simultaneous monitoring and control of process variables such as temperature, pressure, flow, and level. The module provides accurate signal acquisition and conversion, ensuring reliable data for real-time control loops and industrial process automation.
Its compact design allows efficient use of panel space while maintaining seamless integration with Allen Bradley CompactLogix PLC systems. With robust noise immunity and precise analog conversion, this module is suitable for harsh industrial environments, supporting predictive maintenance and operational efficiency.
This combination I/O module is commonly used in manufacturing, water and wastewater treatment, chemical processing, and power generation industries. Its dual functionality of input and output channels enables simplified system architecture, reduced wiring complexity, and cost-effective deployment in automation systems.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 1769-IF4XOF2 |
| Manufacturer | Allen Bradley |
| Product Type | Compact Combination Analog I/O Module |
| Input Channels | 4 analog input channels (differential or single-ended) |
| Output Channels | 2 high-speed single-ended analog outputs |
| Input Voltage Range | 0–10 VDC |
| Input Current Range | 0–20 mA |
| Output Voltage Range | 0–10 VDC |
| Output Current Range | 0–20 mA |
| Integration | Allen Bradley CompactLogix PLC systems |
| Mounting Method | DIN rail or backplane mounting in CompactLogix chassis |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.29 kg |
Applications
• Industrial process monitoring and control for temperature, pressure, flow, and level using analog signals.
• Automated manufacturing systems requiring combined analog input and output functionality.
• Machine monitoring and control loops with high-speed analog output requirements.
• Water and wastewater treatment plants for precise measurement and control of process variables.
• Chemical and petrochemical process control applications needing accurate analog I/O.
• Power generation systems where analog monitoring and control signals are integrated into CompactLogix PLC systems.
• Predictive maintenance programs that leverage analog input data for condition monitoring and output control.
Advantages
• Compact combination module providing both analog inputs and outputs in a single device.
• Flexible input configuration supporting differential or single-ended analog signals.
• High-speed analog outputs suitable for real-time control applications.
• Supports both current and voltage signals for broad device compatibility.
• Reliable analog conversion with robust noise immunity in industrial environments.
• Seamless integration with Allen Bradley CompactLogix PLC systems.
• Simplified wiring and reduced panel space compared to separate input and output modules.
• Accurate and fast signal processing for improved process control and monitoring.
