Product Introduction

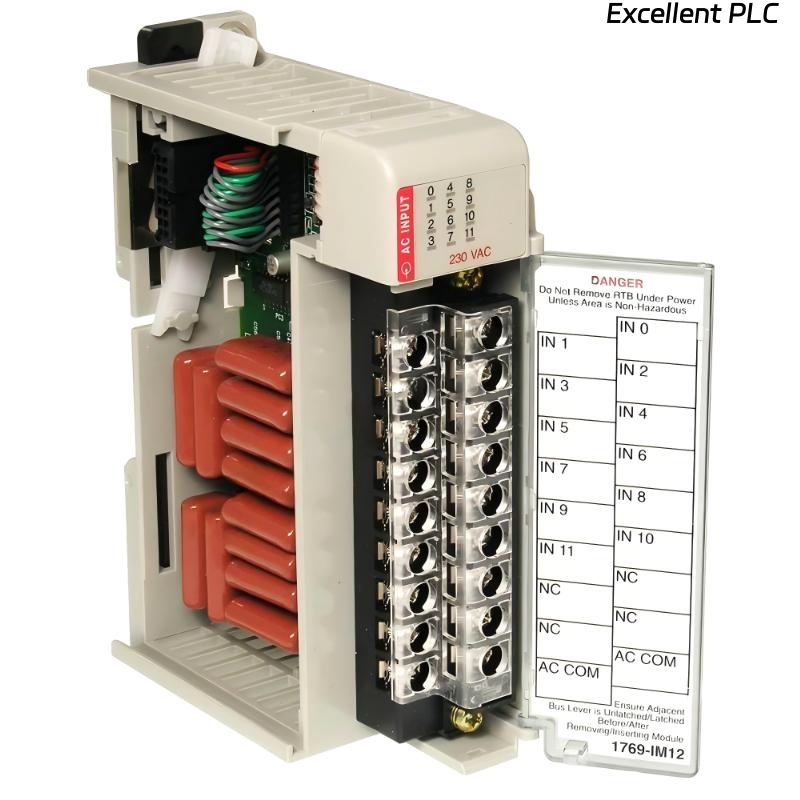

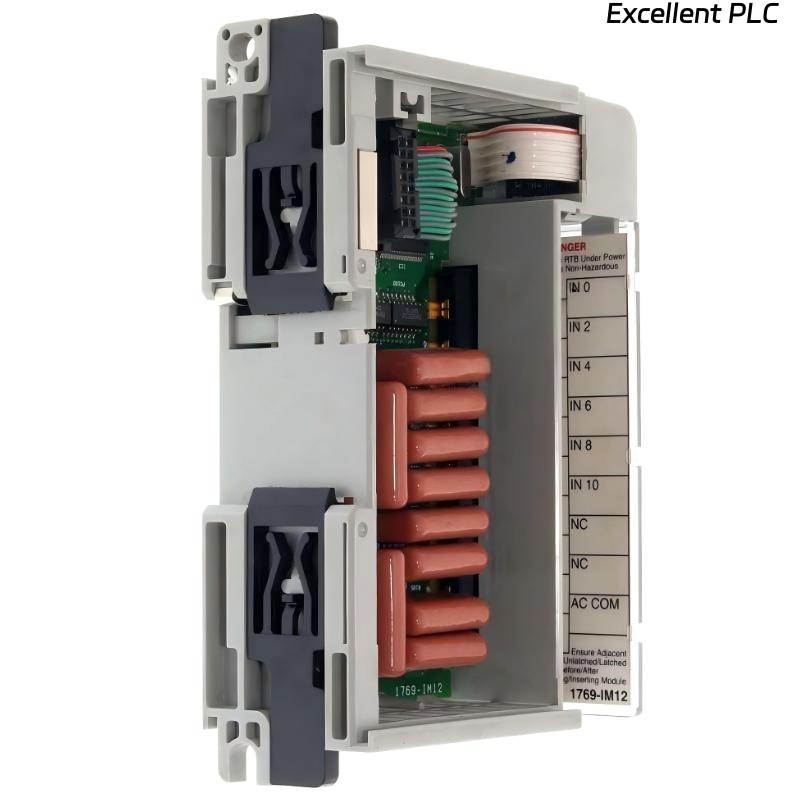

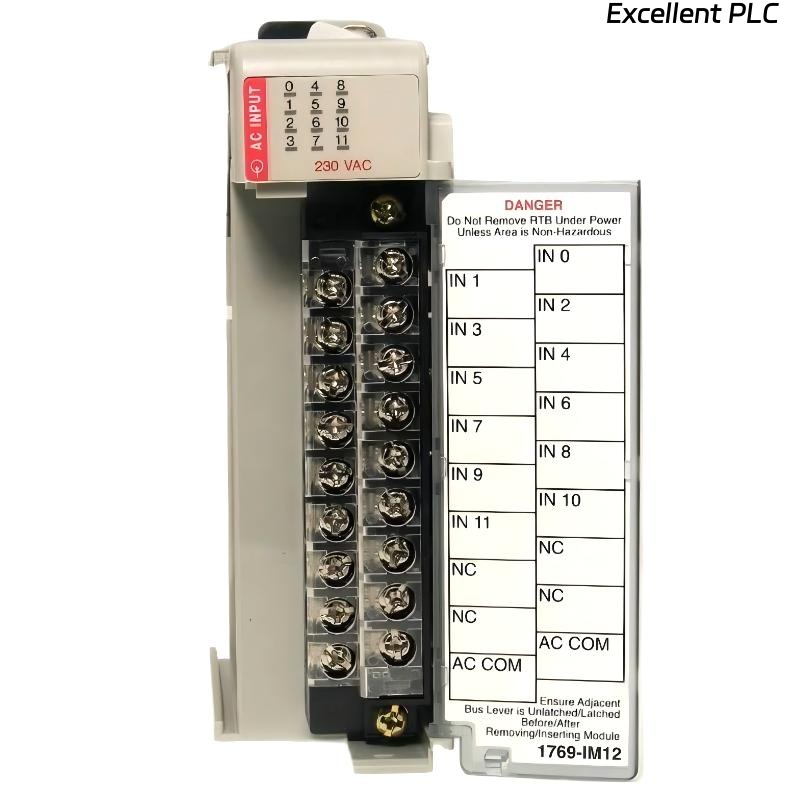

The Allen Bradley 1769-IM12 CompactLogix Compact AC Input Module is a reliable digital input module designed for industrial automation systems that require monitoring of AC voltage signals. Developed by Allen Bradley, this module enables CompactLogix controllers to receive input signals from various AC-powered field devices such as switches, sensors, and control equipment.
The 1769-IM12 module provides 12 discrete AC input points, allowing multiple field signals to be monitored simultaneously. It is designed to operate with AC voltage signals ranging from 159 to 265 VAC, making it suitable for a wide range of industrial electrical systems. The module converts incoming AC signals into digital signals that can be processed by the CompactLogix PLC, enabling accurate monitoring and control of industrial processes.
Its compact and modular design allows easy installation in control cabinets while maintaining compatibility with other CompactLogix modules. The module is engineered for stable performance in demanding industrial environments, providing reliable signal detection and high noise immunity. This makes it an ideal solution for manufacturing systems, machine automation, and process monitoring applications.
Widely used in industrial automation, the 1769-IM12 module helps improve system reliability by ensuring accurate input signal acquisition from AC-powered devices in the field.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 1769-IM12 |
| Manufacturer | Allen Bradley |
| Product Type | Compact AC Input Module |
| Number of Input Points | 12 |
| Input Voltage Range | 159–265 VAC |
| Signal Type | AC digital input |
| Application System | CompactLogix PLC systems |
| Mounting Method | DIN rail or CompactLogix backplane installation |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.3 kg |
Applications
• Industrial automation systems for monitoring AC-powered switches and sensors.
• Manufacturing production lines requiring reliable digital input signal detection.
• Machine control systems where AC signal monitoring is required for operational feedback.
• Process control environments such as chemical, energy, and water treatment facilities.
• Industrial safety monitoring systems detecting status signals from protection devices.
• Power distribution monitoring in automated control panels.
• Integration with CompactLogix PLC platforms for centralized control and monitoring.
Advantages
• 12-point digital input capacity for efficient signal monitoring.
• Wide AC voltage input range supporting common industrial power systems.
• Reliable signal detection for accurate PLC data processing.
• Compact modular design saving control cabinet space.
• High electrical noise immunity suitable for harsh industrial environments.
• Easy integration with CompactLogix controllers and existing automation systems.
• Stable performance and long operational lifespan in industrial applications.
• Supports scalable automation systems with additional CompactLogix modules.
