Product Introduction

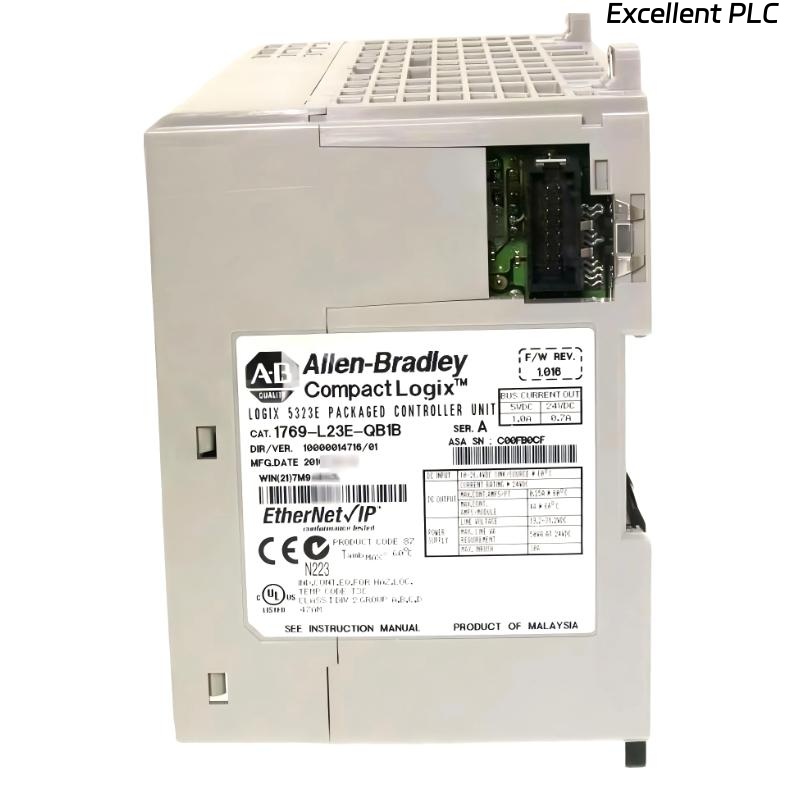

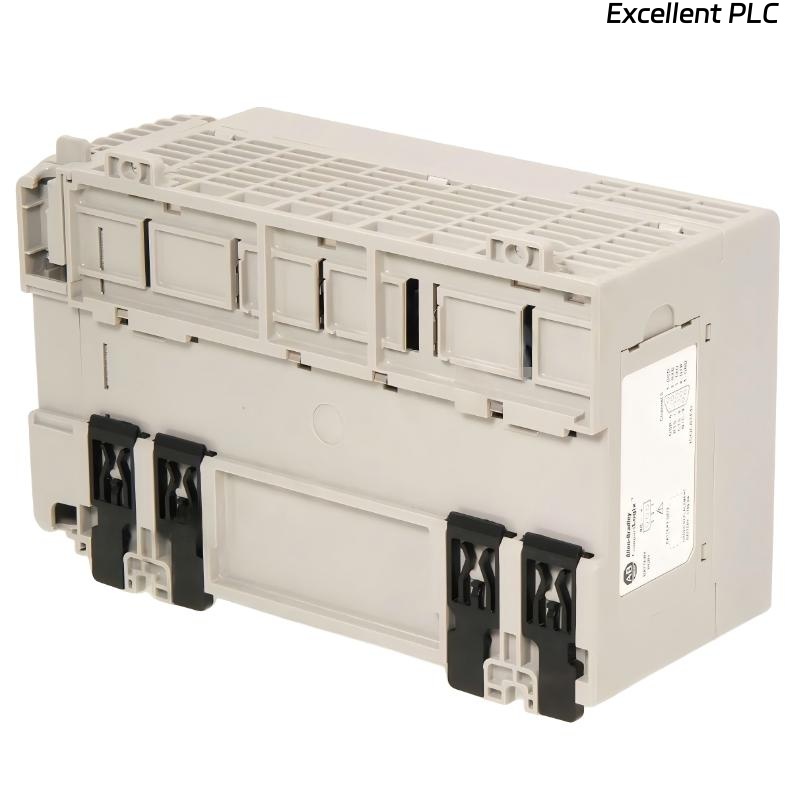

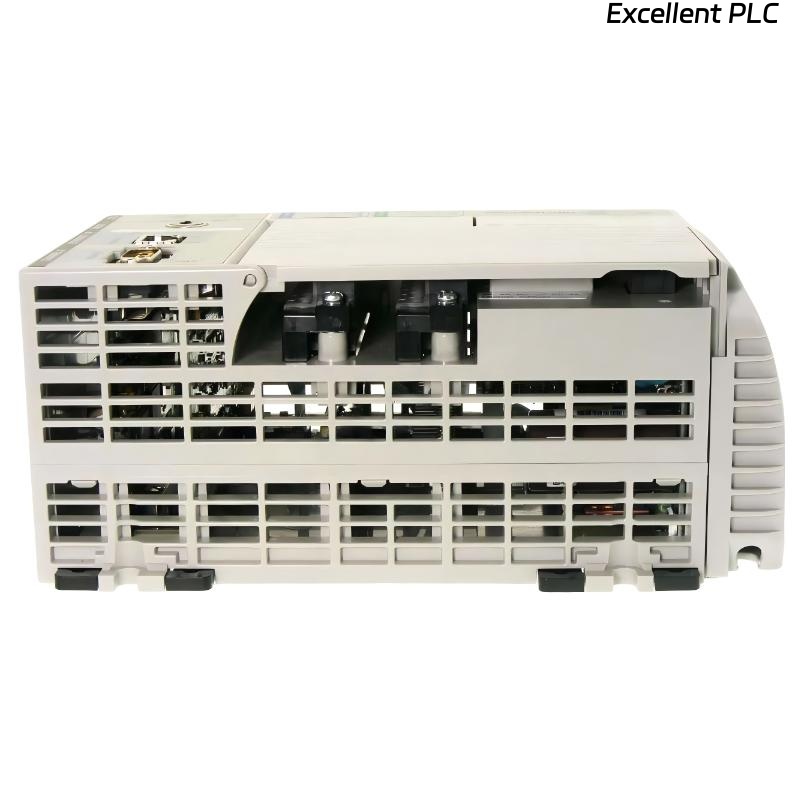

The Allen Bradley 1769-L23E-QB1B CompactLogix Packaged EtherNet Controller is a compact and integrated programmable automation controller designed for small to medium-scale industrial automation systems. Developed by Allen Bradley, this controller combines processing capability, built-in digital I/O, and EtherNet communication in a single unit, simplifying system architecture and installation.
The 1769-L23E-QB1B controller features 16 digital inputs and 16 digital outputs, enabling direct connection to sensors, switches, actuators, and other field devices without requiring additional I/O modules. Powered by a 24 VDC supply, the controller efficiently processes real-time automation tasks while maintaining stable operation in industrial environments.
Equipped with 512 KB of user memory, the controller provides sufficient capacity for automation programs, data handling, and communication tasks. The integrated EtherNet communication interface enables seamless connectivity with industrial networks, allowing easy system integration, remote monitoring, and data exchange with other controllers and automation devices.
Designed for reliability and ease of deployment, the CompactLogix packaged controller is widely used in manufacturing automation, packaging machinery, material handling systems, and other industrial applications where a compact and network-capable control solution is required.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 1769-L23E-QB1B |
| Manufacturer | Allen Bradley |
| Product Type | CompactLogix Packaged EtherNet Controller |
| User Memory | 512 KB |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Operating Voltage | 24 VDC |
| Current Draw @ 5 VDC | 1000 mA |
| Current Draw @ 24 VDC | 700 mA |
| Communication Interface | EtherNet |
| Dimensions | 203.2 × 132 mm |
| Weight | 0.91 kg |
Applications
• Industrial machine automation requiring compact programmable control with built-in I/O.
• Packaging and assembly systems for real-time equipment control and monitoring.
• Material handling systems such as conveyors, sorting systems, and automated storage.
• Manufacturing production lines requiring reliable PLC control and network connectivity.
• Small and medium automation systems where integrated I/O simplifies system design.
• Process monitoring systems in water treatment, energy, and chemical facilities.
• Distributed automation networks using EtherNet communication.
Advantages
• Integrated digital inputs and outputs reducing the need for additional I/O modules.
• 512 KB user memory supporting efficient program execution and data processing.
• EtherNet communication capability enabling easy integration with industrial networks.
• Compact packaged controller design simplifying installation and wiring.
• Reliable performance in industrial environments with stable power consumption.
• Efficient real-time automation control for machine and process applications.
• Flexible integration with CompactLogix automation systems.
• Reduced system complexity through built-in I/O and communication features.
