Product Introduction

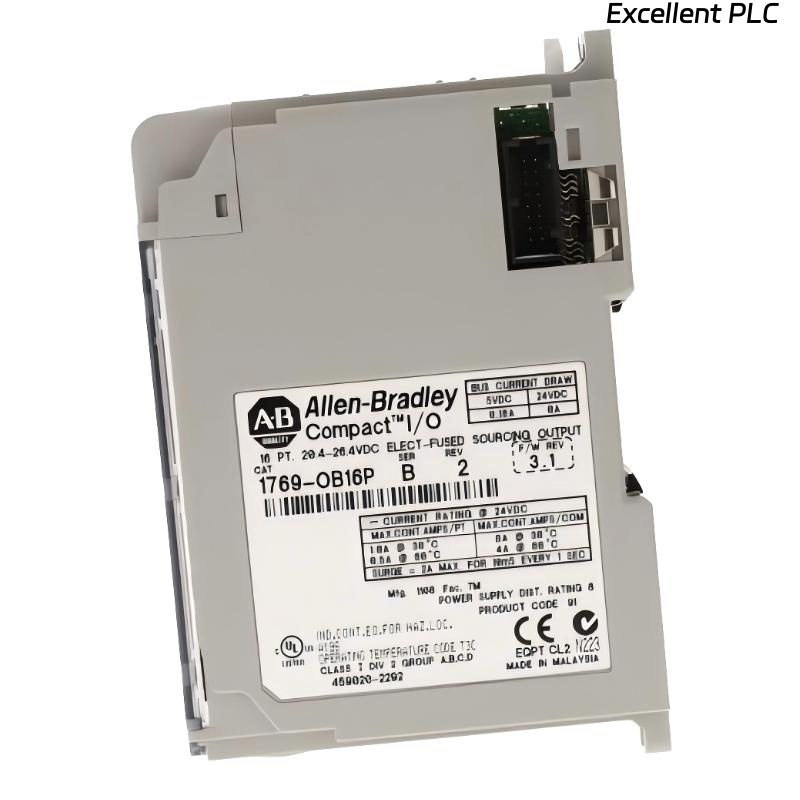

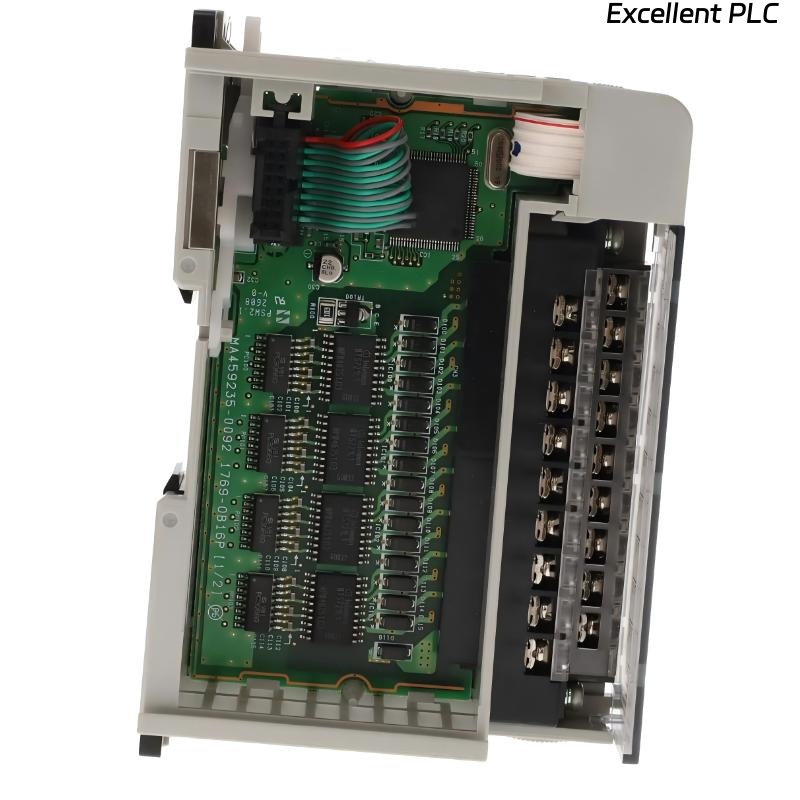

The Allen Bradley 1769-OB16P CompactLogix 16 Point Fused Sourcing Output Module is a discrete DC output module designed for use with the CompactLogix automation platform. It provides 16 sourcing digital outputs, enabling the controller to drive a wide range of field devices such as solenoid valves, relays, indicator lamps, and contactors. The module is widely used in industrial automation systems where reliable and protected DC output control is required.
One of the key features of this module is its integrated fused output protection, which helps safeguard both the module and connected field devices from overcurrent conditions. By incorporating fuse protection directly within the output design, the module enhances system reliability and reduces the need for additional external protection components in the control cabinet.
The module operates with a 24 VDC output voltage, which is the standard voltage level used in most industrial control systems. It draws 160 mA of backplane current at 5.1 V, ensuring efficient operation within CompactLogix I/O architectures. With its compact structure and reliable performance, the 1769-OB16P is well suited for OEM machinery, production equipment, and distributed control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-OB16P |
| Product Type | CompactLogix Fused DC Sourcing Output Module |
| Digital Outputs | 16 |
| Output Groups | 1 |
| Output Voltage | 24 VDC |
| Backplane Current | 160 mA @ 5.1 V |

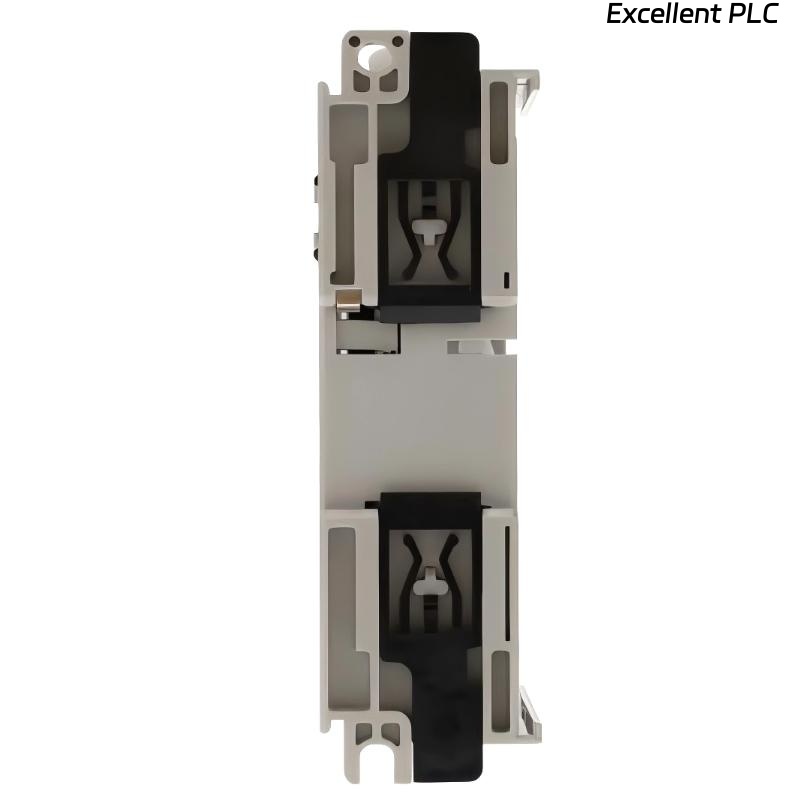

| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.255 kg |
Applications
• Machine automation systems
Controls solenoid valves, relay coils, and contactors in automated production machinery.
• Material handling equipment
Provides reliable output control for conveyors, sorting systems, and actuator devices.
• Packaging and assembly machines
Used for switching pneumatic valves, indicators, and control relays in packaging equipment.
• Industrial control panels
Suitable for modular automation systems requiring protected DC output channels.
• OEM equipment integration
Provides compact and protected output control for custom-built machinery and industrial equipment.
Advantages
• Integrated fuse protection
Built-in fused outputs help protect the module and connected devices from overcurrent conditions.
• High output density
Provides 16 digital outputs within a compact module, reducing cabinet space requirements.
• Reliable 24 VDC operation
Compatible with standard industrial DC power systems commonly used in automation.
• Efficient power consumption
Low backplane current requirement reduces load on the CompactLogix controller system.
• Flexible system integration
Designed to operate seamlessly with other CompactLogix I/O modules in scalable automation architectures.
