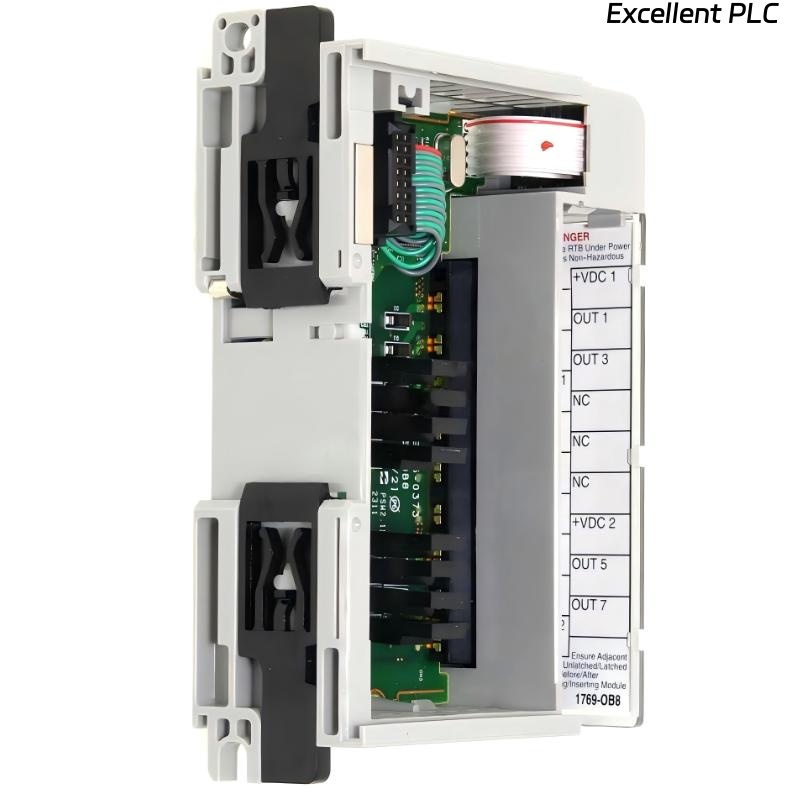

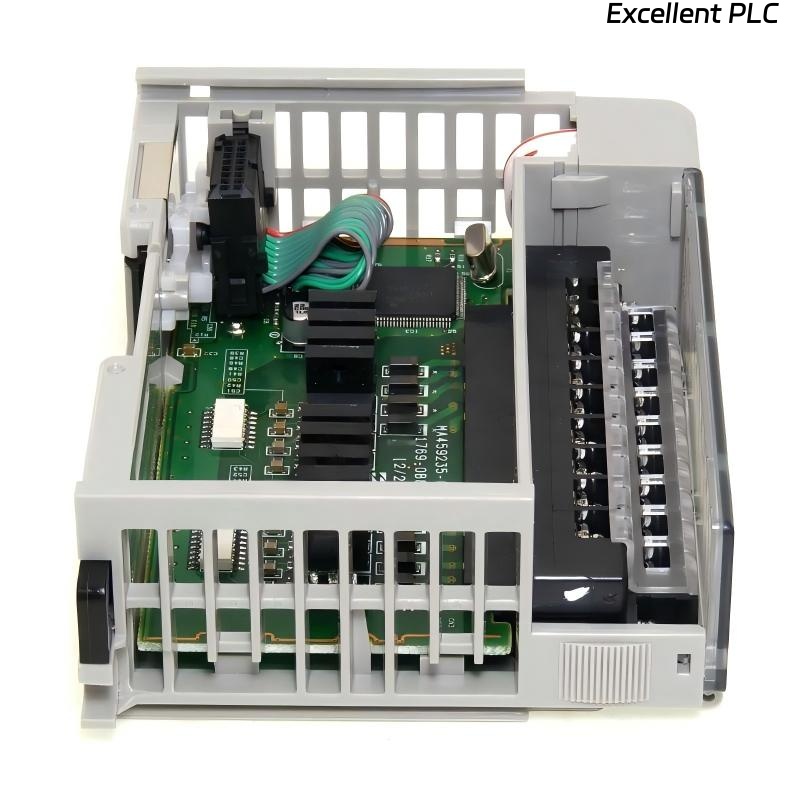

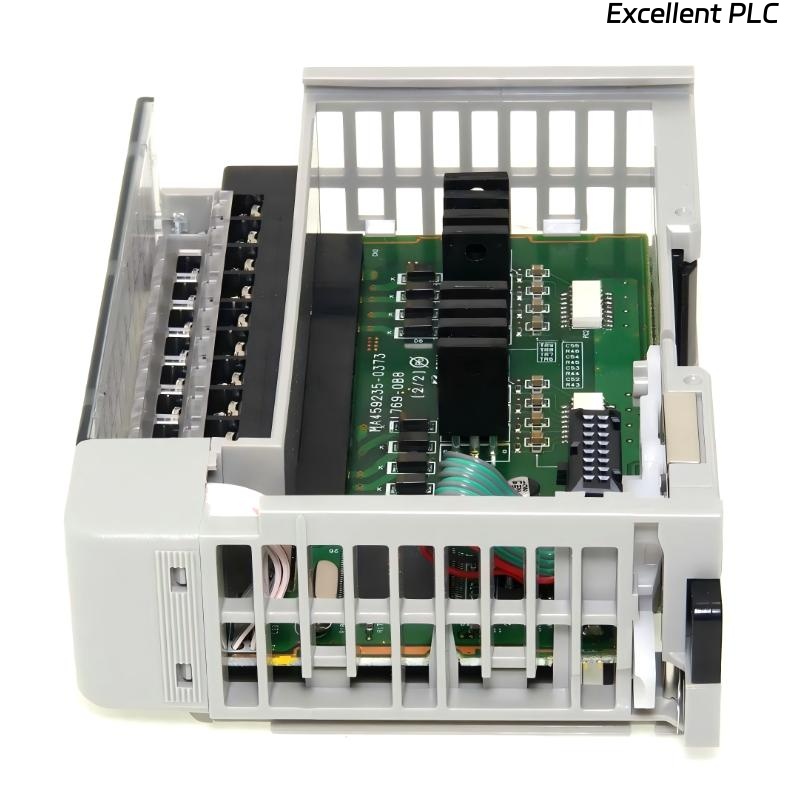

Allen Bradley 1769-OB8 CompactLogix 8 Point High Current Output Module

Product Introduction

The Allen Bradley 1769-OB8 CompactLogix 8 Point High Current Output Module is a discrete digital output module designed for CompactLogix control systems. It provides 8 solid-state DC sourcing outputs, allowing the controller to drive field devices that require higher current capacity. This module is typically used in applications where reliable switching of DC loads is required, such as solenoid valves, relays, and industrial indicators.

Designed to operate with 24 VDC output voltage, the module uses solid-state transistor technology, which ensures fast response times and long operational life compared with mechanical relay outputs. The sourcing output configuration supplies positive voltage to connected devices, making it compatible with many industrial actuators and control components.

The 1769-OB8 module features plug-in connection terminals, simplifying wiring and maintenance in industrial control panels. With its compact design and high current capability, the module is particularly suitable for machine automation systems where space efficiency and dependable output control are important.

---

Product Specifications

---

Applications

• Industrial machine automation
Used to control solenoid valves, relays, and high-current DC actuators within automated machinery.

• Packaging and assembly equipment
Provides reliable output switching for pneumatic control valves and indicator systems.

• Material handling systems
Controls conveyor components, actuators, and other field devices requiring stable DC output signals.

• OEM equipment manufacturing
Suitable for machine builders needing compact modules capable of handling higher current loads.

• Industrial control panels
Used in modular control systems where dependable digital outputs are required.

---

Advantages

• High current output capability
Designed to handle higher load requirements compared with standard digital output modules.

• Solid-state switching technology
Provides fast response time, high reliability, and longer service life due to the absence of mechanical parts.

• Reliable 24 VDC operation
Compatible with standard industrial DC power systems and common field devices.

• Convenient plug-in wiring
Plug-in terminal design simplifies installation, maintenance, and module replacement.

• Compact modular design
Integrates easily with other CompactLogix modules to create scalable automation systems.

FAQ

1. What type of output technology is used in the 1769-OB8 module?
   The module uses solid-state transistor outputs, which provide fast switching performance and reliable digital control without mechanical wear.

2. What output voltage is used by this module?
   The module operates with a standard output voltage of 24 VDC, which is widely used in industrial automation systems.

3. What types of devices can be controlled with this module?
   Typical devices include solenoid valves, relays, indicator lamps, contactors, and other DC-operated actuators used in automation equipment.

4. What is the benefit of using high-current outputs in automation systems?
   High-current outputs allow the module to drive devices that require greater power, reducing the need for additional intermediate relays.

5. How does the DC sourcing output configuration work?
   In a sourcing configuration, the module supplies positive voltage to the connected load while the return path is connected to system common.

6. What advantages do solid-state outputs provide compared to relay outputs?
   Solid-state outputs offer faster switching speeds, longer operational life, reduced maintenance, and improved reliability in high-cycle applications.

7. Is this module suitable for machine automation applications?
   Yes, it is widely used in automated machinery where stable and reliable DC output control is required.

8. Can this module be integrated with other CompactLogix I/O modules?
   Yes, it is designed to operate within the CompactLogix modular I/O system and can be combined with various input and output modules.

9. What types of automation systems commonly use this module?
   It is commonly used in packaging machines, conveyor systems, assembly lines, and other industrial automation equipment.

10. What advantages does the plug-in connection design provide?
    Plug-in terminals allow faster installation and easier maintenance because wiring can remain in place when replacing or servicing the module.
